  • -15%

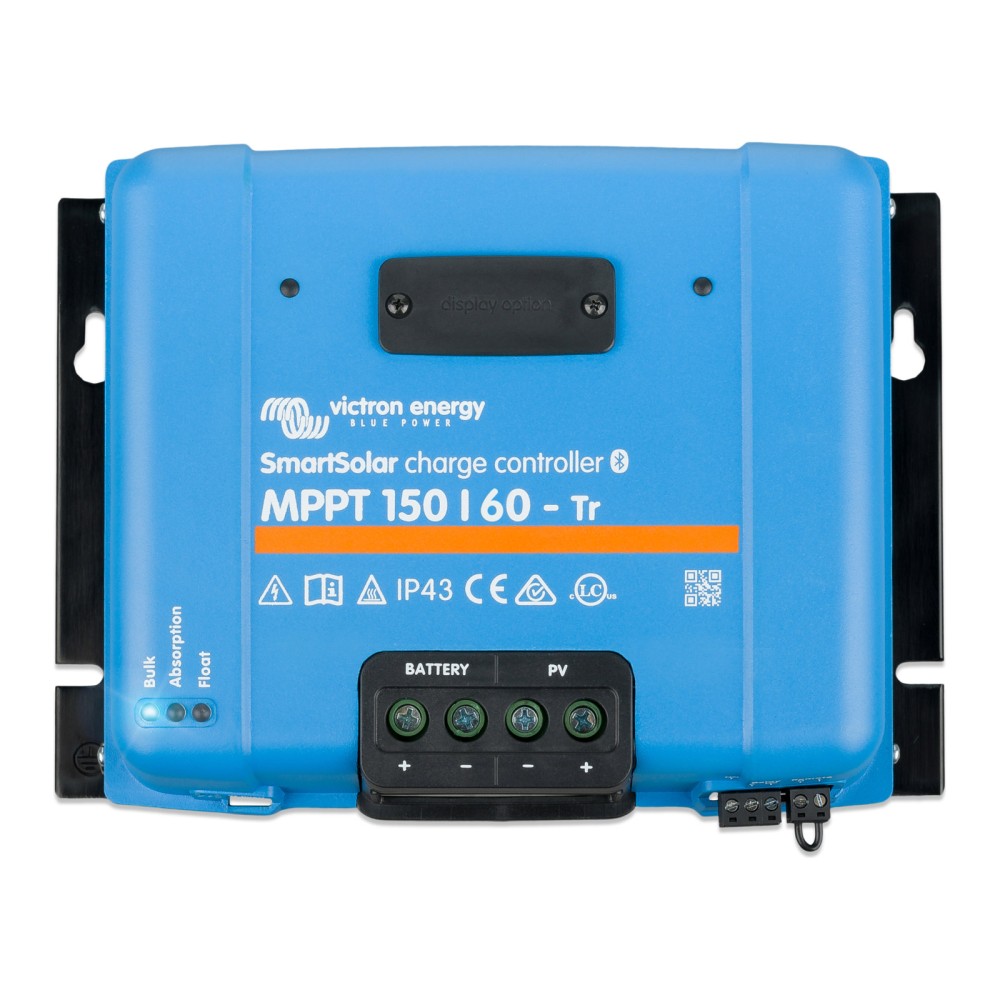

Victron SmartSolar MPPT 150/60-Tr

MPPT solar charge controller Victron SmartSolar MPPT 150/60-Tr

€450 Save €68
€382 Tax included

€318 Tax excluded

The SmartSolar MPPT 150/60-Tr is an MPPT solar charge controller for 12/24/48 V batteries, with a charge current of 60 A, a maximum PV open-circuit voltage of 150 V and a maximum efficiency of 98 %. Communication is via Bluetooth, VE.Direct; the protection rating is IP22 for the connection area and IP43 for the electronic components.

Reference SCC115060211

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

SmartSolar MPPT 150/60-Tr - MPPT solar charge controller for 12/24/48 V batteries

SmartSolar MPPT 150/60-Tr is a solar charge controller with maximum power point tracking (MPPT), for 12/24/48 V batteries, with a charge current of 60 A and a maximum PV open-circuit voltage of 150 V. The built-in Bluetooth and the VE.Direct port allow configuration and monitoring with VictronConnect.

Key features:

  • Battery voltage: 12/24/48 V, automatic selection
  • Charge current: 60 A
  • Maximum PV voltage (Voc): 150 V
  • Maximum PV power: 860 W (12 V), 1720 W (24 V), 3440 W (48 V)
  • Maximum efficiency: 98 %
  • Communication: Bluetooth, VE.Direct
  • Protection rating: IP22 for the connection area, IP43 for the electronic components

MPPT technology continuously monitors the voltage and current of the solar (PV) panels and tracks the maximum power point; the advantage is most noticeable when the sky is partly cloudy and the light intensity changes continuously. The controller can also recharge a deeply discharged battery that is not permanently sulphated or otherwise damaged, and can operate with a battery voltage from 0 V.

With built-in Bluetooth, the controller is configured and monitored remotely via VictronConnect.

Selecting the 36 V battery voltage requires a software tool.

Technical specifications

Battery voltage (automatic selection)12 V / 24 V / 48 V automatic selection (a software tool is required to select 36 V)
Nominal charge current60 A
Nominal PV power (12 V)860 W
Nominal PV power (24 V)1720 W
Nominal PV power (36 V)2580 W
Nominal PV power (48 V)3440 W
Absorption charge voltage14.4 V / 28.8 V / 57.6 V (adjustable)
Float charge voltage13.8 V / 27.6 V / 55.2 V (adjustable)
Charging algorithmMulti-stage adaptive (adjustable)
Temperature sensorInternal
Temperature compensation (12 V)-16 mV/°C
Temperature compensation (24 V)-32 mV/°C
Temperature compensation (48 V)-64 mV/°C
Maximum efficiency98 %
Self-consumptionLess than 35 mA @ 12 V / 20 mA @ 48 V
Maximum PV open-circuit voltage150 V
PV start-up voltageThe PV voltage must exceed Vbat + 5 V for the controller to start. After that, the minimum PV voltage is Vbat + 1 V
Number of MPPT trackers1
Maximum PV short-circuit current50 A
ProtectionsPV reverse polarity, Output short circuit, Overtemperature
Operating temperature range-30 … 60 °C
Maximum humidity95 %
Maximum altitude5000
Environmental conditionsIndoor, unconditioned
Pollution degreePD3
BluetoothYes
Data communicationBluetooth, VE.Direct
Remote on/off terminalYes
Programmable relayAC ratings: 230 V / 4 A, DC ratings: 4 A up to 35 VDC and 1 A up to 60 VDC
Maximum number of units in synchronised parallel operation (Bluetooth)10
Battery connection terminalsScrew terminals 35 mm² (2 AWG)
PV connection terminalsScrew terminals 35 mm² (2 AWG)
ColourBlue (RAL 5012)
Protection ratingIP22 (connection area), IP43 (electronic components)
Weight3 kg
Height185 mm
Width250 mm
Depth95 mm
SafetyCSA C22.2, EN-IEC 62109-1, UL 1741
Data retention period46 d
Stored dataBattery voltage, Battery current, Battery temperature, PV voltage, PV current, Load output current

Data sheet

Reference
SCC115060211
Brand
Victron Energy
Product type
MPPT controller
Maximum efficiency
98 %
Battery voltage
12 V
24 V
48 V
Charge current class
41-70 A
Max. charge current
60 A
Absorption charge voltage
14.4/28.8/57.6 V
Float charge voltage
13.8/27.6/55.2 V
Charge algorithm
Multi-stage adaptive (adjustable)
Max. PV voltage (Voc)
150 V
Max. PV short-circuit current
50 A
Max. PV power (by battery voltage)
860 W (12 V), 1720 W (24 V), 2580 W (36 V), 3440 W (48 V)
Bluetooth (app)
Yes
Communication interfaces
Bluetooth
VE.Direct
Programmable relay
Yes
Protections
Output short-circuit, overtemperature, PV reverse polarity
Dimensions (H x W x D)
185 x 250 x 95 mm
Weight
3 kg
Ingress protection (IP)
IP22 (connection area), IP43 (electronics)
Operating temperature
-30 ... 60 °C
Max. relative humidity
95 %
Colour
Blue
Standards and compliance
CSA C22.2, EN-IEC 62109-1, UL 1741

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
