€713 Tax excluded

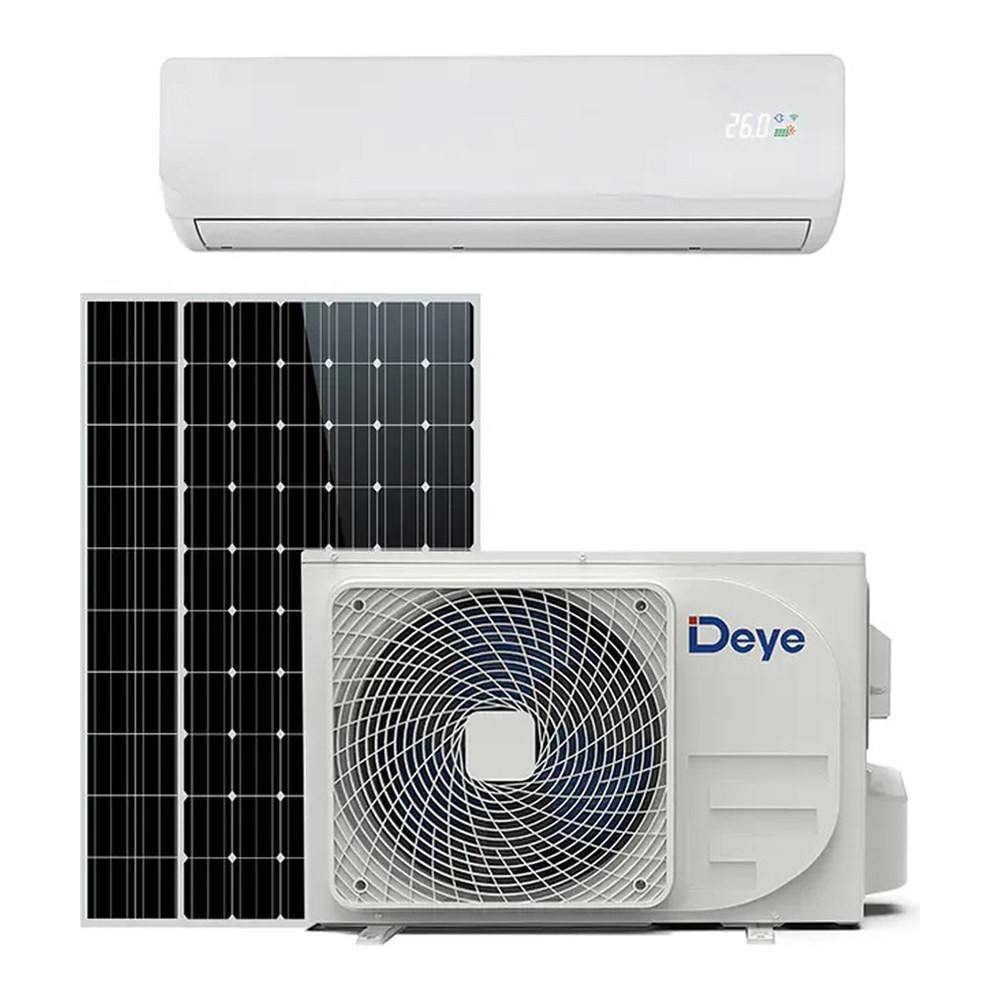

Deye DGWA2-ACDC-12K is a wall-mounted hybrid AC/DC mono split air conditioner of 12,000 BTU, with a cooling capacity of 3510 W and a heating capacity of 4100 W, for rooms of 12-20 m2. It runs on solar panels (80-380 V DC) or on the grid, needs no batteries, and has a DC inverter compressor, a built-in solar MPPT and Wi-Fi control.
Deye DGWA2-ACDC-12K is a wall-mounted hybrid AC/DC mono split air conditioner of 12,000 BTU that runs directly on solar panel energy (80-380 V DC) and switches automatically to the AC grid when there is not enough sun. It has a DC inverter compressor, a solar MPPT built into the outdoor unit and Wi-Fi control.
The unit uses hybrid AC/DC technology: when the solar panels produce enough energy the compressor is powered directly from direct current, and when solar energy drops the unit switches automatically to the AC grid. It needs no batteries; the solar MPPT and the inverter are built into the outdoor unit. 3-4 panels of 330 W connected in series are recommended.
The DC inverter compressor adjusts its speed to demand, for precise temperature control and low consumption, with an electronic expansion valve. The unit has an intelligent display, compressor delayed-restart protection and Wi-Fi control through a smartphone app. It is a split system of two units, indoor and outdoor, connected by refrigerant pipes.
| Product type | Air conditioner |
|---|---|
| Power supply | hybrid AC/DC: solar panels and grid |
| AC supply (grid) | 1 phase, 208-240 V, 50-60 Hz |
| DC supply (PV panels) | 80-380 V DC, max. 10 A |
| Recommended solar panels | 3-4 panels of 330 W connected in series |
| Recommended area | 12-20 m² |
| Cooling capacity | 3510 W (12000 BTU) |
| Cooling power input | 940 W |
| Heating capacity | 4100 W (14000 BTU) |
| Heating power input | 1170 W |
| EER (cooling) | 3.75 W/W (12.75 BTU/W) |
| COP (heating) | 3.50 W/W (11.95 BTU/W) |
| Dehumidification capacity | 1.3 L/h |
| Compressor | 2 x rotary, inverter technology |
| Refrigerant | R410A |
| Indoor unit noise level | ≤ 42.5 dB(A) |
| Outdoor unit noise level | ≤ 52 dB(A) |
| Indoor unit dimensions (W x H x D) | 205 x 840 x 295 mm |
| Indoor unit weight | 9.0 kg |
| Outdoor unit dimensions (W x H x D) | 564 x 802 x 323 mm |
| Outdoor unit weight | 33.5 kg |
| Refrigerant pipes (gas / liquid) | 3/8 inch / 1/4 inch |
| Max. pipe length | 15 m |
| Max. level difference | 8 m |
| Control | Wi-Fi, smartphone app |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the manufacturer’s datasheet.
