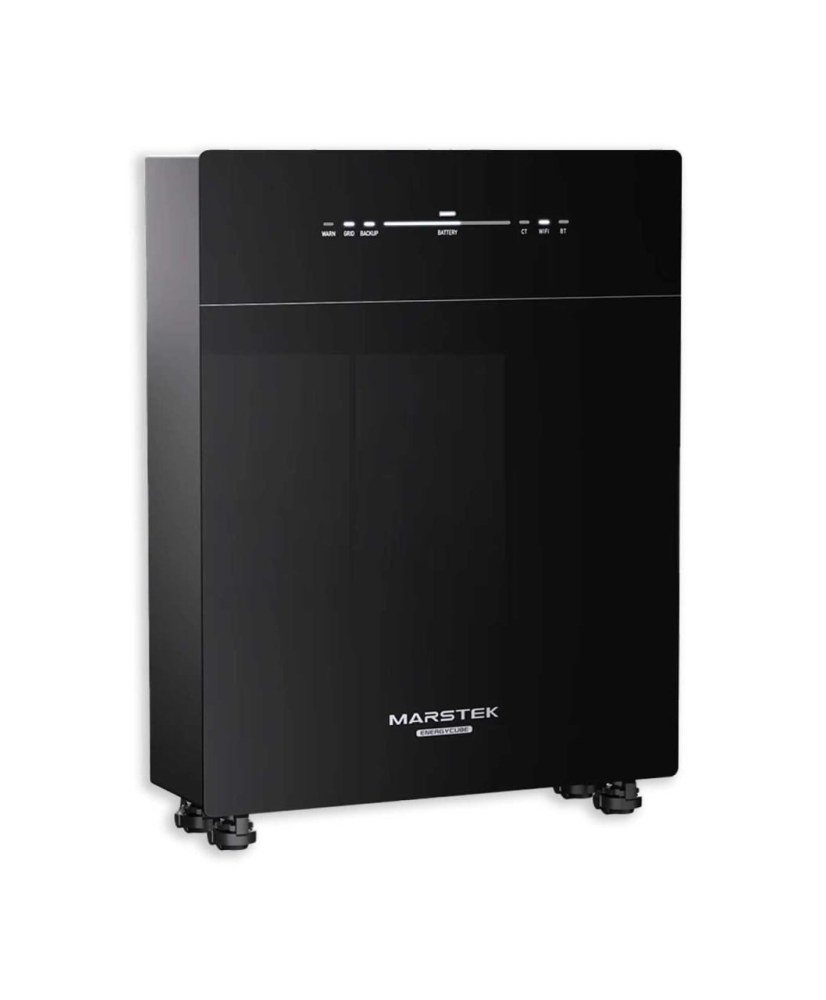

Marstek Venus E 3.0 battery - 5.12kW

Name: Marstek Venus E 3.0 battery - 5.12kW
Brand: kitoffgrid.com powered by EVSHOP
SKU: MST-BIE5-2500
Price: 1300 EUR
Availability: PreOrder

€1,300.00

Tax excluded

AC type LiFePO4 battery pack, ready to use immediately. Easily connects to the socket and is compatible with any photovoltaic installation, including Huawei on-grid equipment. Ideal for increasing your own consumption and for backup power in case of power outages.

Marstek Venus E 3.0 - Battery 5.12 kWh

Main features

Compatible with all Huawei on-grid equipment
Compatible with any photovoltaic installation
Plug & Play - simple installation, no complicated configurations
2.5 kW backup function in case of power outage
100% self-consumption - no injection into the network
Safe and long-lasting LiFePO4 battery
Over 6000 charge/discharge cycles
IP65 protection rating - can be mounted even outdoors
10 year warranty

Technical specifications

Capacity	5120Wh (5.12kWh)
Battery Type	LiFePO4
Nominal voltage	51.2V (16S)
Number of cycles	over 6000 (at 25°C)
Depth of Discharge (DoD)	90%
On-grid output power	2.5 kVA / 800 VA
Backup power	2.5 kVA (max. 3.5 kVA, 10 s)
Mains voltage	230V, 50Hz
Mains voltage range	187V - 253V
Maximum yield	over 93.5%
Degree of protection	IP65
Operating temperature	-20°C - +55°C
Cooling	natural convection (without fan)
On-grid connection	three-wire household plug (Euro16A)
Backup connection	three-prong socket (Euro)
Communication	LAN / Wi-Fi / Bluetooth / RS485
display	light
size	480 x 153 x 624 mm
Weight	58kg (±0.5kg)
