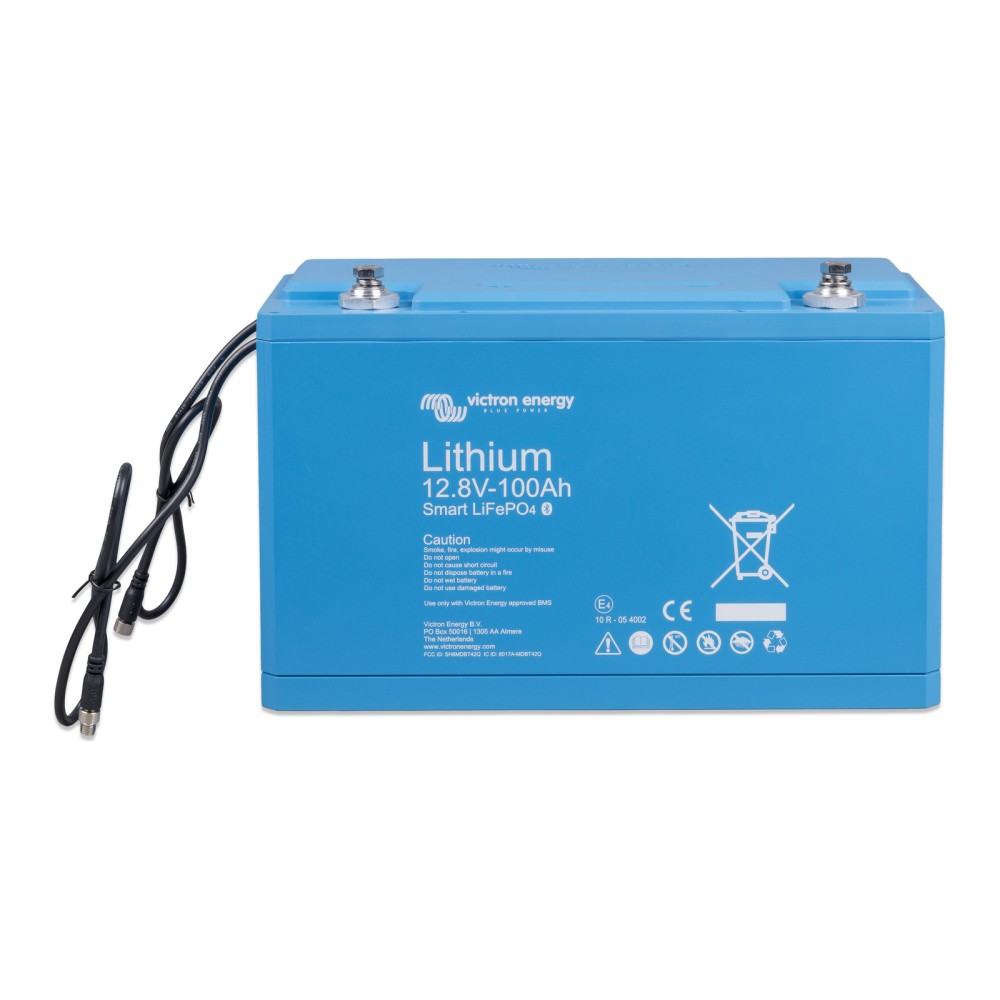

LiFePO4 Lithium Battery 12.8V 100Ah - Smart
  • LiFePO4 Lithium Battery 12.8V 100Ah - Smart
  • LiFePO4 Lithium Battery 12.8V 100Ah - Smart
  • LiFePO4 Lithium Battery 12.8V 100Ah - Smart

LiFePO4 Lithium Battery 12.8V 100Ah - Smart

12.8 V
€786 Save €118
€668 Tax included

€557 Tax excluded

LiFePO4 batteries are the safest lithium ion batteries on the market. The nominal voltage of a LiFePO4 cell is 3.2V, unlike 2V for acid batteries, so a 12.8V battery contains 4 cells connected in series, and a 25.6V battery contains 8 cells connected in series.

Reference BAT512110610

Victron Energy commercial warranty: 3 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

It is not necessary for a LiFePO4 battery to be fully charged. The lifetime of such a battery should be improved in the case of a partial charge rather than a full one, this being the great advantage over acid batteries.

Other advantages are the large temperature ranges in which it can work, excellent performance in the number of cycles, low internal resistance and high efficiency, which is 92%.

Cell voltages, temperature, and error status can be monitored via Bluetooth, which is very useful for locating a potential problem, such as cell imbalance.

Data sheet

Reference
BAT512110610
Product type
Battery
Battery chemistry
LiFePO4 (lithium iron phosphate)
Battery voltage
12 V
Nominal voltage (exact)
12.8 V
Nominal capacity
100 Ah
Capacity class
1-2.5 kWh
Nominal energy
1.28 kWh
Cycle life (cycles at 80 % DoD)
2500 cycles
Max. continuous discharge current
200 A
Built-in BMS
No
Max. charge current
200 A
Communication interfaces
Bluetooth
Dimensions (H x W x D)
197 x 321 x 152 mm
Weight
14 kg
Ingress protection (IP)
IP22
Max. relative humidity
95 %
Colour
Blue
Standards and compliance
EN-IEC 60335-1, ECE R10-6, EN-IEC 61000-6-3, EN 55014-1

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
