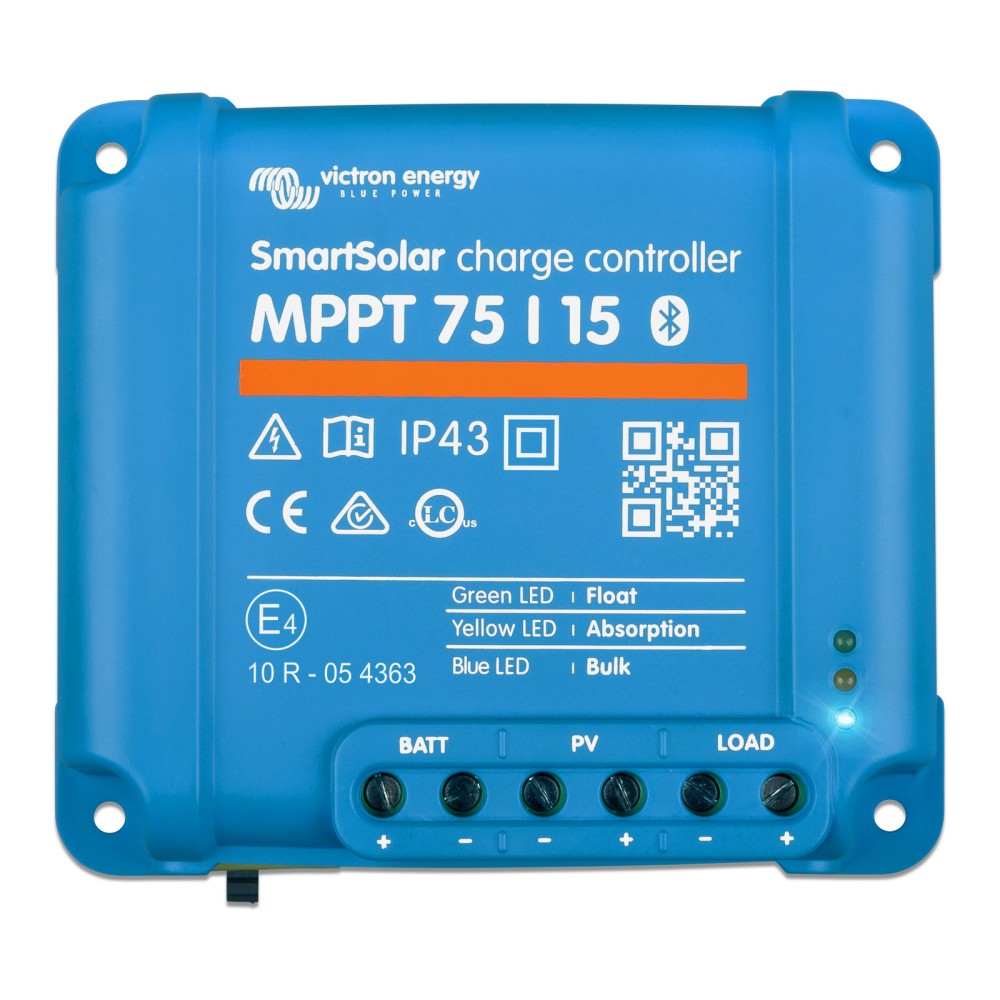

MPPT solar charge controller Victron Energy SmartSolar 75/15, 15 A

MPPT solar charge controller Victron Energy SmartSolar 75/15, 15 A

€81 Save €13
€68 Tax included

€57 Tax excluded

SmartSolar MPPT 75/15 is an MPPT solar charge controller for 12 or 24 V batteries, with a charge current of 15 A, a maximum PV open-circuit voltage of 75 V and a maximum efficiency of 98 %. The built-in Bluetooth and the VE.Direct port allow configuration and monitoring via VictronConnect.

Reference SCC075015060R

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

SmartSolar MPPT 75/15 - MPPT solar charge controller for 12/24 V batteries

SmartSolar MPPT 75/15 is a solar charge controller with maximum power point tracking (MPPT) for 12 or 24 V batteries, with a charge current of 15 A and a maximum PV open-circuit voltage of 75 V. The built-in Bluetooth and the VE.Direct port allow configuration and monitoring with VictronConnect.

Main features:

  • Battery voltage: 12 V or 24 V, automatic selection
  • Charge current: 15 A
  • Maximum PV voltage (Voc): 75 V
  • Maximum PV power: 220 W (12 V), 440 W (24 V)
  • Maximum efficiency: 98 %
  • Communication: Built-in Bluetooth, VE.Direct
  • Protection rating: IP43 (electronic components), IP22 (connection area)

MPPT technology constantly monitors the voltage and current of the solar (PV) panels and tracks the maximum power point; the benefit is most visible when the sky is partly cloudy and the light intensity changes continuously. The controller can also recharge a deeply discharged battery that is not permanently sulphated or otherwise damaged, and can operate from a battery voltage of 0 V.

With built-in Bluetooth, the controller can be configured and monitored remotely with a smartphone or another device via VictronConnect. If the installation is connected to the internet through a GX device, the Victron Remote Management (VRM) portal provides access to all data; for locations without an internet connection, the GlobalLink 520 device can be used. VictronConnect and VRM are free of charge.

The load output prevents excessive discharge of the batteries: the voltage at which the loads are disconnected is configurable. The BatteryLife algorithm attempts a full recharge every day and, if this does not succeed in poor weather, gradually raises the disconnect voltage to protect the battery and extend its service life.

Technical specifications

Rated charge current15 A
Nominal PV power (12 V)220 W
Nominal PV power (24 V)440 W
Absorption charge voltage14.4V / 28.8V (adjustable)
Float charge voltage13.8V / 27.6V (adjustable)
Charge algorithmMulti-stage adaptive (adjustable)
Temperature sensorOptional (Smart Battery Sense)
Temperature compensation (12 V)-16 mV/°C
Temperature compensation (24 V)-32 mV/°C
Maximum efficiency98 %
Self-consumption (load output on)12V: 19mA / 24V: 16mA
Self-consumption (load output off)12V: 10mA / 24 V: 8mA
Maximum PV open-circuit voltage75 V
PV start-up voltagePV voltage must exceed Vbat + 5V for the controller to start. After that, the minimum PV voltage is Vbat + 1V
Number of MPPT trackers1
Maximum PV short-circuit current15 A
Maximum continuous load current (12 V)15 A
Maximum continuous load current (24 V)15 A
Low-voltage load disconnect11.1V / 22.2V or 11.8V / 23.6V or BatteryLife algorithm
Load reconnect after low voltage13.1V / 26.2V or 14V / 28V or BatteryLife algorithm
ProtectionsAutomatic load disconnect, over-temperature, output short circuit, PV reverse polarity
Operating temperature range-30 … 60 °C
Maximum humidity95 %
BluetoothYes
Data communicationBluetooth, VE.Direct
Battery connection terminalsScrew terminals 6 mm² (10 AWG)
PV connection terminalsScrew terminals 6 mm² (10 AWG)
Load connection terminalsScrew terminals 6 mm² (10 AWG)
ColourBlue (RAL 5012)
Protection ratingIP43 (electronic components)
Weight0.5 kg
Height100 mm
Width113 mm
Depth40 mm
SafetyUL 1741, CSA C22.2, EN-IEC 62109-1
Data retention period46 days
Stored dataBattery voltage, battery current, battery temperature, load output current, PV voltage, PV current

Data sheet

Reference
SCC075015060R
Brand
Victron Energy
Product type
MPPT controller
Maximum efficiency
98 %
Battery voltage
12 V
24 V
Charge current class
11-20 A
Max. charge current
15 A
Absorption charge voltage
14.4/28.8 V
Float charge voltage
13.8/27.6 V
Charge algorithm
Multi-stage adaptive (adjustable)
Max. PV voltage (Voc)
75 V
Max. PV short-circuit current
15 A
Max. PV power (by battery voltage)
220 W (12 V), 440 W (24 V)
Bluetooth (app)
Yes
Communication interfaces
Bluetooth
VE.Direct
Protections
Output short-circuit, overtemperature, PV reverse polarity, automatic load disconnect
Dimensions (H x W x D)
100 x 113 x 40 mm
Weight
0.5 kg
Ingress protection (IP)
IP22 (connection area), IP43 (electronics)
Operating temperature
-30 ... 60 °C
Max. relative humidity
95 %
Colour
Blue
Standards and compliance
UL 1741, CSA C22.2, EN-IEC 62109-1

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
