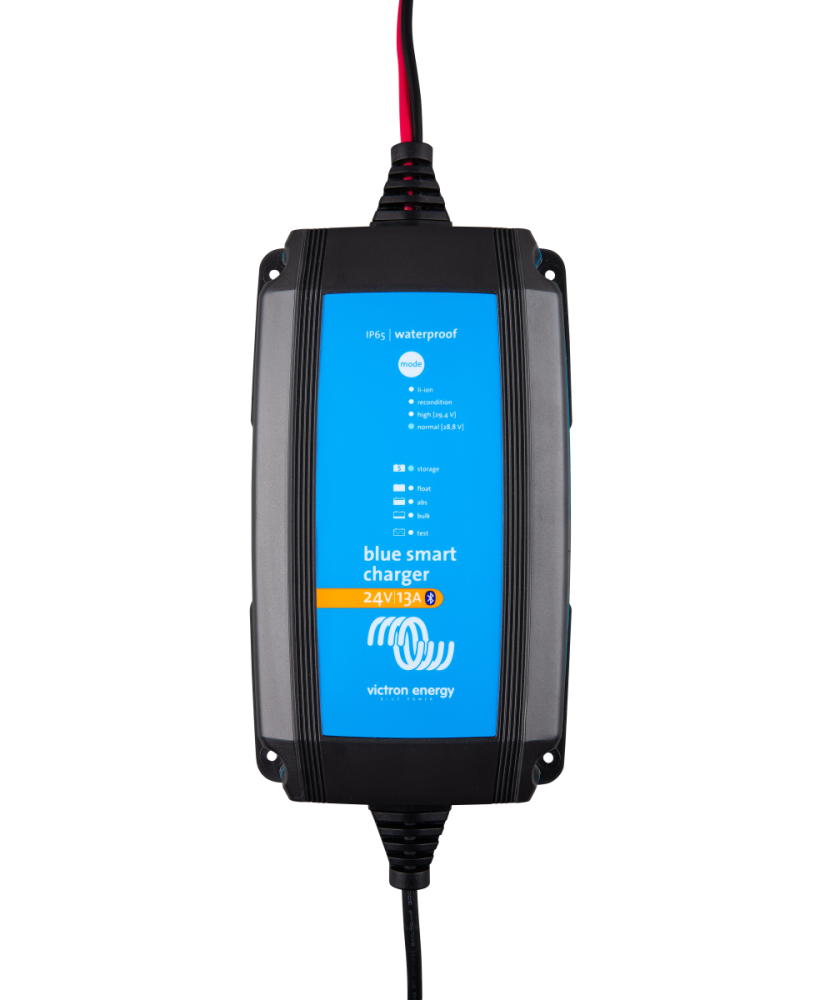

Blue Smart IP65 24/13(1) 230V CEE 7/17 - Smart battery charger 24V
Blue Smart IP65 24/13(1) 230V CEE 7/17 is a 24 V smart battery charger with built-in Bluetooth and an IP65 enclosure protected against dust and water spray. It delivers 13 A, with a 4 A low-current mode, and is suited to workshop use and to vehicles such as (classic) cars, motorbikes, boats and camper vans. It connects to the mains via a cable with a CEE 7/17 plug.
Main features:
- Battery voltage: 24 V
- Charge current: 13 A (low mode 4 A)
- Charge algorithm: adaptive 7-stage, lithium compatible, recovers batteries from 0 V
- Efficiency: 95 %
- Connectivity: built-in Bluetooth, VictronConnect app
- Housing and protections: IP65, fanless, protected against reverse polarity, short circuit, overheating
The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
New: IP65 6V/12V 1.1A
New: IP65 12/5 replaced by smaller equivalent model: IP65s 12/5
Technical specifications
| Nominal battery voltage | 24 V |
|---|
| Nominal charge current | 13 A |
|---|
| Charge current (low mode) | 4 A |
|---|
| AC input voltage range | 180 … 265 VAC |
|---|
| AC input voltage (class) | 230 V |
|---|
| AC input frequency range | 45 … 65 Hz |
|---|
| Number of charge outputs | 1 |
|---|
| Efficiency | 95 % |
|---|
| Standby power consumption | 0.5 W |
|---|
| Absorption charge voltage | Normal: 28.8V High: 29.4V Lithium: 28.4V |
|---|
| Float charge voltage | Normal: 27.6V High: 27.6V Li-ion: 27.0V |
|---|
| Storage charge voltage | Normal: 26.4V High: 26.4V Li-ion: 27.0V |
|---|
| Charge algorithm | Adaptive, 7-stage |
|---|
| Lithium compatible | Yes |
|---|
| Temperature compensation | -32 mV/°C |
|---|
| Back current drain | 1 mA |
|---|
| Back current drain per month | 0.7 Ah/mo |
|---|
| Power supply mode | Yes |
|---|
| Programmable | Yes |
|---|
| Bluetooth | Yes, -4dBm, 2402 - 2480 MHz |
|---|
| Protections | Battery reverse polarity, Output short-circuit, Over temperature |
|---|
| Operating temperature range | -40 … 60 °C |
|---|
| Full rated output up to | 30 °C |
|---|
| Maximum humidity | 95 % |
|---|
| AC connection terminals | Cable of 1.5 meter with CEE 7/17 plug |
|---|
| Battery connection terminals | Red and black 1.5 meter cable with plugable M8 eyelets or clamps |
|---|
| Protection category | IP65 |
|---|
| Weight | 1.9 kg |
|---|
| Height | 75 mm |
|---|
| Width | 140 mm |
|---|
| Depth | 240 mm |
|---|
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29 |
|---|
| Emission | EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3 |
|---|
| Immunity | EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
|---|
