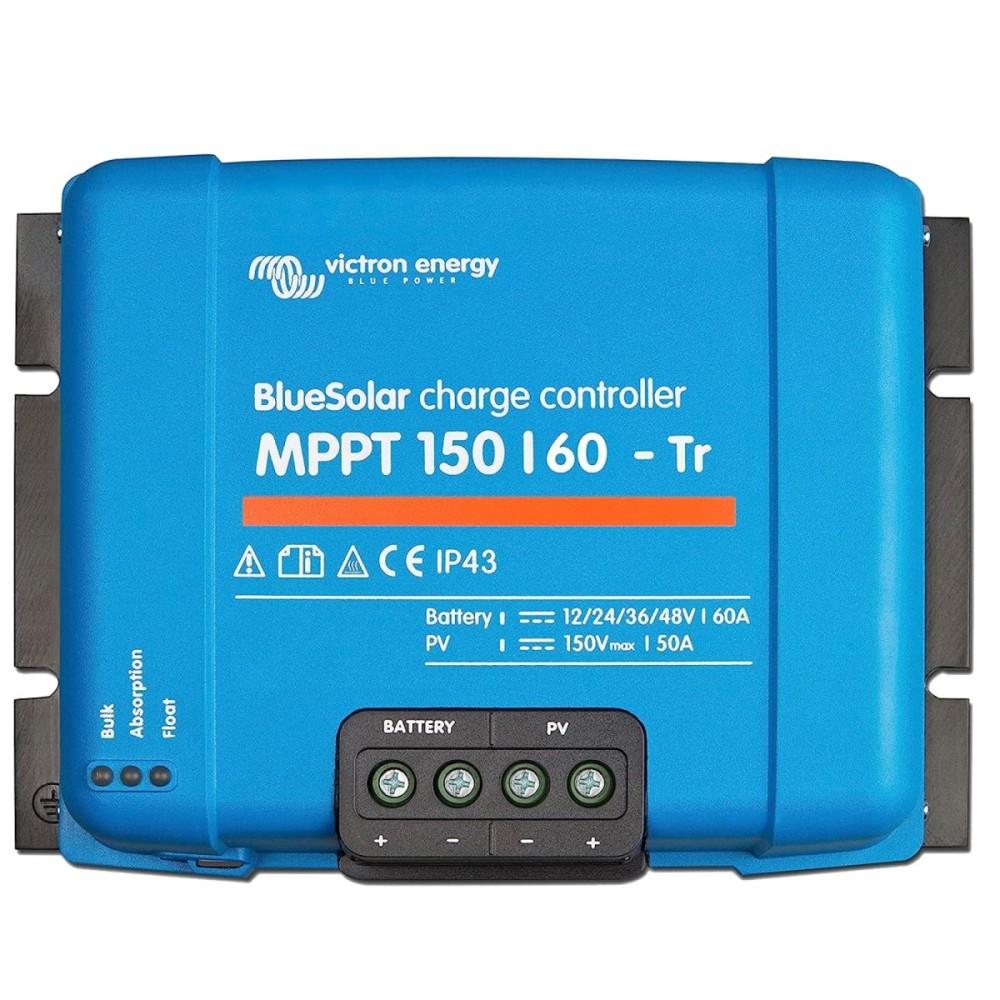

BlueSolar MPPT 150/60-Tr Victron Energy
  • BlueSolar MPPT 150/60-Tr Victron Energy
  • BlueSolar MPPT 150/60-Tr Victron Energy
  • BlueSolar MPPT 150/60-Tr Victron Energy
  • BlueSolar MPPT 150/60-Tr Victron Energy
  • BlueSolar MPPT 150/60-Tr Victron Energy

MPPT solar charge controller Victron BlueSolar MPPT 150/60-Tr, 60 A

€408 Save €62
€346 Tax included

€288 Tax excluded

BlueSolar MPPT 150/60-Tr is an MPPT solar charge controller for 12, 24 or 48V batteries with automatic selection, which maximises the energy harvested from the panels and extends battery life. It accepts up to 150 V open-circuit, charges at 60 A and has 35 mm² screw terminals and a VE.Direct port. Advanced maximum power point detection also works under partial shading.

Reference SCC010060200

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

BlueSolar MPPT 150/60-Tr - MPPT solar charge controller 12/24/48V, 60A

BlueSolar MPPT 150/60-Tr is an MPPT solar charge controller for 12, 24 or 48V batteries with automatic selection, which maximises the energy harvested from the panels and extends battery life. It accepts up to 150 V open-circuit, charges at 60 A and has 35 mm² screw terminals and a VE.Direct port. Advanced maximum power point detection also works under partial shading.

Key features:

  • Max. PV voltage: 150 V
  • Charging current: 60 A
  • Battery voltage: 12 / 24 / 48 V automatic, 36 V via software
  • Rated PV power: 3440 W at 48 V
  • Charging algorithms: 8 presets via rotary switch or fully programmable
  • Communication: VE.Direct, optional Bluetooth via the VE.Direct Bluetooth Smart dongle

A solar charge controller collects energy from the solar panels and stores it in your batteries. Using the latest and fastest technology, BlueSolar maximises this energy harvest and manages it intelligently to achieve a full charge in the shortest possible time. BlueSolar keeps the batteries healthy and extends battery life.

Technical specifications

Battery voltage (automatic selection)12V / 24V / 48V automatic selection (a software tool is required to select 36V)
Rated charging current60 A
Rated PV power (12 V)860 W
Rated PV power (24 V)1720 W
Rated PV power (48 V)3440 W
Charge voltage in absorption14.4V / 28.8V / 57.6V (adjustable)
Float charge voltage13.8V / 27.6V / 55.2V (adjustable)
Charging algorithmAdaptive multi-stage (adjustable)
Temperature sensorInternal
Temperature compensation (12 V)-16 mV/°C
Temperature compensation (24 V)-32 mV/°C
Temperature compensation (48 V)-64 mV/°C
Maximum efficiency98 %
Self-consumption10mA
Maximum PV open-circuit voltage150 V
PV start-up voltageThe PV voltage must exceed Vbat + 5V for the controller to start. After that, the minimum PV voltage is Vbat + 1V
Number of MPPT trackers1
Maximum PV short-circuit current50 A
Low-voltage load disconnect11.1V / 22.2V or 11.8V / 23.6V or Battery Life algorithm
Load reconnect after low voltage13.1V / 26.2V / 52.4V or 14V / 28V / 56V or Battery Life algorithm
ProtectionsOutput short circuit, over-temperature, PV reverse polarity
Operating temperature range-30 … 60 °C
Maximum humidity95 %
Data communicationVE.Direct
Battery connection terminalsScrew terminals 35 mm² (2 AWG)
PV connection terminalsScrew terminals 35 mm² (2 AWG)
ColourBlue (RAL 5012)
Ingress protectionIP43 (electronic components), IP22 (connection area)
Weight3 kg
Height185 mm
Width250 mm
Depth95 mm
SafetyCSA C22.2, EN-IEC 62109-1, UL 1741
Data retention period46 d

Data sheet

Reference
SCC010060200
EAN13
8719076025474
Brand
Victron Energy
Product type
MPPT controller
Maximum efficiency
98 %
Battery voltage
12 V
24 V
48 V
Charge current class
41-70 A
Max. charge current
60 A
Absorption charge voltage
14.4/28.8/57.6 V
Float charge voltage
13.8/27.6/55.2 V
Charge algorithm
Multi-stage adaptive (adjustable)
Max. PV voltage (Voc)
150 V
Max. PV short-circuit current
50 A
Max. PV power (by battery voltage)
860 W (12 V), 1720 W (24 V), 3440 W (48 V)
Bluetooth (app)
No
Communication interfaces
VE.Direct
Protections
Output short-circuit, overtemperature, PV reverse polarity
Dimensions (H x W x D)
185 x 250 x 95 mm
Weight
3 kg
Ingress protection (IP)
IP43 (electronics), IP22 (connection area)
Operating temperature
-30 ... 60 °C
Max. relative humidity
95 %
Colour
Blue
Standards and compliance
CSA C22.2, EN-IEC 62109-1, UL 1741

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
