  • -15%

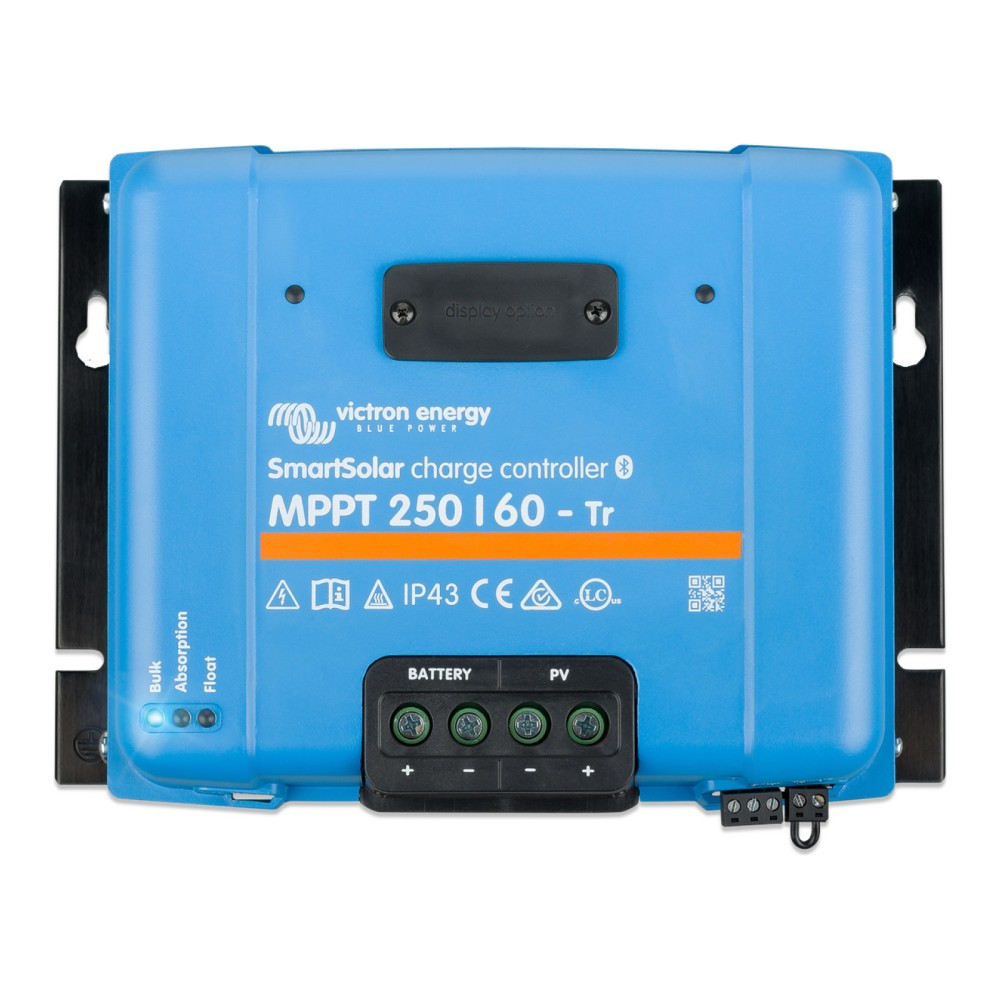

Victron SmartSolar MPPT 250/60-Tr

MPPT solar charge controller Victron SmartSolar MPPT 250/60-Tr, 60 A

€531 Save €80
€451 Tax included

€376 Tax excluded

SmartSolar MPPT 250/60-Tr is an MPPT solar charge controller for 12/24/48 V batteries, with a charge current of 60 A, a maximum PV open-circuit voltage of 250 V and a maximum efficiency of 99 %. Communication is via Bluetooth, VE.Direct, and the protection rating is IP22 (connection area), IP43 (electronic components).

Reference SCC125060221

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

SmartSolar MPPT 250/60-Tr - MPPT solar charge controller for 12/24/48 V batteries

SmartSolar MPPT 250/60-Tr is a solar charge controller with maximum power point tracking (MPPT) for 12/24/48 V batteries, with a charge current of 60 A and a maximum PV open-circuit voltage of 250 V. The built-in Bluetooth and the VE.Direct port allow configuration and monitoring with VictronConnect.

Main features:

  • Battery voltage: 12/24/48 V, automatic selection
  • Charge current: 60 A
  • Maximum PV voltage (Voc): 250 V
  • Maximum PV power: 860 W (12 V), 1720 W (24 V), 3440 W (48 V)
  • Maximum efficiency: 99 %
  • Communication: Bluetooth, VE.Direct
  • Protection rating: IP22 (connection area), IP43 (electronic components)

MPPT technology constantly monitors the voltage and current of the solar (PV) panels and tracks the maximum power point; the benefit is most visible when the sky is partly cloudy and the light intensity changes continuously. The controller can also recharge a deeply discharged battery that is not permanently sulphated or otherwise damaged, and can operate from a battery voltage of 0 V.

With built-in Bluetooth, the controller can be configured and monitored remotely with a smartphone or another device via VictronConnect. If the installation is connected to the internet through a GX device, the Victron Remote Management (VRM) portal provides access to all data; for locations without an internet connection, the GlobalLink 520 device can be used. VictronConnect and VRM are free of charge.

Extended electronic protection: over-temperature protection with power reduction when the temperature is high, protection against PV short circuit and PV reverse polarity, as well as protection against PV reverse current. The optional SmartSolar Control Display connects to the front of the controller and allows checking the status of the charger and the battery, with real-time monitoring and configuration. Selecting a battery voltage of 36 V requires a software tool.

Technical specifications

Battery voltage (automatic selection)12V / 24V / 48V automatic selection (a software tool is required to select 36V)
Rated charge current60 A
Nominal PV power (12 V)860 W
Nominal PV power (24 V)1720 W
Nominal PV power (36 V)2580 W
Nominal PV power (48 V)3440 W
Absorption charge voltage14.4V / 28.8V / 57.6V (adjustable)
Float charge voltage13.8V / 27.6V / 55.2V (adjustable)
Charge algorithmMulti-stage adaptive (adjustable)
Temperature sensorInternal
Temperature compensation (12 V)-16 mV/°C
Temperature compensation (24 V)-32 mV/°C
Temperature compensation (48 V)-64 mV/°C
Maximum efficiency99 %
Self-consumptionLess than 35mA @ 12V / 20mA @ 48V
Maximum PV open-circuit voltage250 V
PV start-up voltagePV voltage must exceed Vbat + 5V for the controller to start. After that, the minimum PV voltage is Vbat + 1V
Number of MPPT trackers1
Maximum PV short-circuit current35 A
ProtectionsOver-temperature, output short circuit, PV reverse polarity
Operating temperature range-30 … 60 °C
Maximum humidity95 %
Maximum altitude5000
Environmental conditionsIndoor, unconditioned
Pollution degreePD3
BluetoothYes
Data communicationBluetooth, VE.Direct
Remote on/off terminalYes
Programmable relayDPST, AC ratings: 240VAC / 4A, DC ratings: 4A up to 35VDC, 1A up to 60VDC
Maximum number of units in synchronised parallel operation (Bluetooth)10
Battery connection terminalsScrew terminals 35 mm² (2 AWG)
PV connection terminalsScrew terminals 35 mm² (2 AWG)
Remote on/off terminal connectionTwo-pole screw terminal
Relay terminal connectionThree-pole screw terminal
ColourBlue (RAL 5012)
Protection ratingIP22 (connection area), IP43 (electronic components)
Weight3 kg
Height185 mm
Width250 mm
Depth95 mm
SafetyCSA C22.2, EN-IEC 62109-1, UL 1741
Data retention period46 days
Stored dataBattery voltage, battery current, battery temperature, PV voltage, PV current, load output current

Data sheet

Reference
SCC125060221
Brand
Victron Energy
Product type
MPPT controller
Maximum efficiency
99 %
Battery voltage
12 V
24 V
48 V
Charge current class
41-70 A
Max. charge current
60 A
Absorption charge voltage
14.4/28.8/57.6 V
Float charge voltage
13.8/27.6/55.2 V
Charge algorithm
Multi-stage adaptive (adjustable)
Max. PV voltage (Voc)
250 V
Max. PV short-circuit current
35 A
Max. PV power (by battery voltage)
860 W (12 V), 1720 W (24 V), 2580 W (36 V), 3440 W (48 V)
Bluetooth (app)
Yes
Communication interfaces
Bluetooth
VE.Direct
Programmable relay
Yes
Protections
Output short-circuit, overtemperature, PV reverse polarity
Dimensions (H x W x D)
185 x 250 x 95 mm
Weight
3 kg
Ingress protection (IP)
IP22 (connection area), IP43 (electronics)
Operating temperature
-30 ... 60 °C
Max. relative humidity
95 %
Colour
Blue
Standards and compliance
CSA C22.2, EN-IEC 62109-1, UL 1741

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
