  • New

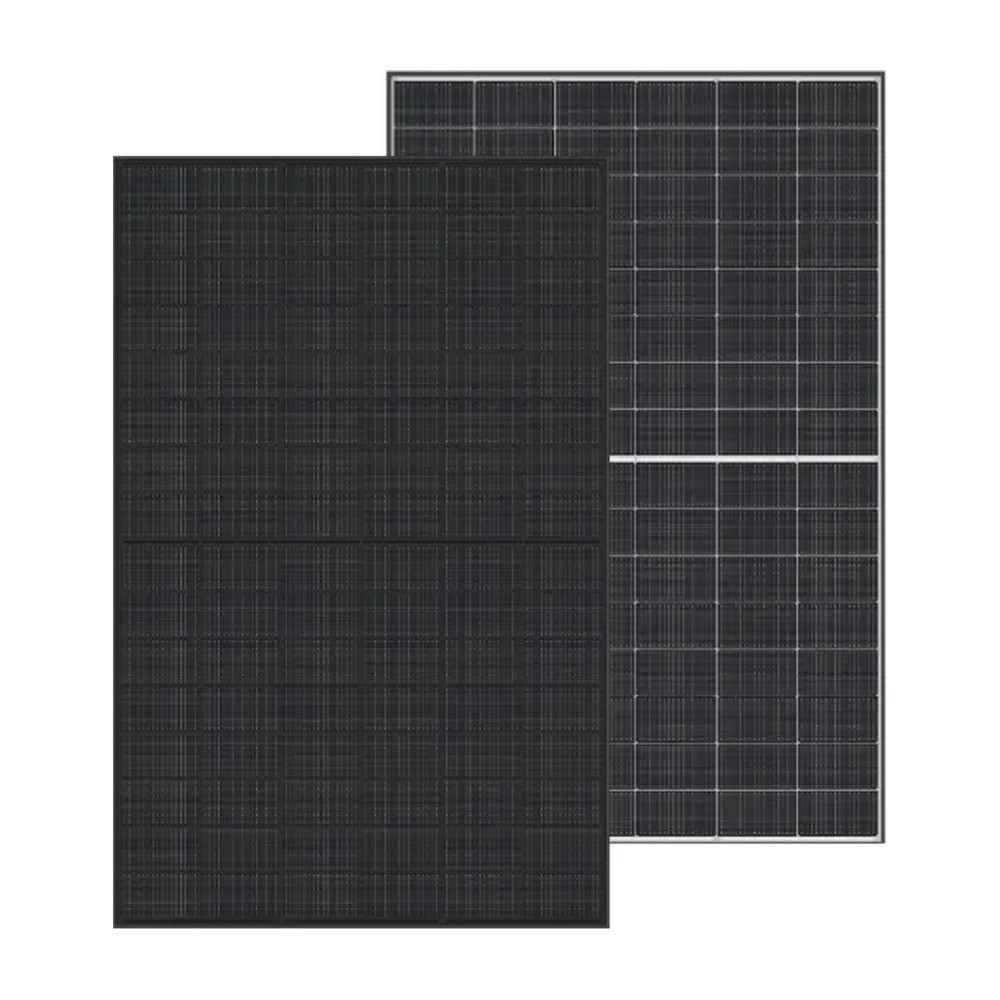

Solar photovoltaic panel TCL Solar HSM-ND48-DR 450W bifacial N-Type double glass

Solar photovoltaic panel TCL Solar HSM-ND48-DR 450W bifacial N-Type double glass

€92 Tax included

€77 Tax excluded

TCL Solar HSM-ND48-DR is a bifacial N-type TOPCon double-glass solar panel with a black frame, 450 Wp maximum power and 22.5 % efficiency. 25-year product warranty and 30-year power warranty.

Brand TCL Solar
Reference TCL-HSM-ND48-DR450

The minimum purchase order quantity for the product is 8. Minimum quantity can be changed if you order a complete system.

Panel ordering information

  • Under 8 pieces: order by phone at +33 6 33 60 16 59, with pickup from our warehouses.

  • Green stamp: included in the price.

  • Home delivery: from 350 lei, not included in the price. Pickup from our headquarters is possible.

  • Packing: fixed fee of 100 lei, not included in the price.

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

TCL Solar HSM-ND48-DR - Bifacial photovoltaic panel 450 Wp, double glass

TCL Solar HSM-ND48-DR 450 Wp is a bifacial photovoltaic panel with N-type TOPCon cells, double glass and a black anodized frame. The rear side also collects reflected light and the efficiency reaches 22.5 %.

Main features:

  • Maximum power: 450 Wp, efficiency 22.5 %
  • Technology: bifacial, N-type TOPCon cells
  • Construction: double glass 2.0 + 2.0 mm, black frame
  • Weight: 24.5 kg, 1762 x 1134 x 30 mm
  • Warranty: 25 years product, 30 years power

Technical specifications

Product codeTCL-HSM-ND48-DR450
Product typePhotovoltaic panel
Maximum power (Pmax)450 Wp
Efficiency22.5 %
Voltage at maximum power (Vmp)30.13 V
Current at maximum power (Imp)14.94 A
Open-circuit voltage (Voc)35.56 V
Short-circuit current (Isc)16.06 A
Temperature coefficient Pmax-0.29 %/°C
Temperature coefficient Voc-0.25 %/°C
Temperature coefficient Isc+0.045 %/°C
Bifaciality80 % ± 5 %
Maximum system voltage1500 V
Maximum series fuse rating30 A
CellsN-type TOPCon
Glass2.0 mm + 2.0 mm, heat-strengthened
FrameBlack anodized aluminium
Dimensions1762 x 1134 x 30 mm
Weight24.5 kg
Junction boxIP68, 3 bypass diodes
Connectors / cableStäubli MC4-EVO2A, 1200 mm cable
Maximum loadwind 2400 Pa, snow 5400 Pa
Operating temperature-40 ... 70 °C
StandardsIEC 61215, IEC 61730
Product warranty25 years
Power warranty30 years, 99.0 % in the first year, maximum degradation 0.40 % per year

Data sheet

Reference
TCL-HSM-ND48-DR450
MPN
HSM-ND48-DR450
Product type
Photovoltaic panel
Panel power class
401+ Wp
Maximum power (Pmax)
450 Wp
Open-circuit voltage (Voc)
35.56 V
Short-circuit current (Isc)
16.06 A
Dimensions (H x W x D)
1762 x 1134 x 30 mm
Ingress protection (IP)
IP68
Operating temperature
-40 ... 70 °C
Colour
Black
Material
Aluminium
Standards and compliance
IEC61215, IEC61730
Warranty
25 years

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
