€6,020 Tax excluded
Pre-wired off-grid photovoltaic system on a wheeled frame: move it where you need it, connect the panels and it works.

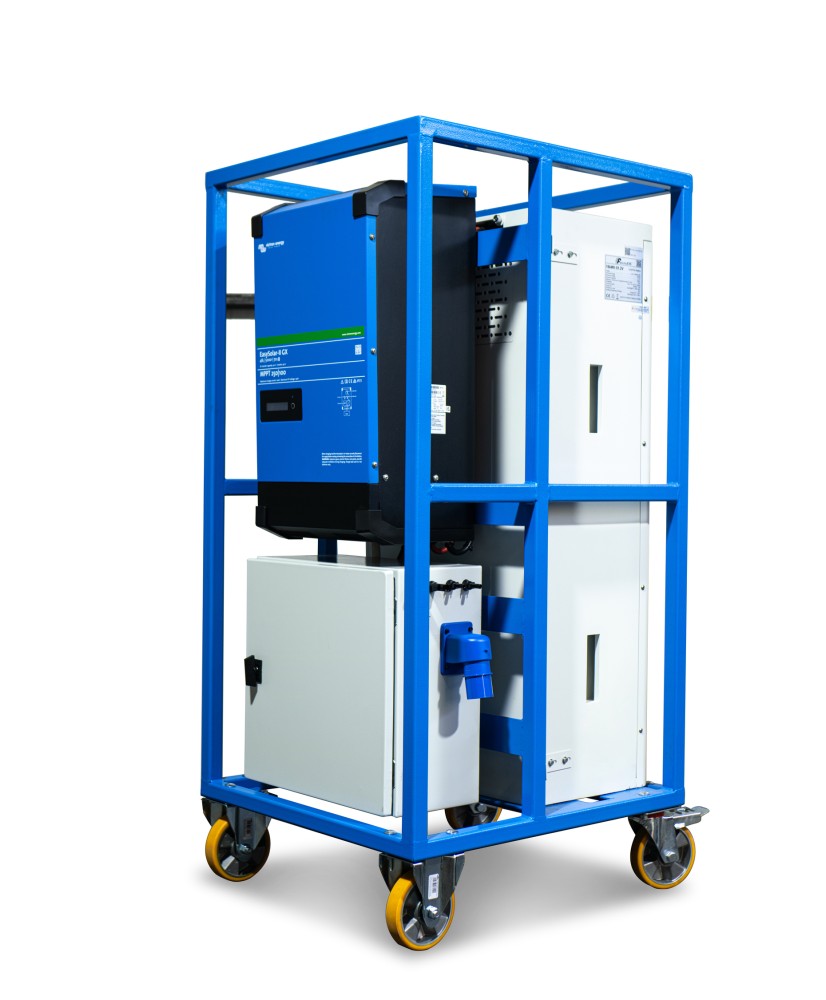

The kit brings the Victron EasySolar-II GX 5000 VA inverter-charger, the Felicity 16 kWh LiFePO4 battery and the DC/AC electrical panel together on a single wheeled metal frame, all pre-wired and ready to use. The customer only installs the photovoltaic panels (up to 5 kW) and connects them to the system; it can save up to 500 kWh per month, depending on the panels chosen and the season. It suits homes, cabins and small businesses that need a simple, mobile, independent energy source.
Photovoltaic panels are not included; they are bought and installed separately.
| Feature | Value |
|---|---|
| Inverter power | 5000 VA (4000 W continuous at 25 °C, peak 9000 W) |
| Solar charger | Integrated MPPT 250/100; maximum panel voltage 250 V, maximum panel power 5800 W |
| Battery | Felicity LiFePO4 FLB 48314TG1-H, 16 kWh, 51.2 V, 314 Ah |
| System voltage | 48 V |
| Output | 230 V, 50 Hz, pure sine wave, single-phase |
| Monitoring | Integrated Victron GX (Wi-Fi, Ethernet) |
| Dimensions | 60 × 65 × 130 cm (W × D × H) |
| Weight | approx. 265 kg |
| Mobility | wheeled frame, Plug & Play |
| Warranty | 5 years |
The kit ships pre-wired, so setting it up takes a few steps.
Connecting the panels and tying into the building's electrical installation must be done by a licensed electrician.
| Output load | Example appliances | Approximate runtime |
|---|---|---|
| 500 W | fridge, LED lighting, router, TV, laptop | about 28 hours |
| 1000 W | the above, plus circulation pump, computers, small tools | about 14 hours |
| 2000 W | the above, plus a small air conditioner or washing machine | about 7 hours |
| 4000 W | maximum continuous load of the inverter | about 3.5 hours |
Indicative calculation, without solar input: 16 kWh nominal energy, about 95% usable discharge and about 92% inverter efficiency, which gives roughly 14 kWh available to the appliances. Real runtime depends on temperature, battery condition and the actual power of the appliances. With panels installed, the battery recharges during the day and the runtime increases.
The kit has a 5-year warranty. For help sizing the panels or any question about the kit, the kitoffgrid team is glad to answer.
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
