€154 Tax excluded

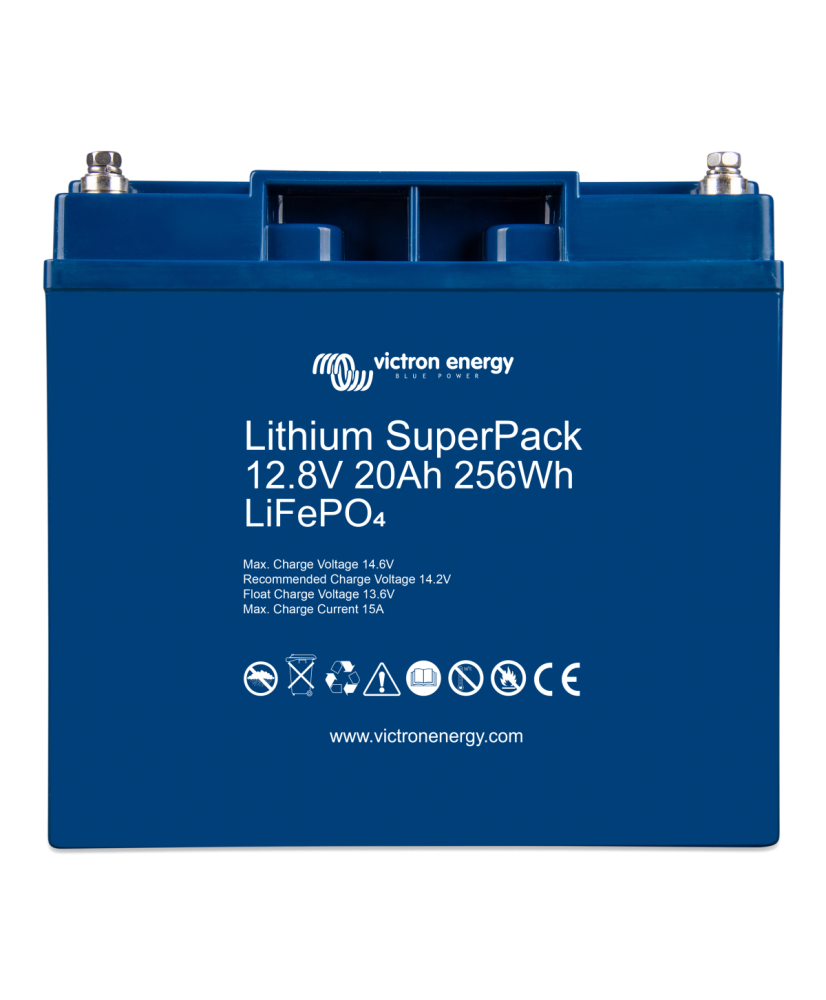

Lithium SuperPack 12.8V/20Ah (M5) is a lithium iron phosphate (LiFePO4) battery that installs without additional components. The internal switch disconnects it in case of excessive discharge, overcharge or high temperature, and several batteries can be connected in parallel, but not in series. The compact format is suitable for small mobile systems, boats and portable equipment.
Victron Energy commercial warranty: 3 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions
Lithium SuperPack 12.8V/20Ah (M5) is a lithium iron phosphate (LiFePO4) battery that installs without additional components. The internal switch disconnects it in case of excessive discharge, overcharge or high temperature, and several batteries can be connected in parallel, but not in series. The compact format is suitable for small mobile systems, boats and portable equipment.
Lithium SuperPack batteries are extremely easy to install and do not require any additional components.
The internal switch will disconnect the battery in case of over-discharge, overcharge or high temperature.
Lithium SuperPack batteries can be connected in parallel. Series connection is not permitted.
| Nominal battery voltage | 12.8 V |
|---|---|
| Nominal battery voltage (class) | 12 |
| Nominal battery capacity | 20 Ah |
| Nominal usable capacity | 16 Ah |
| Nominal energy | 256 Wh |
| Designed cycle life at 80% DoD | 2500 cycles |
| Capacity loss | 1 % |
| Energy loss | 1 % |
| Efficiency | 92 % |
| Chemistry | Lithium iron phosphate (LiFePO4 or LFP) |
| Maximum continuous discharge current | 30 A |
| Peak discharge current | 80 A |
| End-of-discharge voltage | 10 V |
| Absorption charge voltage range | 14.2 … 14.4 V |
| Float charge voltage | 13.5 V |
| Operating temperature range (charging) | ≤ 45 °C |
| Operating temperature range (discharging) | -20 … 50 °C |
| Storage temperature range | -40 … 65 °C |
| Maximum storage time at 25 °C | 1 year |
| Maximum storage time at 40 °C | 3 months |
| Maximum humidity | 95 % |
| Parallel configuration | Yes, unlimited |
| Series configuration | No |
| BMS included | 1 |
| Battery terminals | Threaded inserts M5 |
| Protection rating | IP43 |
| Mounting orientation | Upright or on one side (provided the terminals do not face downwards) |
| Weight | 3 kg |
| Height | 167 mm |
| Width | 181 mm |
| Depth | 77 mm |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
Compatibility is calculated automatically from the manufacturers’ technical data and is for information only. For complex systems, we recommend having the configuration checked by a consultant before ordering. Details in the Terms and conditions
