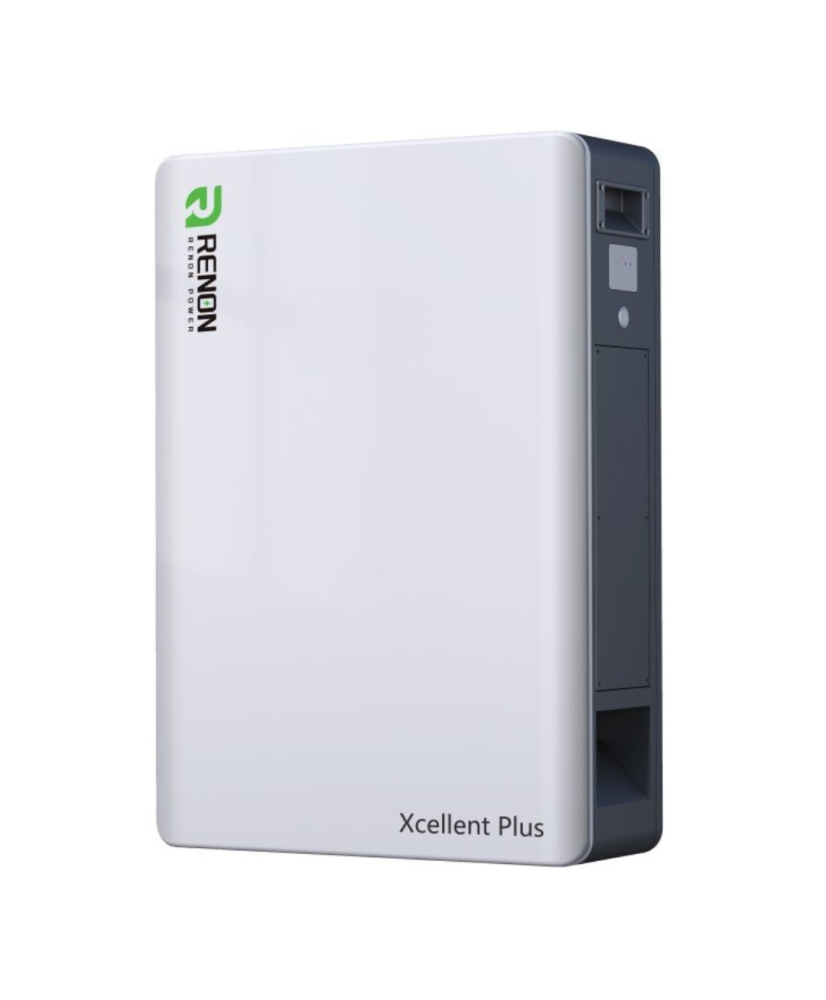

Renon 16 kWh Battery Lifepo4 Xcellent Plus-H 51.2V-314Ah IP65 With Heating

Renon Accumulator LiFePO4 Xcellent Plus-H 16 kWh 51.2V-314Ah IP65

The Renon Xcellent Plus-H battery is an advanced energy storage solution designed for maximum performance, safety and durability. With a capacity of 16 kWh and a nominal voltage of 51.2V, this model uses LiFePO4 (lithium iron phosphate) technology, offering an extended lifespan and complete protection for residential and commercial applications. The Plus-H version includes an integrated heating system, ensuring optimal performance even in low temperature conditions.

Main features:

• Storage capacity: 16 kWh
• Nominal voltage: 51.2V
• Battery capacity: 314Ah
• Technology: LiFePO4 - superior thermal stability and safety
• Lifespan: Up to 8000 charge cycles
• Protection: IP65 rating - water and dust resistant, suitable for indoor or outdoor use
• Modern design: Compact, elegant and silent, ideal for residential installation
• Integrated heating: Smart thermal film for reliable operation at low temperatures

Advantages:

• Self-heating function: Automatically activates heating when the cell temperature drops below 5°C and charging current (>3A) is present
• Flexible installation: Can be mounted on the wall or floor
• High scalability: Up to 15 units can be connected in parallel
• Extended compatibility: Support for CAN, RS485 and RS232 communication
• Silent operation: Natural cooling, no noise
• Certified safety: According to IEC62619, UN38.3, CEI 0-21, EN-61000 standards

Technical specifications:

• Model: R-XC016161-H
• Technology: LiFePO4
• Nominal energy: 16 kWh
• Operating voltage: 43.2V ~ 59.2V
• Maximum discharge current: 200A
• Output power: 10.2 kW
• Dimensions: 560 × 200 × 800 mm
• Weight: 126 kg
• Charging temperature: 0°C ~ 50°C (with heating system active at <5°C)
• Discharge temperature: -20°C ~ 50°C
• Maximum operating altitude: 4000 m
• Communication: RS485 / CAN / RS232
• Warranty: 10 years

Frequently Asked Questions (FAQs):

• What does the Xcellent Plus-H version bring?
  It includes an internal heating system that maintains battery performance at low temperatures, increasing efficiency and safety in winter conditions.
• Can it be installed outdoors?
  Yes, thanks to IP65 protection, it is dust and water resistant.
• How long is the battery life?
  Up to 8000 charge cycles, providing a long service life.

For a reliable, silent and adaptable energy storage system for all environmental conditions, Renon Xcellent Plus-H is the ideal choice for modern, sustainable and safe applications.
