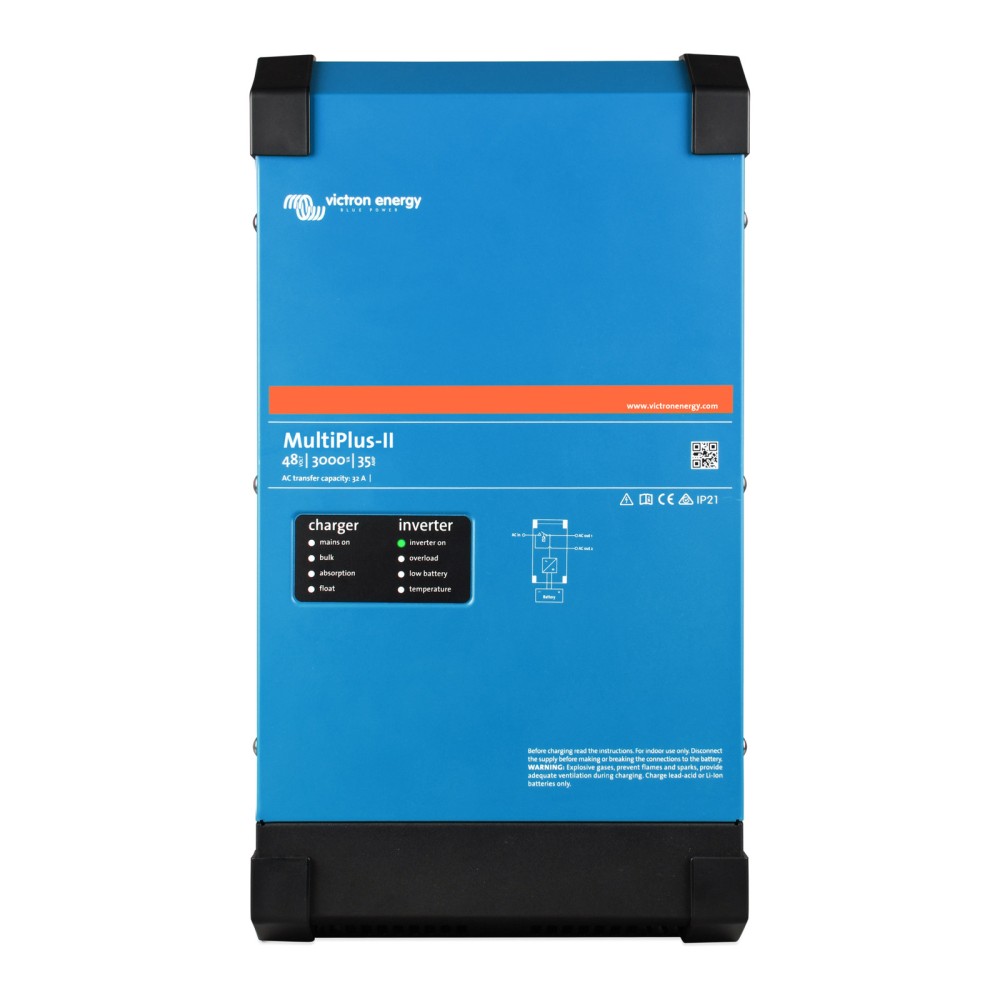

Inverter/charger Victron Energy MultiPlus-II 48/3000/35-32, 230 V

Inverter/charger Victron Energy MultiPlus-II 48/3000/35-32, 230 V

€748 Save €113
€635 Tax included

€529 Tax excluded

The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid.

Reference PMP482305010

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

Victron Energy MultiPlus-II 48/3000/35-32 230V

The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid.
It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A).
It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.

PowerAssist
The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
The MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters. For examples and more detailed information see the ESS (Energy Storage System) manual.

Uninterrupted AC power (UPS function)
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Remote Monitoring and Control
When coupled with a GX device you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more.

Specifications:
Voltage: 48V
Cont. Output Power at 25°C: 3000VA
Peak Power: 5500W
Output AC Voltage: 230V
Transfer Switch: 32A
Max. AC Input Current: 32A
Max. Battery Charge Current: 35A
Protection Category: IP22
Efficiency: 95%
Bluetooth Compatible: Yes
Dimensions: H506 x W275 x D147mm
Weight: 18Kg

Data sheet

Reference
PMP482305010
Brand
Victron Energy
Product type
Inverter/charger
Inverter type
Inverter/charger
Phases
Single-phase
Power class
2-3.5 kW
Continuous output power (VA, 25 °C)
3000 VA
Continuous output power (W, 25 °C)
2400 W
Peak power
5500 W
Maximum efficiency
95 %
Zero-load power
11 W
Output waveform
Pure sine wave
Battery voltage
48 V
DC input voltage range
38-66 V
Max. charge current
35 A
AC output voltage
230 V
Output frequency
50 Hz
AC input voltage range
187-265 V
Max. AC input current
32 A
Parallel operation
Yes
Communication interfaces
VE.Bus
Programmable relay
Yes
Protections
Output short-circuit, overload, overtemperature, high battery voltage, low battery voltage, excessive DC ripple, AC voltage on output
Dimensions (H x W x D)
499 x 268 x 141 mm
Weight
19 kg
Ingress protection (IP)
IP22
Operating temperature
-40 ... 65 °C
Max. relative humidity
95 %
Colour
Blue
Material
Steel
Standards and compliance
EN-IEC 60335-1, EN 55014-1, EN 55014-2, EN-IEC 61000-3-2

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
