  • -15%

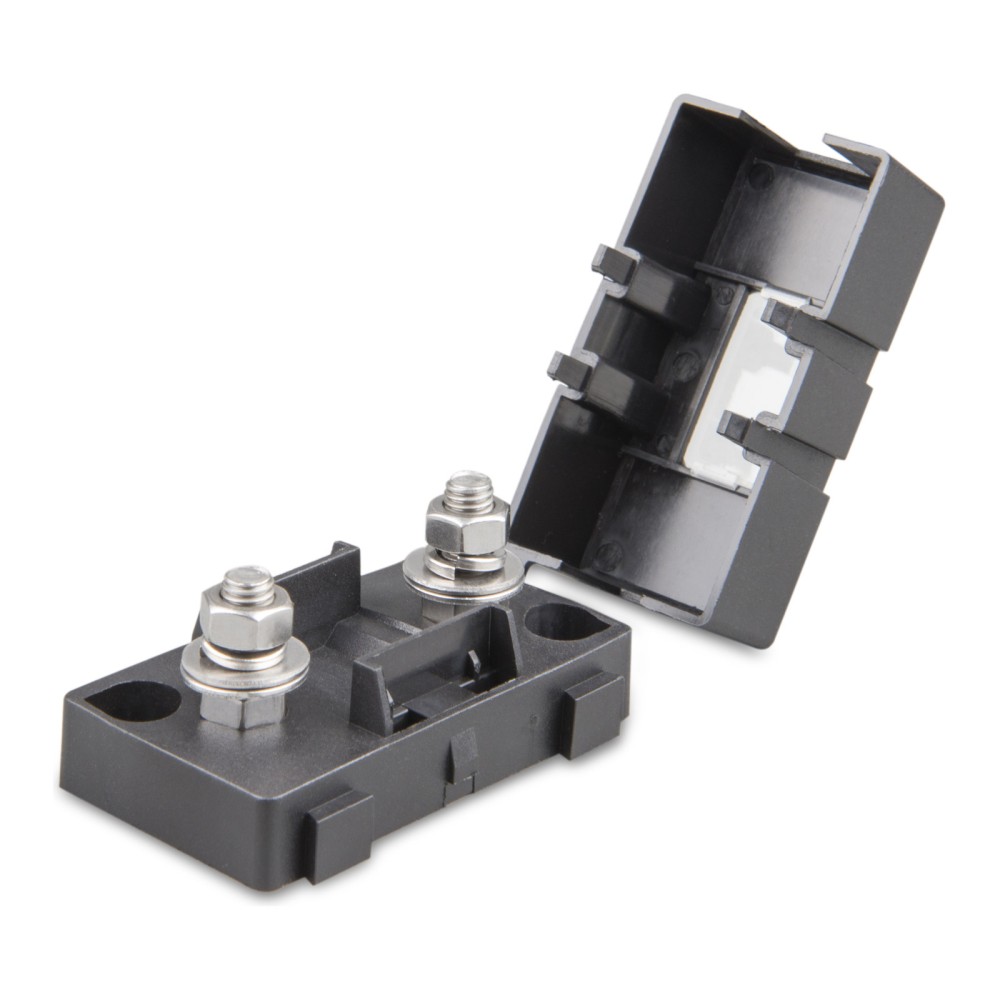

Fuse holder Victron Energy MIDI, 200 A

Fuse holder Victron Energy MIDI, 200 A

€12 Save €2
€10 Tax included

€8 Tax excluded

The Victron MIDI fuse holder accommodates a single MIDI fuse and has a tinned copper busbar and an ABS cover. The rated current is 200 A, the rated operating voltage is 58 V and the dimensions are 25 x 52 x 29.5 mm. It is part of the Victron range of fuse holders for ANL, MIDI and MEGA fuses.

Reference CIP000050001

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

MIDI fuse holder - Holder for one MIDI fuse

The MIDI fuse holder is a simple holder for a single MIDI fuse, with a tinned copper busbar and an ABS cover. It is designed for DC circuits up to 58 V and rated currents up to 200 A.

Key features:

  • Fuse type: MIDI, single fuse
  • Rated current: 200 A
  • Rated operating voltage: 58 V
  • Busbar: tinned copper, 3 x 18 mm
  • Cover: ABS
  • Dimensions: 25 x 52 x 29.5 mm (height x width x depth)

In addition to ANL, MIDI and MEGA fuses, the Victron range includes three types of fuse holders: simple single-fuse holders for each of the three types; a six-way holder for MEGA fuses only; and modular holders for MEGA fuses only, with an optional busbar for connecting several fuses.

For high-current DC distribution there are also the Lynx Power In and Lynx Distributor, part of the 1000 A Lynx distribution system.

Technical specifications

Busbar materialTinned copper
Busbar dimensions3mm x 18mm
Cover materialABS
Height25 mm
Width52 mm
Depth29.5 mm

Data sheet

Reference
CIP000050001
Brand
Victron Energy
Product type
Fuse holder
Rated current (exact)
200 A
Rated voltage
58 V
Dimensions (H x W x D)
25 x 52 x 29.5 mm

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the manufacturer’s datasheet.
