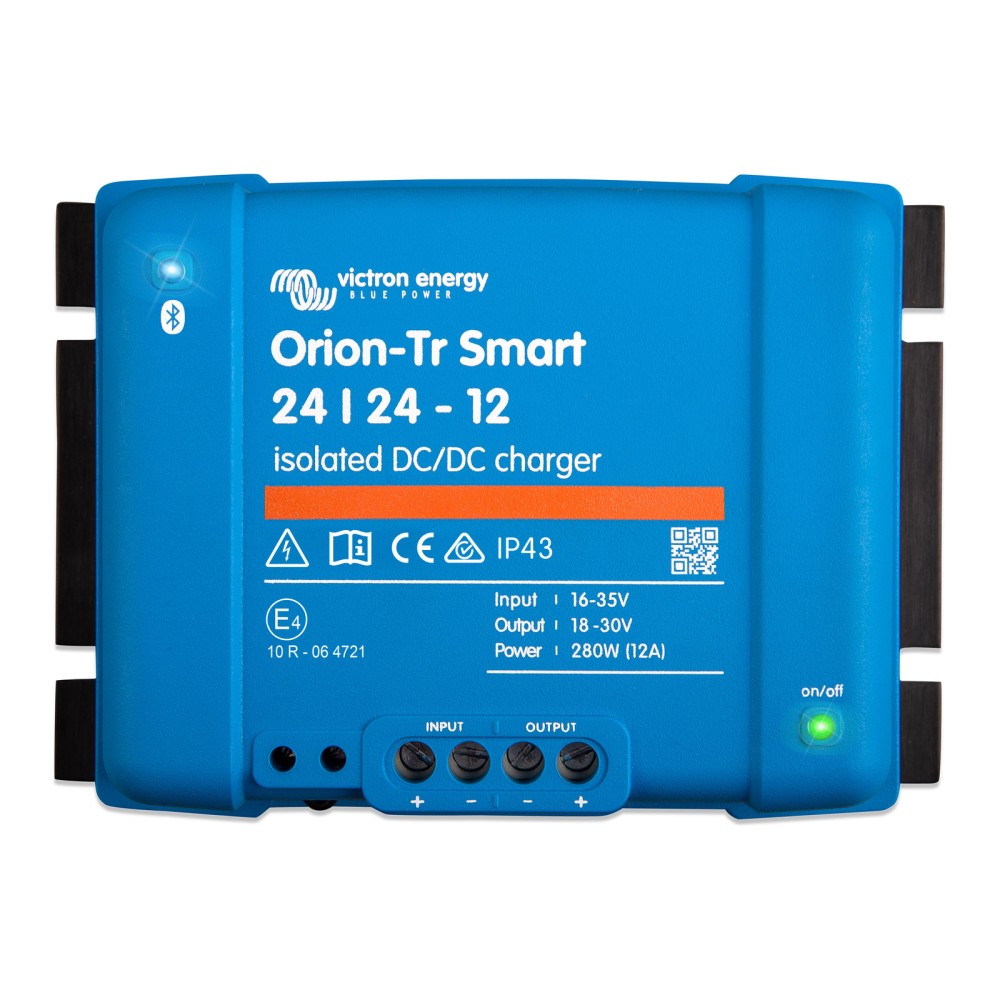

Victron Orion-Tr Smart 24/24-12A Isolated DC-DC
  • Victron Orion-Tr Smart 24/24-12A Isolated DC-DC
  • Isolated DC-DC charger Victron Energy Orion-Tr Smart 24/24-12A (280 W)
  • Isolated DC-DC charger Victron Energy Orion-Tr Smart 24/24-12A (280 W)
  • Victron Orion-Tr Smart 24/24-12A Isolated DC-DC

Isolated DC-DC charger Victron Energy Orion-Tr Smart 24/24-12A (280 W)

€183 Save €28
€155 Tax included

€129 Tax excluded

Orion-Tr Smart 24/24-12A is a galvanically isolated DC-DC converter from 24 V to 24 V with a continuous output current of 12 A and a continuous power of 320 W at 25 °C. The input voltage range is 16-35 V, the maximum efficiency 89 %, and the ingress protection IP22 (connection area), IP43 (electronics). It has built-in Bluetooth and is programmed from VictronConnect.

Reference ORI242428120

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

Orion-Tr Smart 24/24-12A - Galvanically isolated DC-DC converter, 24 V to 24 V

Orion-Tr Smart 24/24-12A is a galvanically isolated DC-DC converter that converts the 24 V input voltage to 24 V and delivers a continuous output current of 12 A. It is a professional adaptive three-stage DC-DC charger with built-in Bluetooth for dual-battery systems in vehicles or on boats.

Key features:

  • Input voltage: 16-35 V
  • Output voltage: 24.2 V (range 20-30 V)
  • Continuous output current: 12 A
  • Continuous power: 320 W (25 °C)
  • Maximum efficiency: 89 %
  • Galvanic isolation: Yes
  • Ingress protection: IP22 (connection area), IP43 (electronics)

The charger is used in dual-battery systems in vehicles or on boats, where the (smart) alternator and the starter battery charge the service battery. The unit can be monitored and programmed via Bluetooth, can be controlled remotely with an on/off switch and has an engine-running detection mechanism. It can be used in 12 V or 24 V systems and is suitable for both lead-acid and lithium batteries.

The charging algorithm is adaptive, in three stages (bulk, absorption, float), configurable or with a fixed output. Any phone, tablet or other Bluetooth-compatible device can be used for monitoring, changing settings and updates. Models of up to 400 W are available, and an unlimited number of units can be connected in parallel to increase the output power. The product is suitable for temperatures up to 55 °C, with full rated output up to 40 °C.

Technical specifications

Input voltage range16 … 35 V
Undervoltage shutdown14 V
Restart after undervoltage15 V
Output voltage24.2 V
Output voltage range20 … 30 V
Output voltage tolerance200 mVrms
Output voltage ripple2 mVrms
Maximum output current15 A
Continuous output current at 40 °C12 A
Output derating above 40 °C3 %
Maximum short-circuit current30 A
Continuous output power at 25 °C320 W
Continuous output power at 40 °C280 W
No-load current consumption80 mA
Standby current consumption1 mA
Maximum efficiency89 %
Use as power supplyYes
Can be connected in parallelYes
Galvanic isolationYes
ProgrammableYes
Remote on/off terminalYes
BluetoothYes
VictronConnect appYes
ProtectionsOver-temperature, Short-circuit protected
Insulation200 VDC
Operating temperature range-20 … 55 °C
Maximum humidity95 %
DC connection terminalsScrew terminals 16 mm² (6 AWG)
Remote on/off terminal connectionTwo-pole screw terminal
ColourBlue (RAL 5012)
Ingress protectionIP22 (connection area), IP43 (electronics)
Weight1.3 kg
Height130 mm
Width186 mm
Depth70 mm
SafetyEN 60950
EmissionEN 55014-1, EN-IEC 61000-6-3
ImmunityEN 55014-2, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive directiveECE R10-5

Data sheet

Reference
ORI242428120
Brand
Victron Energy
Product type
DC-DC charger (alternator)
Maximum efficiency
89 %
DC input voltage range
16-35 V
Input voltage
24 V
Output voltage
24 V
DC output voltage range
20-30 V
Rated output current
12 A
Charge current class
11-20 A
Galvanic isolation
Yes (isolated)
Bluetooth (app)
Yes
Communication interfaces
Bluetooth
Protections
Output short-circuit, overtemperature
Dimensions (H x W x D)
130 x 186 x 70 mm
Weight
1.3 kg
IP rating class
IP43
Ingress protection (IP)
IP22 (connection area), IP43 (electronics)
Operating temperature
-20 ... 55 °C
Max. relative humidity
95 %
Colour
Blue
Standards and compliance
EN 60950, ECE R10-5, EN 55014-1, EN-IEC 61000-6-3

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
