€491 Tax excluded

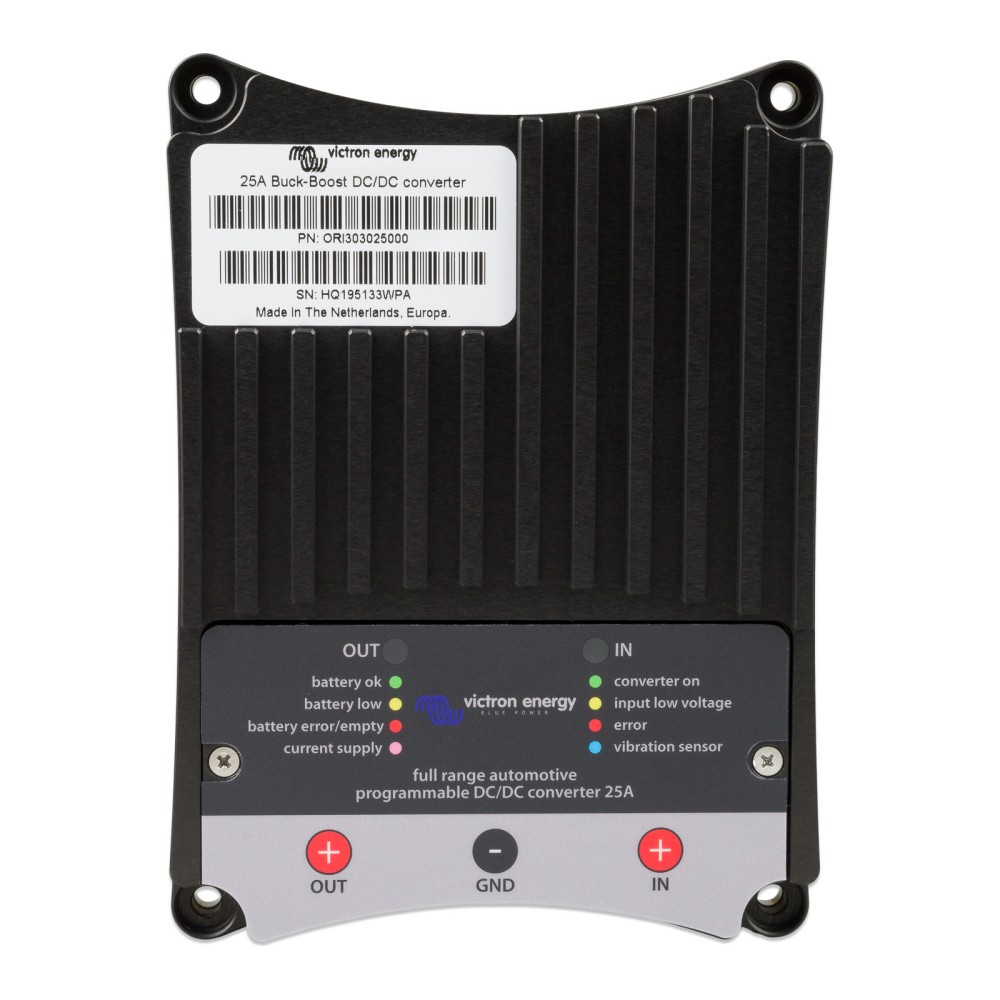

The 25 A Buck-Boost DC-DC converter is used to charge a 12/24 V service battery in vehicles with a smart alternator. The input and output voltage range is 10-30 V, the maximum output current is 25 A at 12 V and 15 A at 24 V, and the aluminium housing measures 165 x 120 x 30 mm.
Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions
25 A Buck-Boost DC-DC converter is a DC-DC converter for charging a 12/24 V service battery in vehicles with a smart alternator. The maximum output current is 25 A at 12 V and 15 A at 24 V.
The Buck-Boost DC-DC converter is intended for charging a 12/24 V service battery in vehicles with a smart alternator. Because these alternators, controlled by the engine electronics of vehicles complying with emission standards 5 and 6, do not always deliver the correct charging current while the engine is running, a DC-DC converter is essential for correctly charging the service battery.
The converter is programmable and has a terminal for remote on/off. The operating temperature range is from -25 to 60 °C, and at 60 °C it can deliver its full rated power. The housing is aluminium.
| Input voltage range | 10 … 30 V |
|---|---|
| Undervoltage shutdown | 10 V |
| Output voltage range | 10 … 30 V |
| Maximum output current (12 V) | 25 A |
| Maximum output current (24 V) | 15 A |
| Standby current draw | 7 mA |
| Programmable | Yes |
| Remote on/off terminal | Yes |
| Operating temperature range | -25 … 60 °C |
| Temperature at full rated power | 60 °C |
| DC connection terminals | M8 screws |
| Remote on/off terminal connection | Two-pole screw terminal |
| Material | Aluminium |
| Weight | 0.6 kg |
| Height | 165 mm |
| Width | 120 mm |
| Depth | 30 mm |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
