€661 Tax excluded

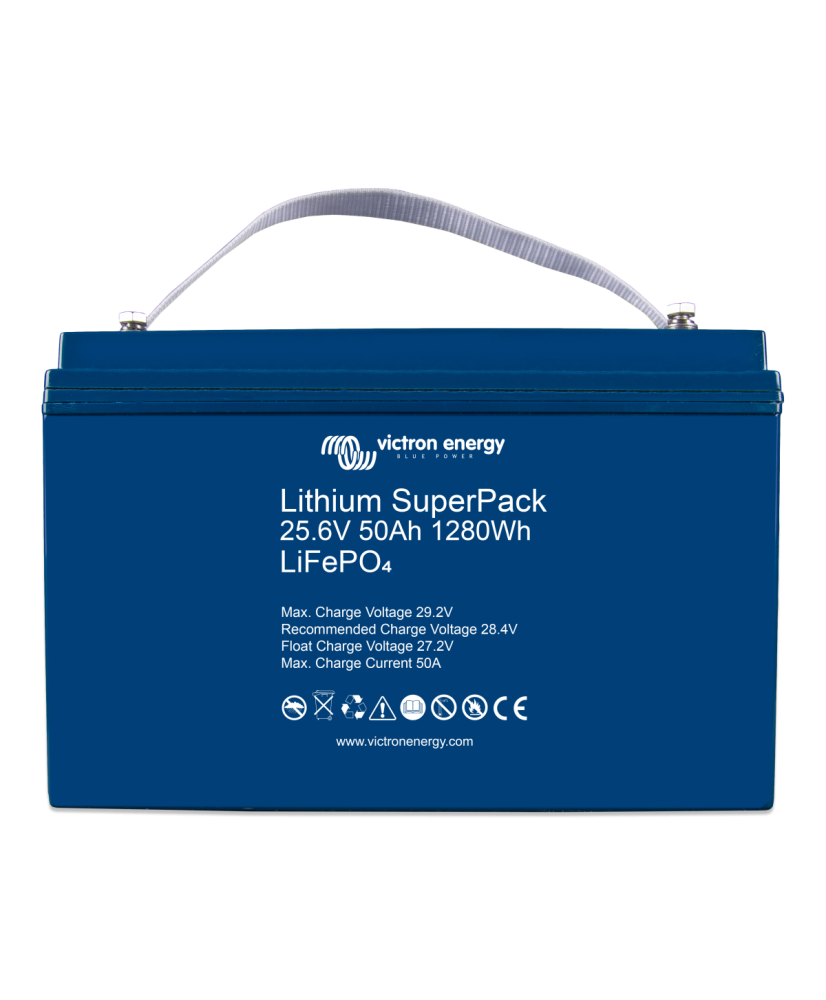

Lithium SuperPack 25.6V/50Ah (M8) is a lithium iron phosphate (LiFePO4) battery that installs without any additional components. The internal switch disconnects it in the event of over-discharge, overcharge or high temperature, and several batteries can be connected in parallel, but not in series. The 25.6 V voltage makes it suitable for 24 V systems in vehicles, boats and off-grid installations.
Victron Energy commercial warranty: 3 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions
Lithium SuperPack 25.6V/50Ah (M8) is a lithium iron phosphate (LiFePO4) battery that installs without any additional components. The internal switch disconnects it in the event of over-discharge, overcharge or high temperature, and several batteries can be connected in parallel, but not in series. The 25.6 V voltage makes it suitable for 24 V systems in vehicles, boats and off-grid installations.
Lithium SuperPack batteries are extremely easy to install and do not require any additional components.
The internal switch disconnects the battery in the event of over-discharge, overcharge or high temperature.
Lithium SuperPack batteries can be connected in parallel. Series connection is not permitted.
| Nominal battery voltage | 25.6 V |
|---|---|
| Nominal battery voltage (class) | 24 |
| Nominal battery capacity | 50 Ah |
| Rated capacity | 40 Ah |
| Nominal energy | 1280 Wh |
| Design cycle life at 80 % DoD | 2500 cycles |
| Capacity loss | 1 % |
| Energy loss | 1 % |
| Efficiency | 92 % |
| Chemistry | Lithium iron phosphate (LiFePO4 or LFP) |
| Maximum continuous discharge current | 50 A |
| Peak discharge current | 100 A |
| End-of-discharge voltage | 20 V |
| Absorption charge voltage range | 28.4 … 28.8 V |
| Float charge voltage | 27 V |
| Operating temperature range (charging) | ≤ 45 °C |
| Operating temperature range (discharging) | -20 … 50 °C |
| Storage temperature range | -40 … 65 °C |
| Maximum storage time at 25 °C | 1 year |
| Maximum storage time at 40 °C | 3 months |
| Maximum humidity | 95 % |
| Parallel configuration | Yes, unlimited |
| Series configuration | No |
| BMS included | 1 |
| Battery terminals | M8 threaded inserts |
| Protection rating | IP43 |
| Mounting orientation | Upright or on its side (provided the terminals do not face downwards) |
| Weight | 14 kg |
| Height | 220 mm |
| Width | 330 mm |
| Depth | 172 mm |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
Compatibility is calculated automatically from the manufacturers’ technical data and is for information only. For complex systems, we recommend having the configuration checked by a consultant before ordering. Details in the Terms and conditions
