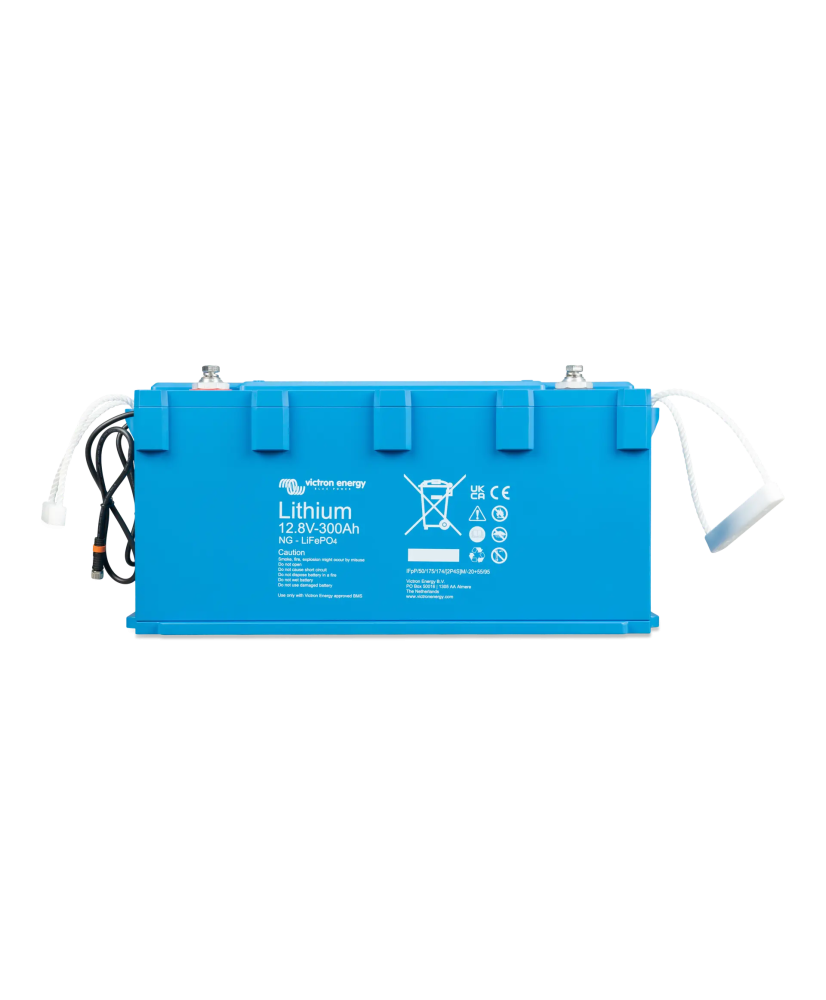

LiFePO4 Battery 12.8V/300Ah NG Victron Energy

Victron 12.8V 300Ah NG Lithium Battery

The shunt continuously measures the battery’s current, voltage, and temperature, then transmits this data to the NG BMS. The Battery Management System analyzes the information to determine important parameters and activate alerts when necessary.

Monitoring of the NG lithium battery can be done through the VictronConnect App, a GX device, or remotely via the Victron VRM Portal.

This model is part of Victron’s New Generation (NG) battery line, which also includes 25.6V and 51.2V variants in multiple capacities.

Technical Specifications

• Nominal Voltage: 12.8 V
• Nominal Capacity (at 25 °C): 300 Ah
• Nominal Energy (at 25 °C): 3840 Wh
• Capacity Loss: <1 % per 100 cycles at 25 °C (100 % DoD)
• Energy Loss: <1 % per 100 cycles at 25 °C (100 % DoD)
• Full Cycle Efficiency: 92 %
• Terminal Type: M8 screws (8 mm cable lug)

Cycle Life (Capacity ≥ 80 % of Nominal)

• 80 % Depth of Discharge: ~2500 cycles
• 70 % Depth of Discharge: ~3000 cycles
• 50 % Depth of Discharge: ~5000 cycles

Electrical Characteristics

• Self-Discharge: <3 % per month at 25 °C
• Charging Voltage: 14.0 V – 14.4 V
• Float Voltage: 13.5 V
• Max Continuous Charge Current: 300 A (1C)
• Peak Charge Current (10 s): 450 A (1.5C)
• Max Continuous Discharge Current: 300 A (1C)
• Peak Discharge Current (10 s): 600 A (2C)
• End-of-Discharge Voltage: 11.2 V
• Internal Resistance: 1 mΩ

Operating Conditions

• Charging Temperature: +5 °C to +50 °C
• Discharge Temperature: -20 °C to +50 °C
• Storage Temperature: -45 °C to +70 °C
• Humidity (non-condensing): up to 95 %
• Protection Rating: IP65

Physical Details

• Dimensions (H × W × D): 206 × 447 × 205 mm
• Weight: 29 kg
