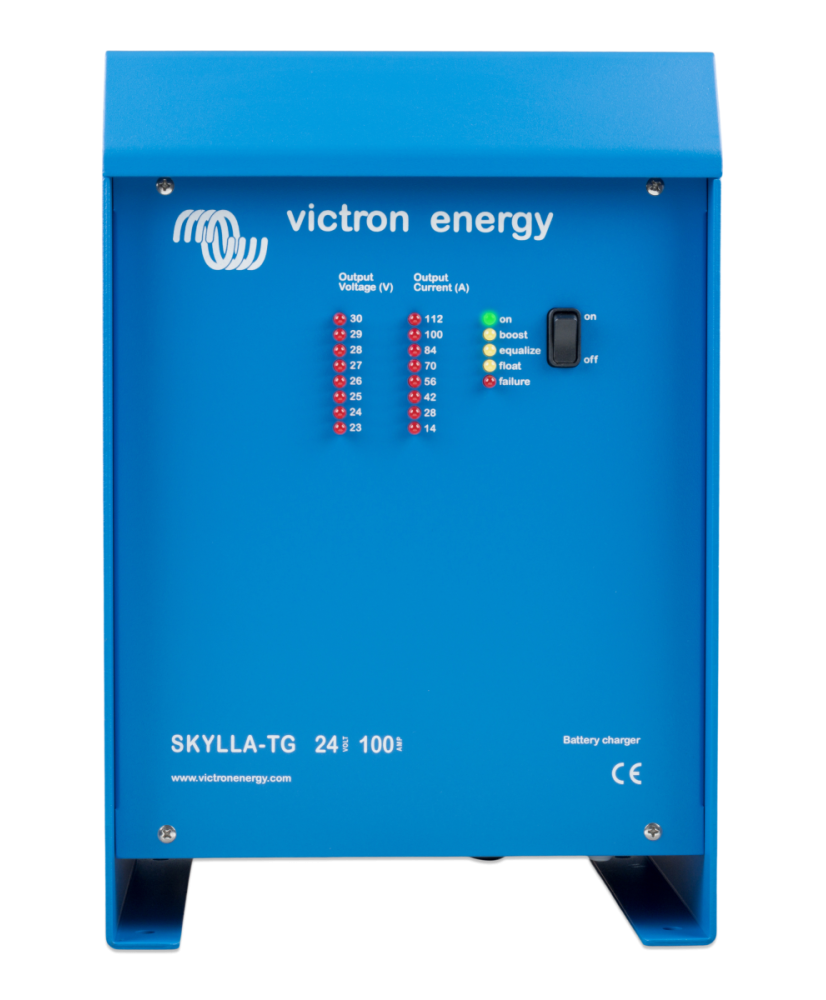

Skylla-TG 24/100(1+1) GL 120-240V Victron Energy
  • Skylla-TG 24/100(1+1) GL 120-240V Victron Energy
  • Skylla-TG 24/100(1+1) GL 120-240V Victron Energy
  • Skylla-TG 24/100(1+1) GL 120-240V Victron Energy
  • Skylla-TG 24/100(1+1) GL 120-240V Victron Energy
  • Skylla-TG 24/100(1+1) GL 120-240V Victron Energy

Battery charger Victron Energy Skylla-TG 24/100(1+1) GL 120-240V, 24 V, 100 A

€1,946 Save €292
€1,654 Tax included

€1,378 Tax excluded

The Skylla-TG 24/100(1+1) GL 120-240V is the Germanischer Lloyd certified version of the Skylla-TG charger, for 24 V batteries, with a rated current of 100 A and a 120-240 V AC input. It has one main output and one 4 A output for the starter battery, a three-stage IUoU charging algorithm and a temperature sensor included. It is sized for battery banks of 500-1000 Ah.

Reference SDTG2401003

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

Skylla-TG 24/100(1+1) GL 120-240V - 24V 100A battery charger with GL certification

The Skylla-TG 24/100(1+1) GL 120-240V is the Germanischer Lloyd certified version of the Skylla-TG charger, for 24 V batteries, with a rated current of 100 A and a 120-240 V AC input. It has one main output and one 4 A output for the starter battery, a three-stage IUoU charging algorithm and a temperature sensor included. It is sized for battery banks of 500-1000 Ah.

Key features:

  • Battery voltage: 24 V
  • Charging current: 100 A
  • Supply: 90-265 V AC or 90-400 V DC
  • Charging outputs: 1 main + 1 at 4 A (starter)
  • Charging algorithm: IUoU, three stages
  • Certification: Germanischer Lloyd, environmental category C, EMC 1

One full-rated output and one 4 A output. The charging voltage can be adjusted precisely to suit any battery system. The input voltage is 230 V at 50/60 Hz. The charging voltage can be measured directly at the battery terminals to compensate for voltage losses caused by cable resistance. An external sensor measures the battery temperature and adjusts the charging voltage accordingly.

Technical specifications

Nominal battery voltage24 V
Nominal charging current100 A
AC input voltage120 V or 230 V
AC input voltage range90 … 265 V
AC input voltage (class)120 V - 240 V
DC input voltage range90 … 400 V
AC input frequency range45 … 65 Hz
Number of charging outputs2
Power factor1
Absorption charging voltage28.5 V
Float charging voltage26.5 V
Starter battery charging current4 A
Charging algorithmIUoU, three-stage charging
Recommended battery capacity500 … 1000 Ah
Temperature sensorIncluded
ProgrammableSettings can be changed with DIP switches and potentiometers
Can be used as a power supplyYes
Remote alarmPotential-free contacts 60 V / 1 A (1x NO and 1x NC)
Forced coolingYes
ProtectionsOutput short circuit, High battery voltage, Over-temperature, Reverse battery polarity
Operating temperature range-40 … 50 °C
Maximum humidity95 %
MaterialAluminium
ColourBlue (RAL 5012)
Protection ratingIP21
Weight10 kg
Height365 mm
Width250 mm
Depth257 mm
AC connection terminalsscrew terminal 2.5 mm² (AWG 6)
Battery connection terminalsM8 bolts
SafetyEN-IEC 60335-1, EN-IEC 60335-2-29
EmissionEN 55014-1, EN-IEC 61000-3-2
ImmunityEN 55014-2, EN-IEC 61000-3-3
VibrationIEC 60945: 0.7g
GL certification (Germanischer Lloyd)Certificate 54 758 - 08HH

Data sheet

Reference
SDTG2401003
EAN13
8719076025795
Brand
Victron Energy
Product type
Battery charger
Battery voltage
24 V
Battery outputs
2 (1+1 starter)
Charge current class
71+ A
Max. charge current
100 A
Absorption charge voltage
28.5 V
Float charge voltage
26.5 V
Charge algorithm
Adaptive, 3-stage (IUoU)
AC input voltage range
90-265 V
Bluetooth (app)
No
Protections
Output short-circuit, overtemperature, high battery voltage, battery reverse polarity
Dimensions (H x W x D)
365 x 250 x 257 mm
Weight
10 kg
IP rating class
IP20-IP22 (indoor)
Ingress protection (IP)
IP21
Operating temperature
-40 ... 50 °C
Max. relative humidity
95 %
Colour
Blue
Material
Aluminium
Standards and compliance
EN-IEC 60335-1, EN 55014-1, EN-IEC 61000-3-2, EN 55014-2

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
