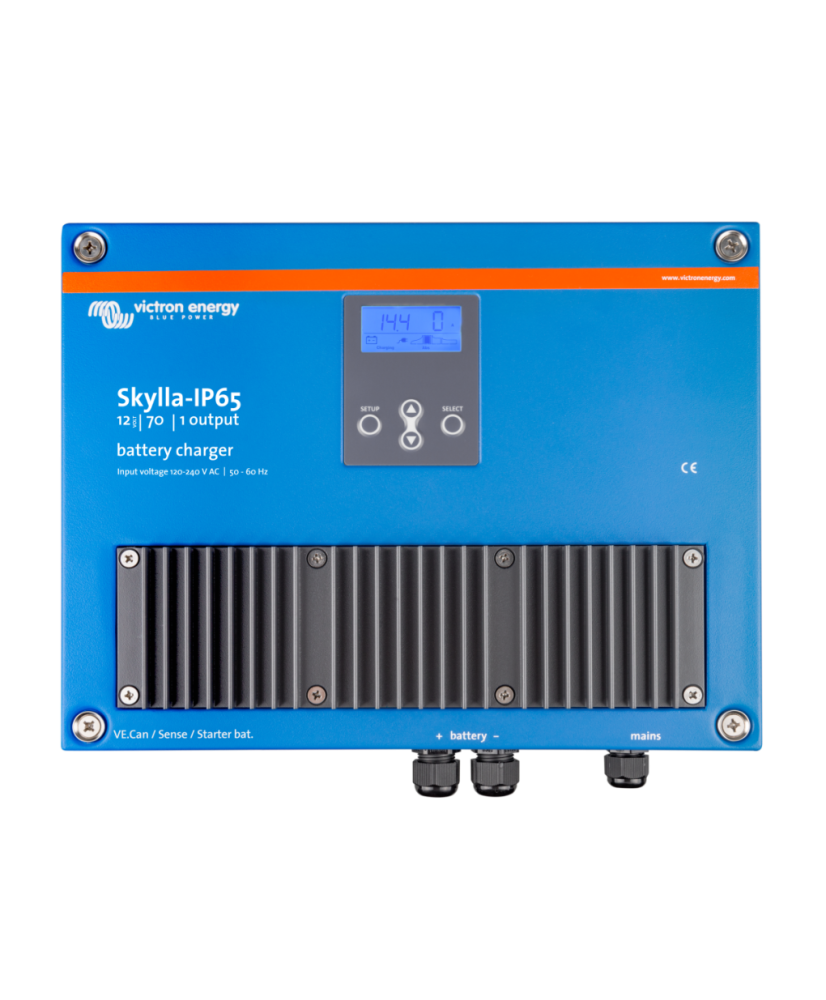

Skylla-IP65 12/70(1+1) 120-240V Victron Energy
  • Skylla-IP65 12/70(1+1) 120-240V Victron Energy
  • Skylla-IP65 12/70(1+1) 120-240V Victron Energy

Battery charger Victron Energy Skylla-IP65 12/70(1+1) 120-240V, 12 V, 70 A

€877 Save €132
€745 Tax included

€621 Tax excluded

The Skylla-IP65 12/70(1+1) 120-240V is a 12 V, 70 A battery charger with a waterproof IP65 housing and a universal 90-265 V input, delivering full power on any grid. The adaptive 7-stage algorithm includes a Li-ion profile. It has one main output and one isolated 3 A output for the starter battery. It is suited to marine, mobile and industrial applications, with heat, humidity and salty air.

Reference SKY012070000

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

Skylla-IP65 12/70(1+1) 120-240V - IP65 waterproof battery charger 12V 70A

The Skylla-IP65 12/70(1+1) 120-240V is a 12 V, 70 A battery charger with a waterproof IP65 housing and a universal 90-265 V input, delivering full power on any grid. The adaptive 7-stage algorithm includes a Li-ion profile. It has one main output and one isolated 3 A output for the starter battery. It is suited to marine, mobile and industrial applications, with heat, humidity and salty air.

Key features:

  • Battery voltage: 12 V
  • Charging current: 70 A
  • Charging outputs: 1 main + 1 isolated at 3 A
  • Charging algorithm: adaptive, 7 stages, Li-ion profile
  • Protection rating: IP65, steel housing with epoxy powder coating
  • Interface: VE.Can (NMEA 2000), LCD display, synchronised parallel operation

A powerful, water-resistant and intelligent battery charger with a 7-stage charging algorithm, suitable for a wide range of battery types and chemistries, with a dedicated lithium-ion charging algorithm.

The wide-range universal input voltage adds flexibility to the installation: the charger keeps its full output power wherever it is used in the world.

The IP65 rating makes this charger particularly suitable for marine, mobile and industrial applications, and it can withstand harsh environmental conditions: heat, humidity and salty air.

Both models are available in two versions:

  • 3 full-rated outputs
  • 1 full-rated output with an isolated trickle-charge output (3 A) for a starter battery

Technical specifications

Nominal battery voltage12 V
Nominal charging current70 A
AC input voltage120 V or 230 V
AC input voltage range90 … 265 V
AC input voltage (class)120 V - 240 V
Maximum AC input current (2)12 A
AC input frequency range45 … 65 Hz
Number of charging outputs2
Power factor0.98
Absorption charging voltage14.4 V
Float charging voltage13.8 V
Storage mode charging voltage13.2 V
Number of full-current outputs1
Reduced-current outputYes
Starter battery charging current3 A
Charging algorithmAdaptive, 7-stage
Charging algorithm (lithium)Three-stage, with on-off control or via CAN bus
Temperature sensorIncluded
ProgrammableYes
Can be used as a power supplyYes
CAN portVE.Can, two RJ45 connectors, NMEA2000 protocol, non-isolated
Parallel operationYes, with VE.Can
Programmable relayDPST, AC ratings: 240 VAC / 4 A, DC ratings: 4 A up to 35 VDC, 1 A up to 60 VDC
Forced coolingYes
ProtectionsReverse battery polarity (fuse), Over-temperature, Output short circuit
Operating temperature range-20 … 60 °C
Maximum humidity95 %
AC connection terminalsscrew terminal 6 mm² (AWG 10)
Battery connection terminalsM6 bolts
MaterialSteel
ColourBlue (RAL 5012)
Protection ratingIP65
Weight6 kg
Height401 mm
Width265 mm
Depth151 mm
SafetyEN-IEC 60335-1, EN-IEC 60335-2-29
EmissionEN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
ImmunityEN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2

Data sheet

Reference
SKY012070000
EAN13
8719076051961
Brand
Victron Energy
Product type
Battery charger
Battery voltage
12 V
Battery outputs
2 (1+1 starter)
Charge current class
41-70 A
Max. charge current
70 A
Absorption charge voltage
14.4 V
Float charge voltage
13.8 V
Charge algorithm
Adaptive, 7-stage
AC input voltage range
90-265 V
Parallel operation
Yes
Bluetooth (app)
No
Communication interfaces
NMEA 2000
VE.Can
Programmable relay
Yes
Protections
Output short-circuit, overtemperature, battery reverse polarity
Dimensions (H x W x D)
401 x 265 x 151 mm
Weight
6 kg
IP rating class
IP65
Ingress protection (IP)
IP65
Operating temperature
-20 ... 60 °C
Max. relative humidity
95 %
Colour
Blue
Material
Steel
Standards and compliance
EN-IEC 60335-1, EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
