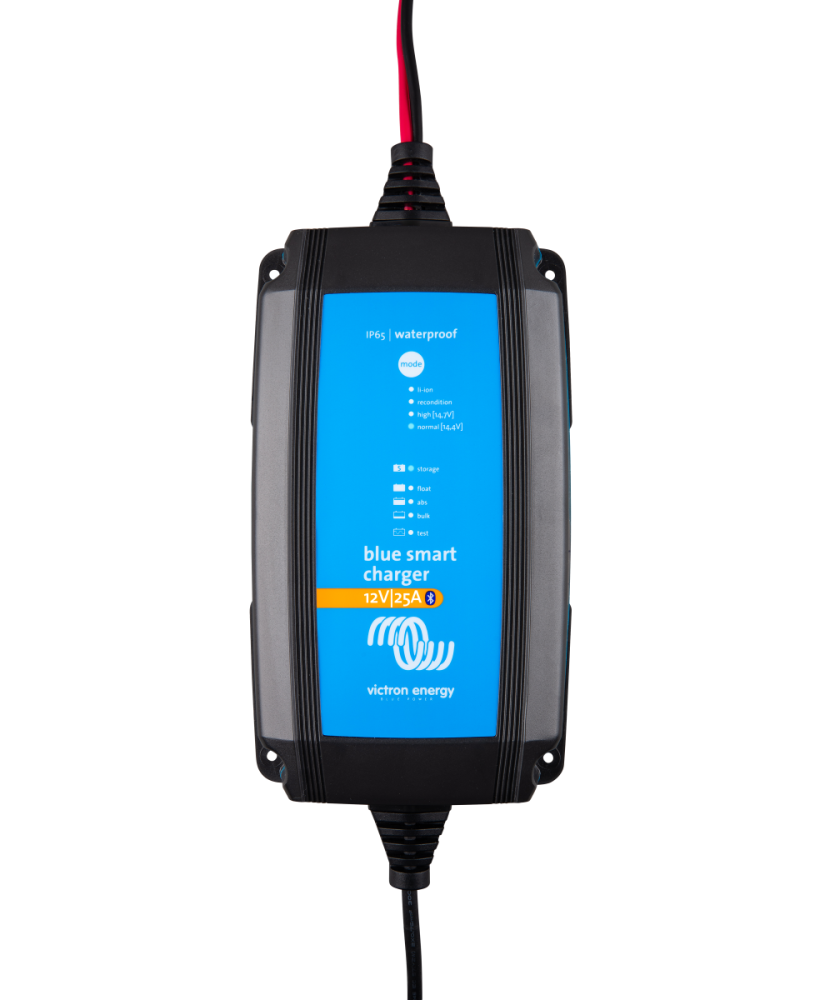

Blue Smart IP65 12/25(1) 230V CEE 7/17 - Smart battery charger 12V
Blue Smart IP65 12/25(1) 230V CEE 7/17 is a 12 V smart battery charger with built-in Bluetooth and an IP65 sealed housing, delivering up to 25 A with an adaptive 7-stage algorithm. The higher current makes it suitable for large-capacity batteries in camper vans and boats, as well as in the workshop. It is lithium compatible and can also operate as a power supply.
Main features:
- Battery voltage: 12 V
- Charge current: 25 A, low mode 10 A
- Charge algorithm: adaptive 7-stage, lithium compatible, recovers batteries from 0 V
- AC input: 180-265 V AC, CEE 7/17 plug
- Connectivity: built-in Bluetooth, VictronConnect app
- Housing and protections: IP65, fanless, protected against reverse polarity, short circuit, overheating
The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
New: IP65 6V/12V 1.1A
New: IP65 12/5 replaced by smaller equivalent model: IP65s 12/5
Technical specifications
| Nominal battery voltage | 12 V |
|---|
| Nominal charge current | 25 A |
|---|
| Charge current (low mode) | 10 A |
|---|
| AC input voltage range | 180 … 265 VAC |
|---|
| AC input voltage (class) | 230 V |
|---|
| AC input frequency range | 45 … 65 Hz |
|---|
| Number of charge outputs | 1 |
|---|
| Efficiency | 94 % |
|---|
| Standby power consumption | 0.5 W |
|---|
| Charge algorithm | Adaptive, 7-stage |
|---|
| Lithium compatible | Yes |
|---|
| Temperature compensation | -16 mV/°C |
|---|
| Back current drain | 1 mA |
|---|
| Back current drain per month | 0.7 Ah/mo |
|---|
| Power supply mode | Yes |
|---|
| Programmable | Yes |
|---|
| Bluetooth | Yes, -4dBm, 2402 - 2480 MHz |
|---|
| Protections | Battery reverse polarity, Output short-circuit, Over temperature |
|---|
| Operating temperature range | -40 … 60 °C |
|---|
| Full rated output up to | 30 °C |
|---|
| Maximum humidity | 95 % |
|---|
| AC connection terminals | Cable of 1.5 meter with CEE 7/17 plug |
|---|
| Battery connection terminals | Red and black 1.5 meter cable with plugable M8 eyelets or clamps |
|---|
| Protection category | IP65 |
|---|
| Weight | 1.9 kg |
|---|
| Height | 75 mm |
|---|
| Width | 140 mm |
|---|
| Depth | 240 mm |
|---|
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29 |
|---|
| Emission | EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3 |
|---|
| Immunity | EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
|---|
