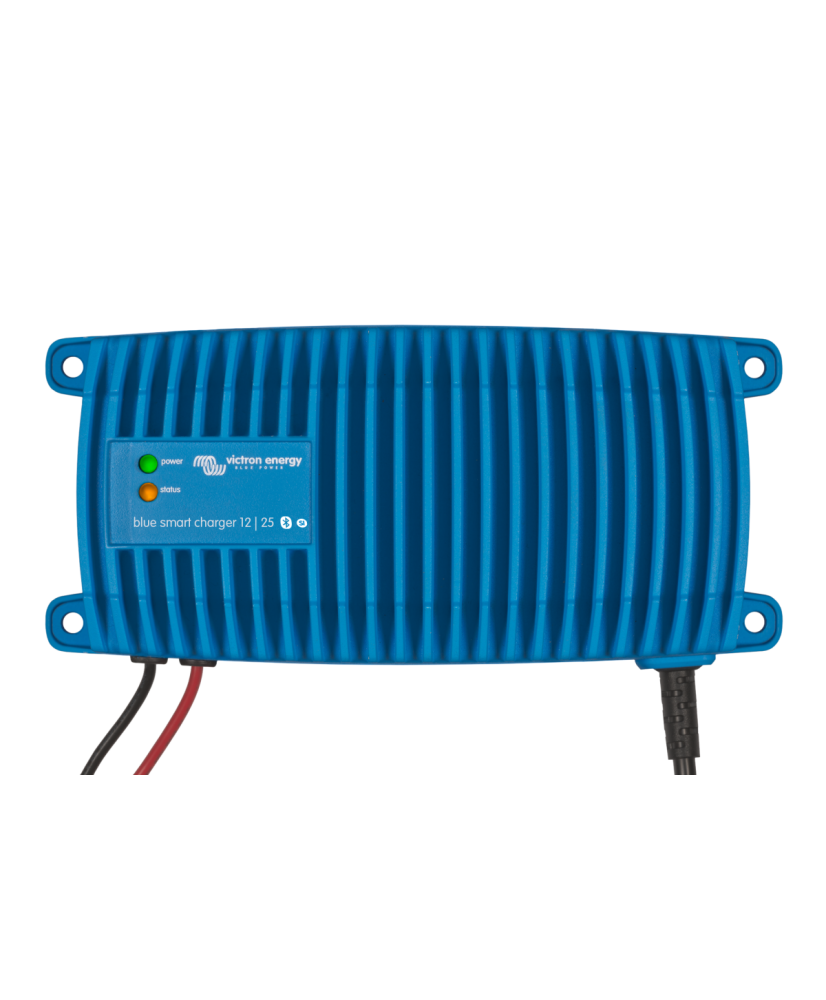

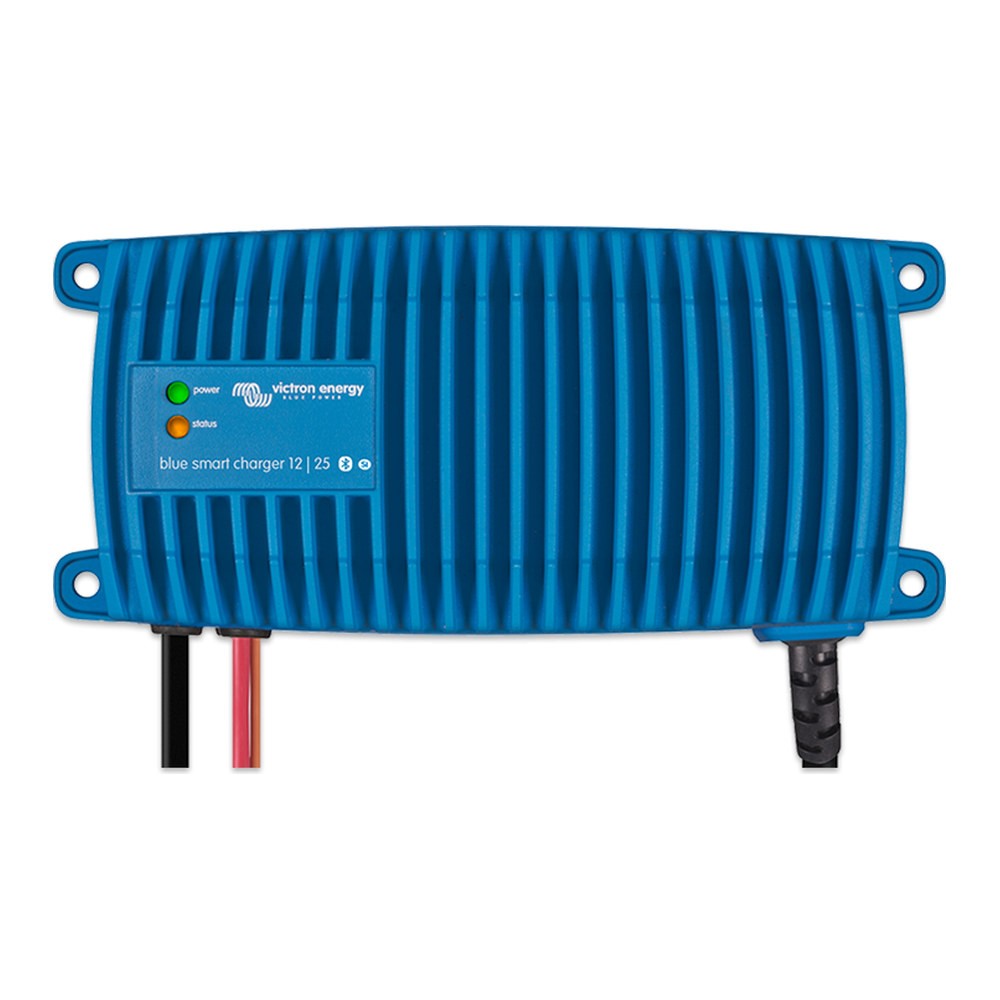

Blue Smart IP67 Charger 12/25(1+si) 230V CEE 7/7 Victron Energy
  • New


Blue Smart IP67 Charger 12/25(1+si) 230V CEE 7/7 Victron Energy

€200.00
Tax excluded

Blue Smart IP67 12/25(1+si) 230V CEE 7/7 is a fully waterproof (IP67) battery charger with built-in Bluetooth that charges 12 V batteries at up to 25 A using an adaptive 5-stage algorithm. The higher current makes it suitable for large-capacity batteries in camper vans and boats, as well as in the workshop. A start interrupt output prevents the engine from being started while the charger is connected.

Quantity

Blue Smart IP67 12/25(1+si) 230V CEE 7/7 - Smart battery charger 12V

Blue Smart IP67 12/25(1+si) 230V CEE 7/7 is a fully waterproof (IP67) battery charger with built-in Bluetooth that charges 12 V batteries at up to 25 A using an adaptive 5-stage algorithm. The higher current makes it suitable for large-capacity batteries in camper vans and boats, as well as in the workshop. A start interrupt output prevents the engine from being started while the charger is connected.

Main features:

  • Charge output: 12 V, 25 A, low mode 10 A
  • Start interrupt output: prevents engine start while plugged in, 0.5 A limit
  • Charge algorithm: adaptive 5-stage, lithium compatible, recovers batteries from 0 V
  • AC input: 180-265 V AC, CEE 7/7 plug
  • Connectivity: built-in Bluetooth for monitoring, settings and updates
  • Protection rating: IP67, fully encapsulated, shockproof and ignition protected

The Blue Smart IP67 Waterproof Charger is a professional battery charger with built-in Bluetooth. The Blue Smart IP67 Waterproof Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.

Technical specifications

Nominal battery voltage12 V
Nominal charge current25 A
Charge current (low mode)10 A
AC input voltage range180 … 265 VAC
AC input voltage (class)230 V
AC input frequency range45 … 65 Hz
Number of charge outputs1
Efficiency95 %
No-load power consumption0.5 W
Absorption charge voltageNormal: 14.4V High: 14.7V Lithium: 14.2V
Float charge voltageNormal: 13.8V High: 13.8V Li-ion: 13.5V
Storage charge voltageNormal: 13.2V High: 13.2V Li-ion: 13.5V
Charge algorithmAdaptive, 5-stage
Lithium compatibleYes
BluetoothYes
Communication portsBluetooth
Can be used as power supplyYes
ProtectionsBattery reverse polarity (fuse), Output short-circuit, Over temperature
ProgrammableYes
Operating temperature range-30 … 60 °C
Full rated output up to40 °C
Derating above 40 °C3 %
Maximum humidity100 %
Starter battery outputShort circuit proof, 1V below main output, 0.5A current limit
AC connection terminalsCable of 1.5 meter with BS 1363 plug (UK)
Battery connection terminalsRed and black 1.5 meter cable with M8 eyelets
MaterialAluminium
ColourBlue (RAL 5012)
Protection categoryIP67
Weight2.4 kg
Height99 mm
Width219 mm
Depth65 mm
SafetyEN-IEC 60335-1, EN-IEC 60335-2-29
EmissionEN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
ImmunityEN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
: BPC122514006
Out of Stock

Data sheet
