Blue Smart IP67 Charger 24/12(1) 230V CEE 7/7 Victron Energy
  • Blue Smart IP67 Charger 24/12(1) 230V CEE 7/7 Victron Energy
  • Blue Smart IP67 Charger 24/12(1) 230V CEE 7/7 Victron Energy
  • Blue Smart IP67 Charger 24/12(1) 230V CEE 7/7 Victron Energy

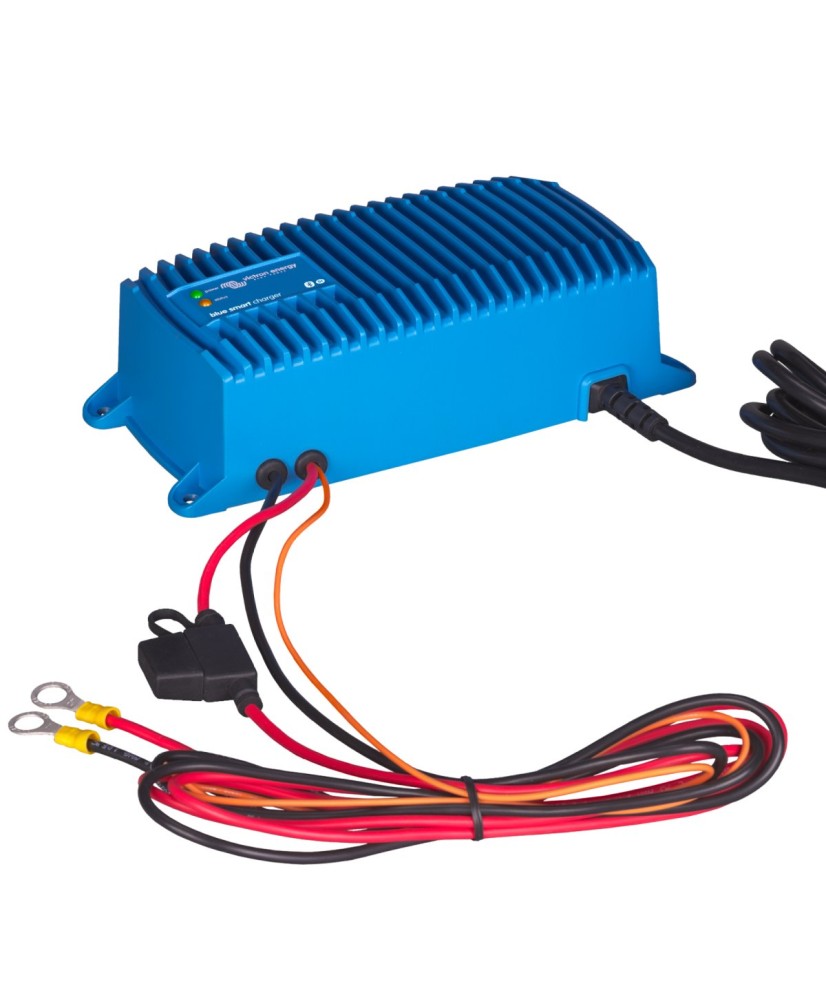

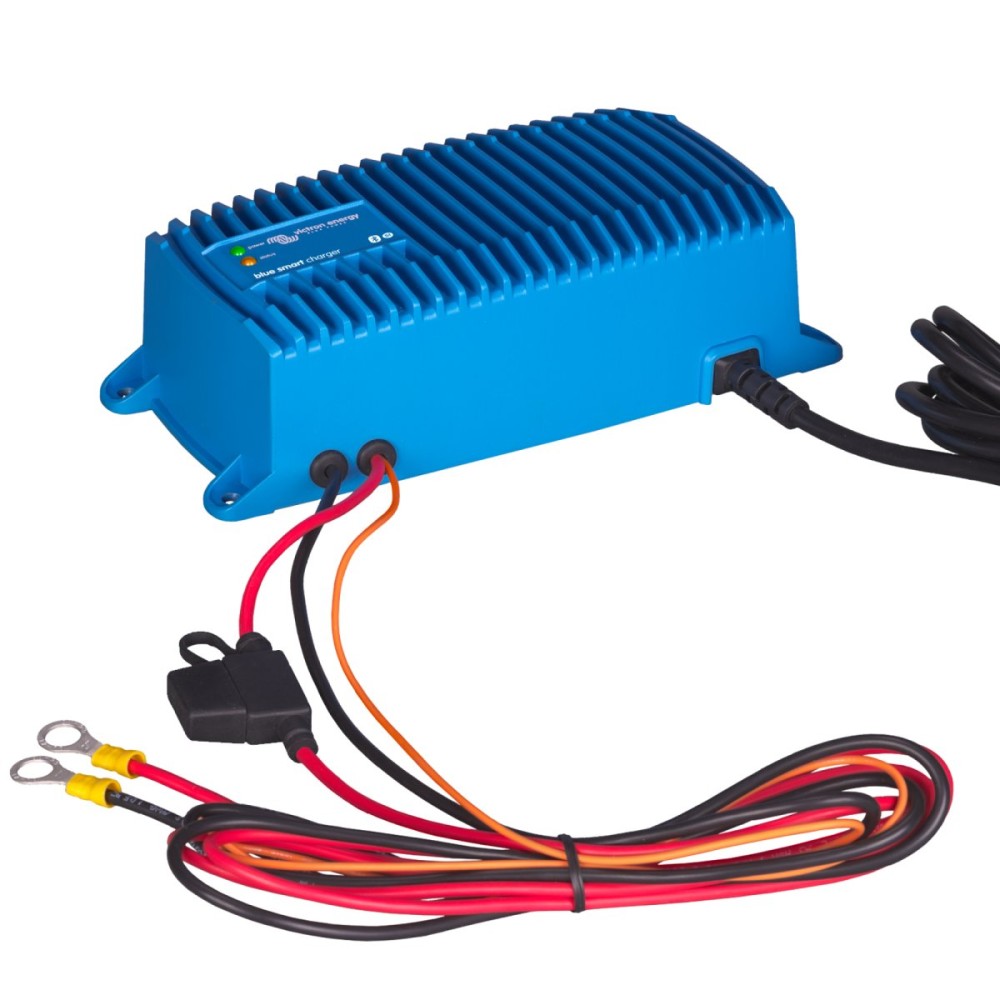

Charger Victron Energy Blue Smart IP67 24/12 (1) 230 V CEE 7/7

€205 Save €31
€174 Tax included

€145 Tax excluded

Blue Smart IP67 24/12(1) 230V CEE 7/7 is a 24 V battery charger with built-in Bluetooth, housed in a sealed aluminium enclosure rated IP67. It supplies 12 A (4 A in low mode) with an adaptive 5-stage algorithm compatible with lithium batteries, and suits workshops, cars, motorbikes, boats and camper vans.

Reference BPC241247006

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

Blue Smart IP67 24/12(1) 230V CEE 7/7 - Waterproof battery charger 24V

Blue Smart IP67 24/12(1) 230V CEE 7/7 is a 24 V battery charger with built-in Bluetooth, housed in a sealed aluminium enclosure rated IP67. It supplies 12 A (4 A in low mode) with an adaptive 5-stage algorithm compatible with lithium batteries, and suits workshops, cars, motorbikes, boats and camper vans.

Main features:

  • Battery voltage: 24 V
  • Charge current: 12 A (low mode 4 A)
  • Charge algorithm: adaptive 5-stage, lithium compatible, recovers batteries from 0 V
  • Efficiency: 96 %
  • Connectivity: built-in Bluetooth for monitoring, settings and updates
  • Protection rating: IP67, fully encapsulated, shockproof and ignition protected

The Blue Smart IP67 Waterproof Charger is a professional battery charger with built-in Bluetooth. The Blue Smart IP67 Waterproof Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.

Technical specifications

Nominal battery voltage24 V
Nominal charge current12 A
Charge current (low mode)4 A
AC input voltage range180 … 265 VAC
AC input voltage (class)230 V
AC input frequency range45 … 65 Hz
Number of charge outputs1
Efficiency96 %
No-load power consumption0.5 W
Absorption charge voltageNormal: 28.8V High: 29.4V Lithium: 28.4V
Float charge voltageNormal: 27.6V High: 27.6V Li-ion: 27.0V
Storage charge voltageNormal: 26.4V High: 26.4V Li-ion: 27.0V
Charge algorithmAdaptive, 5-stage
Lithium compatibleYes
BluetoothYes
Communication portsBluetooth
Can be used as power supplyYes
ProtectionsAC voltage on inverter output, Output short-circuit, Over temperature
ProgrammableYes
Operating temperature range-30 … 60 °C
Full rated output up to40 °C
Derating above 40 °C3 %
Maximum humidity100 %
Starter battery outputNo
AC connection terminalsCable of 1.5 meter with BS 1363 plug (UK)
Battery connection terminalsRed and black 1.5 meter cable with M8 eyelets
MaterialAluminium
ColourBlue (RAL 5012)
Protection categoryIP67
Weight2.4 kg
Height99 mm
Width219 mm
Depth65 mm
SafetyEN-IEC 60335-1, EN-IEC 60335-2-29
EmissionEN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
ImmunityEN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2

Data sheet

Reference
BPC241247006
EAN13
8719076052449
Brand
Victron Energy
Product type
Battery charger
Maximum efficiency
96 %
Zero-load power
0.5 W
Battery voltage
24 V
Battery outputs
1
Charge current class
11-20 A
Max. charge current
12 A
Absorption charge voltage
28.8 V
Float charge voltage
27.6 V
Charge algorithm
Adaptive, 5-stage
AC input voltage range
180-265 V
Bluetooth (app)
Yes
Communication interfaces
Bluetooth
Protections
Output short-circuit, overtemperature, battery reverse polarity
Dimensions (H x W x D)
99 x 219 x 65 mm
Weight
2.4 kg
IP rating class
IP67
Ingress protection (IP)
IP67
Operating temperature
-20 ... 60 °C
Max. relative humidity
100 %
Colour
Blue
Material
Aluminium
Standards and compliance
EN-IEC 60335-1, EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
