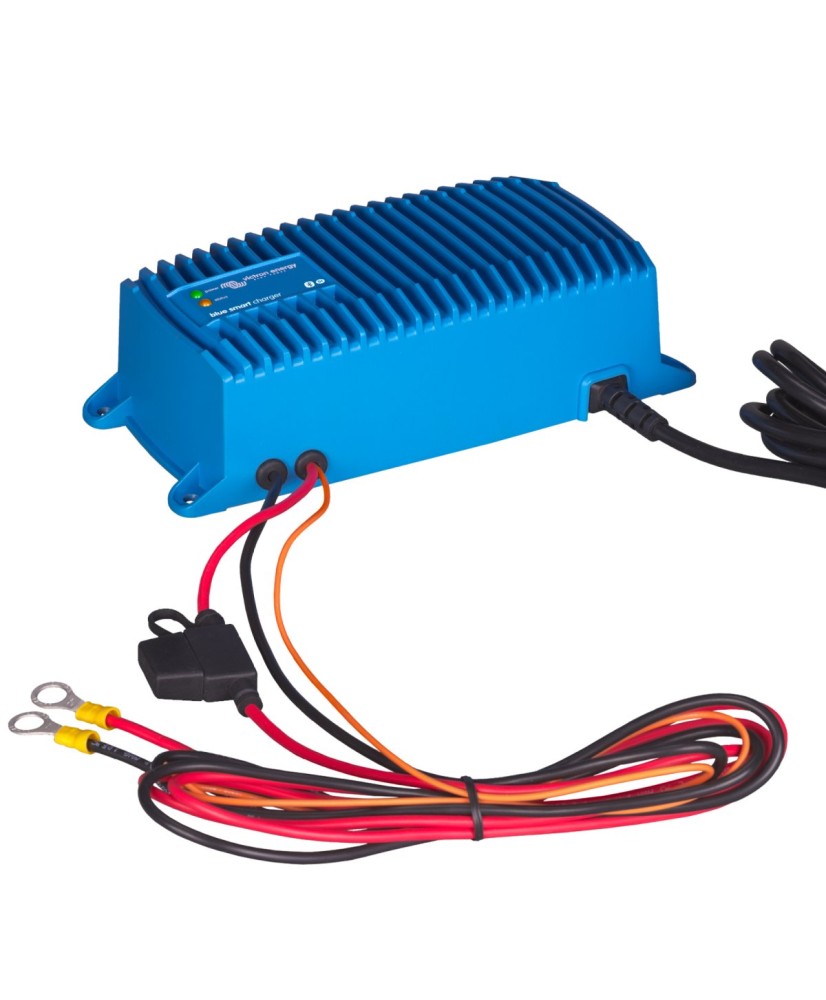

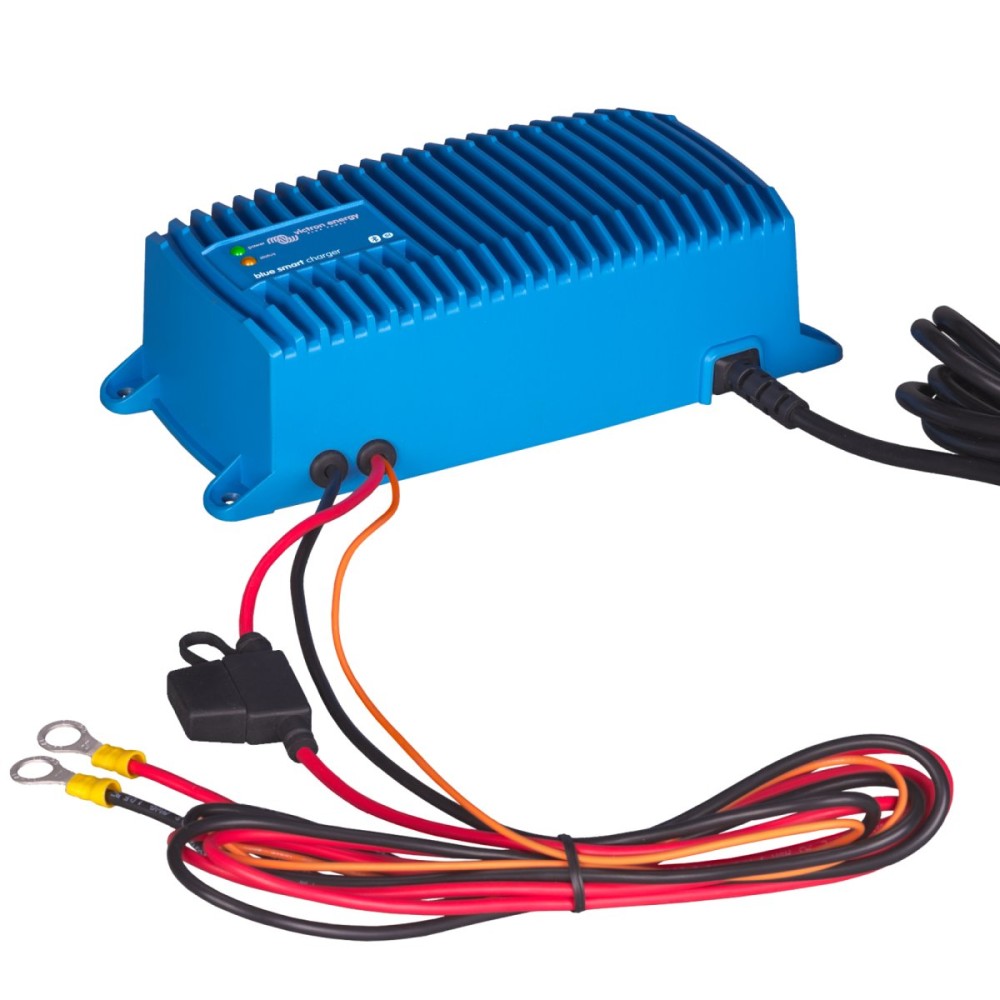

Blue Smart IP67 12/13(1) 230V CEE 7/7 - Smart battery charger 12V
Blue Smart IP67 12/13(1) 230V CEE 7/7 is a fully waterproof (IP67) battery charger with built-in Bluetooth that charges 12 V batteries at up to 13 A using an adaptive 5-stage algorithm. It is used in the workshop and on cars, motorbikes, boats and camper vans. It is lithium compatible and can also be used as a power supply.
Main features:
- Battery voltage: 12 V
- Charge current: 13 A, low mode 4 A
- Charge algorithm: adaptive 5-stage, lithium compatible, recovers batteries from 0 V
- AC input: 180-265 V AC, CEE 7/7 plug
- Connectivity: built-in Bluetooth for monitoring, settings and updates
- Protection rating: IP67, fully encapsulated, shockproof and ignition protected
The Blue Smart IP67 Waterproof Charger is a professional battery charger with built-in Bluetooth. The Blue Smart IP67 Waterproof Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
Technical specifications
| Nominal battery voltage | 12 V |
|---|
| Nominal charge current | 13 A |
|---|
| Charge current (low mode) | 4 A |
|---|
| AC input voltage range | 180 … 265 VAC |
|---|
| AC input voltage (class) | 230 V |
|---|
| AC input frequency range | 45 … 65 Hz |
|---|
| Number of charge outputs | 1 |
|---|
| Efficiency | 93 % |
|---|
| No-load power consumption | 0.5 W |
|---|
| Absorption charge voltage | Normal: 14.4V High: 14.7V Lithium: 14.2V |
|---|
| Float charge voltage | Normal: 13.8V High: 13.8V Li-ion: 13.5V |
|---|
| Storage charge voltage | Normal: 13.2V High: 13.2V Li-ion: 13.5V |
|---|
| Charge algorithm | Adaptive, 5-stage |
|---|
| Lithium compatible | Yes |
|---|
| Bluetooth | Yes |
|---|
| Communication ports | Bluetooth |
|---|
| Can be used as power supply | Yes |
|---|
| Protections | Battery reverse polarity (fuse), Output short-circuit, Over temperature |
|---|
| Programmable | Yes |
|---|
| Operating temperature range | -30 … 60 °C |
|---|
| Full rated output up to | 40 °C |
|---|
| Derating above 40 °C | 3 % |
|---|
| Maximum humidity | 100 % |
|---|
| Starter battery output | No |
|---|
| AC connection terminals | Cable of 1.5 meter with BS 1363 plug (UK) |
|---|
| Battery connection terminals | Red and black 1.5 meter cable with M8 eyelets |
|---|
| Material | Aluminium |
|---|
| Colour | Blue (RAL 5012) |
|---|
| Protection category | IP67 |
|---|
| Weight | 1.8 kg |
|---|
| Height | 85 mm |
|---|
| Width | 211 mm |
|---|
| Depth | 60 mm |
|---|
| Safety | EN-IEC 60335-2-29, EN-IEC 60335-1 |
|---|
| Emission | EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3 |
|---|
| Immunity | EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
|---|
