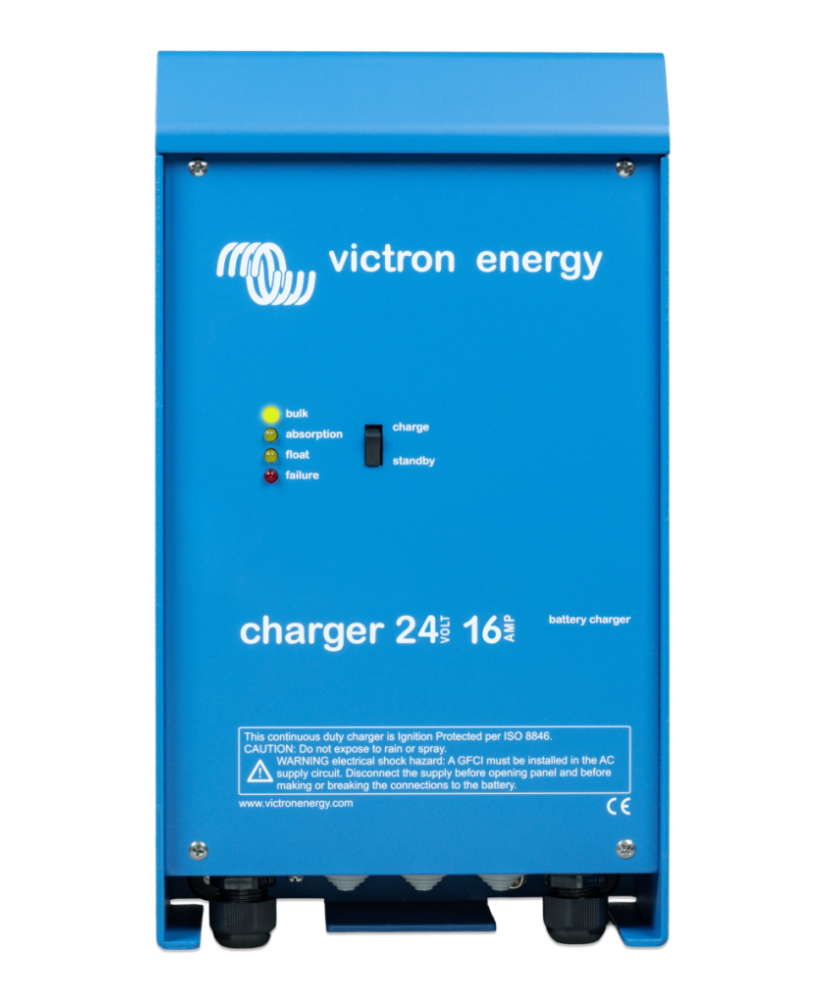

Phoenix Charger 24/16 (2+1) 120-240V - Battery charger 24 V, 16 A, 3 outputs
The Phoenix Charger 24/16 (2+1) 120-240V is a 24 V battery charger with two full-rated outputs and a third 4 A output for the starter battery. It uses a microprocessor-controlled adaptive 4-stage charge characteristic that can be preset for different battery types, with a universal 90-265 V, 50/60 Hz input.
Main features:
- Battery voltage: 24 V
- Charge current: 16 A (2 outputs) + 4 A for starter battery
- Charge algorithm: adaptive, 4-stage (bulk, absorption, float, storage)
- Power supply: 90-265 V AC, 45-65 Hz, or 90-400 V DC
- Recommended capacity: 100-200 Ah
- Temperature sensor: included, temperature-compensated charging
Adaptive 4-stage charge characteristic: bulk - absorption - float - storage. Two full rated outputs and one 4 Amp output. Universal input 90-265V, 50/60Hz. The Charger features a microprocessor controlled adaptive battery management system that can be pre-set to suit different types of batteries. The adaptive feature will automatically optimise the charge process relative to the way the battery is being used.
Technical specifications
| Nominal battery voltage | 24 V |
|---|
| AC input voltage range | 90 … 265 V |
|---|
| AC input voltage (class) | 120 V - 240 V |
|---|
| DC input voltage range | 90 … 400 V |
|---|
| AC input frequency range | 45 … 65 Hz |
|---|
| Number of charge outputs | 3 |
|---|
| Power factor | 1 |
|---|
| Absorption charge voltage | 28.8 V |
|---|
| Float charge voltage | 27.6 V |
|---|
| Storage charge voltage | 26.4 V |
|---|
| Nominal charge current | 16 A |
|---|
| Starter battery charge current | 4 A |
|---|
| Charge algorithm | Adaptive, 4-stage |
|---|
| Recommended battery capacity | 100 … 200 Ah |
|---|
| Temperature sensor | Included |
|---|
| Programmable | Settings can be change via a data port. RJ45 UTP cable and MK2-USB interface are required (not included) |
|---|
| Can be used as power supply | Yes |
|---|
| Forced cooling | Yes |
|---|
| Protections | Output short-circuit, Over temperature, High battery voltage, Battery reverse polarity |
|---|
| Operating temperature range | -20 … 60 °C |
|---|
| Maximum humidity | 95 % |
|---|
| AC connection terminals | Screw terminals 4 mm² (11 AWG) |
|---|
| Battery connection terminals | M6 bolts |
|---|
| Material | Aluminium |
|---|
| Colour | Blue (RAL 5012) |
|---|
| Protection category | IP21 |
|---|
| Weight | 3.8 kg |
|---|
| Height | 350 mm |
|---|
| Width | 200 mm |
|---|
| Depth | 108 mm |
|---|
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29 |
|---|
| Emission and immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3 |
|---|
| Vibration | IEC68-2-6:10-150Hz/1.0G |
|---|
