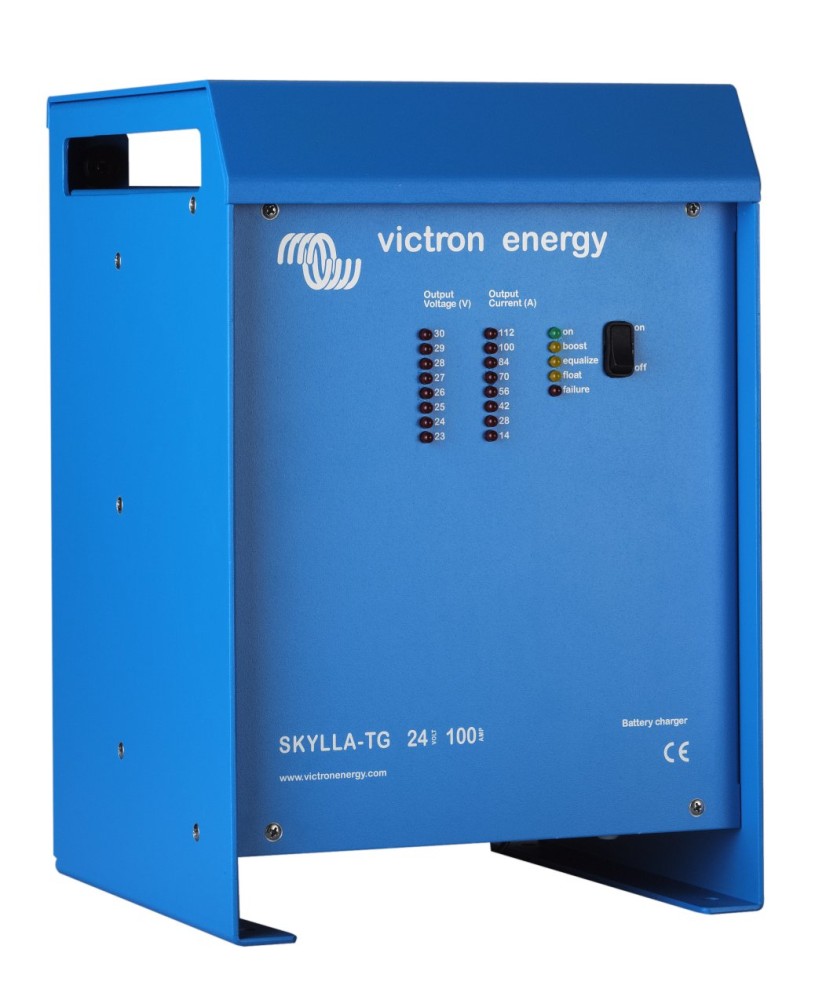

Battery charger Victron Energy Skylla-TG, 24 V, 100 A, 230 V, 2 outputs
  • Battery charger Victron Energy Skylla-TG, 24 V, 100 A, 230 V, 2 outputs
  • Battery charger Victron Energy Skylla-TG, 24 V, 100 A, 230 V, 2 outputs

Battery charger Victron Energy Skylla-TG, 24 V, 100 A, 230 V, 2 outputs

€1,596 Save €240
€1,356 Tax included

€1,130 Tax excluded

Skylla-TG 24/100(1+1) 230V is a 24 V battery charger with a nominal charge current of 100 A and a 230 V AC input. It has one full-rated main output and a second 4 A output for a starter battery. Charge voltage is adjustable and temperature-compensated via the included sensor. It is sized for battery banks of 500-1000 Ah.

Reference SDTG2401001

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

Skylla-TG 24/100(1+1) 230V - Battery charger 24V 100A

Skylla-TG 24/100(1+1) 230V is a 24 V battery charger with a nominal charge current of 100 A and a 230 V AC input. It has one full-rated main output and a second 4 A output for a starter battery. Charge voltage is adjustable and temperature-compensated via the included sensor. It is sized for battery banks of 500-1000 Ah.

Main features:

  • Battery voltage: 24 V
  • Charge current: 100 A
  • AC input: 185-264 V, 45-65 Hz
  • Charge outputs: 1 main + 1 × 4 A (starter)
  • Charge algorithm: IUoU, three-stage
  • Absorption / float: 28.5 V / 26.5 V

One full rated output and one 4 Amp output. Charge voltage can be precisely adjusted to suit any battery system. The input for the charger is 230V at 50/60HZ. Charge voltage can be measured directly on the battery terminals in order to compensate for voltage loss due to cable resistance. An external sensor allows measuring battery temperature and compensating charge voltage accordingly.

Technical specifications

Nominal battery voltage24 V
Nominal charge current100 A
AC input voltage230V
AC input voltage range185 … 264 V
AC input voltage (class)230 V
DC input voltage range180 … 400 V
AC input frequency range45 … 65 Hz
Number of charge outputs2
Power factor1
Absorption charge voltage28.5 V
Float charge voltage26.5 V
Charge current, main battery (110 VAC)60 A
Starter battery charge current4 A
Charge algorithmIUoU, three stage charging
Recommended battery capacity500 … 1000 Ah
Temperature sensorIncluded
ProgrammableSettings can be changed via DIP switches and potentiometers
Can be used as power supplyYes
Remote alarmPotential free contacts 60V / 1A (1x NO and 1x NC)
Forced coolingYes
ProtectionsOutput short-circuit, High battery voltage, Over temperature, Battery reverse polarity
Operating temperature range-40 … 50 °C
Maximum humidity95 %
MaterialAluminium
ColourBlue (RAL 5012)
Protection categoryIP21
Weight10 kg
Height365 mm
Width250 mm
Depth257 mm
AC connection terminalsscrew-clamp 2.5 mm² (AWG 6)
Battery connection terminalsM8 bolts
SafetyEN-IEC 60335-1, EN-IEC 60335-2-29
EmissionEN 55014-1, EN-IEC 61000-3-2
ImmunityEN 55014-2, EN-IEC 61000-3-3

Data sheet

Reference
SDTG2401001
EAN13
8719076025788
Brand
Victron Energy
Product type
Battery charger
Battery voltage
24 V
Battery outputs
2 (1+1 starter)
Charge current class
71+ A
Max. charge current
100 A
Absorption charge voltage
28.5 V
Float charge voltage
26.5 V
Charge algorithm
Adaptive, 3-stage (IUoU)
AC input voltage range
185-264 V
Bluetooth (app)
No
Protections
Output short-circuit, overtemperature, high battery voltage, battery reverse polarity
Dimensions (H x W x D)
365 x 250 x 257 mm
Weight
10 kg
IP rating class
IP20-IP22 (indoor)
Ingress protection (IP)
IP21
Operating temperature
-40 ... 50 °C
Max. relative humidity
95 %
Colour
Blue
Material
Aluminium
Standards and compliance
EN-IEC 60335-1, EN 55014-1, EN-IEC 61000-3-2, EN 55014-2

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
