Blue Smart IP65 Charger 12/7(1) 230V CEE 7/17 Victron Energy
  • Blue Smart IP65 Charger 12/7(1) 230V CEE 7/17 Victron Energy
  • Blue Smart IP65 Charger 12/7(1) 230V CEE 7/17 Victron Energy
  • Blue Smart IP65 Charger 12/7(1) 230V CEE 7/17 Victron Energy

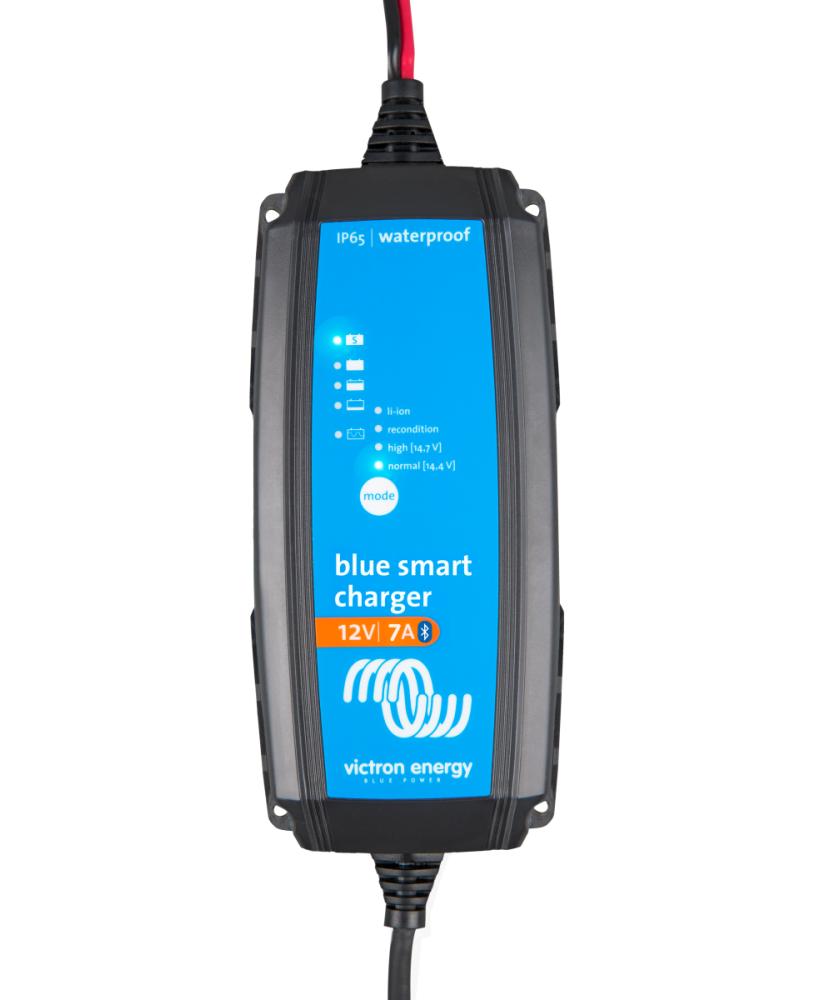

Charger Victron Energy Blue Smart IP65 12/7 (1) 230 V CEE 7/17

€128 Save €20
€108 Tax included

€90 Tax excluded

Blue Smart IP65 12/7(1) 230V CEE 7/17 is a 12 V smart battery charger with built-in Bluetooth and an IP65 sealed housing, delivering up to 7 A with an adaptive 7-stage algorithm. It is used in the workshop and on cars, motorbikes, boats and camper vans. It is lithium compatible and can also operate as a power supply.

Reference BPC120731064R

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

Blue Smart IP65 12/7(1) 230V CEE 7/17 - Smart battery charger 12V

Blue Smart IP65 12/7(1) 230V CEE 7/17 is a 12 V smart battery charger with built-in Bluetooth and an IP65 sealed housing, delivering up to 7 A with an adaptive 7-stage algorithm. It is used in the workshop and on cars, motorbikes, boats and camper vans. It is lithium compatible and can also operate as a power supply.

Main features:

  • Battery voltage: 12 V
  • Charge current: 7 A, low mode 2 A
  • Charge algorithm: adaptive 7-stage, lithium compatible, recovers batteries from 0 V
  • AC input: 180-265 V AC, CEE 7/17 plug
  • Connectivity: built-in Bluetooth, VictronConnect app
  • Housing and protections: IP65, fanless, protected against reverse polarity, short circuit, overheating

The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.

New: IP65 6V/12V 1.1A

New: IP65 12/5 replaced by smaller equivalent model: IP65s 12/5

Technical specifications

Nominal battery voltage12 V
Nominal charge current7 A
Charge current (low mode)2 A
AC input voltage range180 … 265 VAC
AC input voltage (class)230 V
AC input frequency range45 … 65 Hz
Number of charge outputs1
Efficiency94 %
Standby power consumption0.5 W
Absorption charge voltageNormal: 14.4V High: 14.7V Lithium: 14.2V
Float charge voltageNormal: 13.8V High: 13.8V Li-ion: 13.5V
Storage charge voltageNormal: 13.2V High: 13.2V Li-ion: 13.5V
Charge algorithmAdaptive, 7-stage
Lithium compatibleYes
Temperature compensation-16 mV/°C
Back current drain1 mA
Back current drain per month0.7 Ah/mo
Power supply modeYes
ProgrammableYes
BluetoothYes, -4dBm, 2402 - 2480 MHz
ProtectionsBattery reverse polarity, Output short-circuit, Over temperature
Operating temperature range-40 … 60 °C
Full rated output up to30 °C
Maximum humidity95 %
AC connection terminalsCable of 1.5 meter with CEE 7/17 plug
Battery connection terminalsRed and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection categoryIP65
Weight0.9 kg
Height47 mm
Width95 mm
Depth182 mm
SafetyEN-IEC 60335-1, EN-IEC 60335-2-29
EmissionEN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
ImmunityEN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2

Data sheet

Reference
BPC120731064R
EAN13
8719076017943
Brand
Victron Energy
Product type
Battery charger
Maximum efficiency
94 %
Zero-load power
0.5 W
Battery voltage
12 V
Battery outputs
1
Charge current class
0-10 A
Max. charge current
7 A
Absorption charge voltage
14.4 V
Float charge voltage
13.8 V
Charge algorithm
Adaptive, 7-stage
AC input voltage range
180-265 V
Bluetooth (app)
Yes
Communication interfaces
Bluetooth
Protections
Output short-circuit, overtemperature, battery reverse polarity
Dimensions (H x W x D)
47 x 95 x 190 mm
Weight
0.9 kg
IP rating class
IP65
Ingress protection (IP)
IP65
Operating temperature
-40 ... 60 °C
Max. relative humidity
95 %
Standards and compliance
EN-IEC 60335-1, EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Warranty
5 years

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
