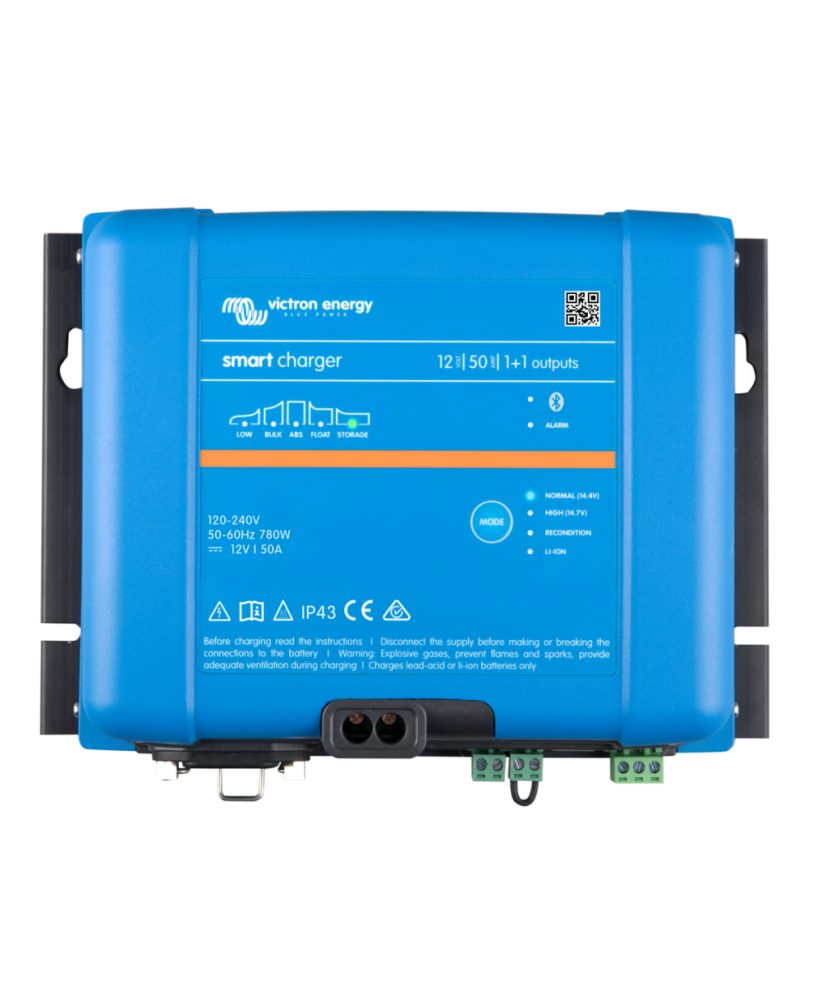

Smart IP43 Charger 12/50(1+1) 120-240V Victron Energy
  • Smart IP43 Charger 12/50(1+1) 120-240V Victron Energy
  • Smart IP43 Charger 12/50(1+1) 120-240V Victron Energy

Smart IP43 Charger 12/50(1+1) 120-240V Victron Energy

€519 Save €78
€441 Tax included

€368 Tax excluded

Smart IP43 12/50(1+1) 120-240V is an adaptive charger for 12V batteries with one main output and a low-current starter battery output, intended for marine, eMobility, leisure, off-grid and industrial applications. Built-in Bluetooth allows monitoring, configuration and alarm setup in VictronConnect, while VE.Direct connects it to a GX device for remote monitoring via VRM.

Reference PSC125051095

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

Smart IP43 12/50(1+1) 120-240V - Smart battery charger 12V

Smart IP43 12/50(1+1) 120-240V is an adaptive charger for 12V batteries with one main output and a low-current starter battery output, intended for marine, eMobility, leisure, off-grid and industrial applications. Built-in Bluetooth allows monitoring, configuration and alarm setup in VictronConnect, while VE.Direct connects it to a GX device for remote monitoring via VRM.

Main features:

  • Battery voltage: 12 V
  • Charge current: 50 A (25 A in low mode)
  • Outputs: 1 main + 1 starter battery (max. 4 A)
  • Charge algorithm: adaptive 6-stage, LiFePO4 compatible
  • Power supply: 85-250 V AC or 90-375 V DC
  • Connectivity: Bluetooth, VE.Direct, VE.Smart Networking, programmable relay

The Smart IP43 Charger is an adaptive, intelligent charger available across all four common battery voltages: 12V, 24V, 36V and 48V, making it suitable for a wide range of applications including marine, eMobility, leisure and off-grid, and industrial.

With built-in Bluetooth, monitor, configure and set alarms directly from your phone using the VictronConnect app, or connect via VE.Direct to a GX device for full system integration and remote monitoring via the VRM Portal.

The adaptive 6-stage charging algorithm, VE.Smart Networking, LiFePO₄ compatibility, and fully programmable charge algorithm make the Smart IP43 a versatile and future-proof choice for any system from 12V to 48V.

Technical specifications

Nominal battery voltage12 V
AC input voltage range85 … 250 VAC
AC input voltage (class)120 V - 240 V
DC input voltage range90 … 375 VDC
AC input frequency range45 … 65 Hz
Number of charge outputs2
Power factor1
Back current drain1 mA
No-load power consumption1 W
Efficiency94 %
Absorption charge voltageNormal: 14.4V High: 14.7V Lithium: 14.2V
Float charge voltageNormal: 13.8V High: 13.8V Li-ion: 13.5V
Storage charge voltageNormal: 13.2V High: 13.2V Li-ion: 13.5V
Charge algorithmAdaptive, 6-stage
Lithium compatibleYes
Nominal charge current50 A
Charge current (low mode)25 A
Number of full-current outputs1
Low current outputYes
Temperature compensation-16 mV/°C
Temperature sensorOptional (Smart Battery Sense)
Power supply modeYes
Fully programmableYes
BluetoothYes, -4dBm, 2402 - 2480 MHz
Data communicationVE.Direct, Bluetooth
Remote on/off terminalYes
Programmable relaySPDT - 5 A up to 250 VAC / 5 A up to 28 VDC
ProtectionsBattery reverse polarity (fuse not user accessible), Output short-circuit, Over temperature
Operating temperature range-20 … 60 °C
Full rated output up to40 °C
Linear output derating20 %
Maximum humidity95 %
AC connection terminalsInlet IEC 320 C14 with retainer clip (AC cord ordered separately)
Battery connection terminalsScrew terminals 16 mm² (6 AWG)
Starter battery terminalsScrew terminal two pole
Remote on/off terminal connectionScrew terminal two pole
Relay terminal connectionScrew terminal 3-pole
MaterialAluminium
ColourBlue (RAL 5012)
Protection categoryIP43
Weight2.7 kg
Height180 mm
Width249 mm
Depth116 mm
SafetyEN-IEC 60335-1, EN-IEC 60335-2-29
EmissionEN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
ImmunityEN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
VibrationIEC68-2-6:10-150Hz/1.0G

Data sheet

Reference
PSC125051095
EAN13
8719076053507
Brand
Victron Energy
Product type
Battery charger
Maximum efficiency
94 %
Zero-load power
1 W
Battery voltage
12 V
Battery outputs
2 (1+1 starter)
Charge current class
41-70 A
Max. charge current
50 A
Absorption charge voltage
14.4 V
Float charge voltage
13.8 V
Charge algorithm
Adaptive, 6-stage
AC input voltage range
85-250 V
Bluetooth (app)
Yes
Communication interfaces
Bluetooth
VE.Direct
Programmable relay
Yes
Protections
Output short-circuit, overtemperature, battery reverse polarity
Dimensions (H x W x D)
180 x 249 x 116 mm
Weight
2.7 kg
IP rating class
IP43
Ingress protection (IP)
IP43
Operating temperature
-20 ... 60 °C
Max. relative humidity
95 %
Colour
Blue
Material
Aluminium
Standards and compliance
EN-IEC 60335-1, EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
