€883 Tax excluded

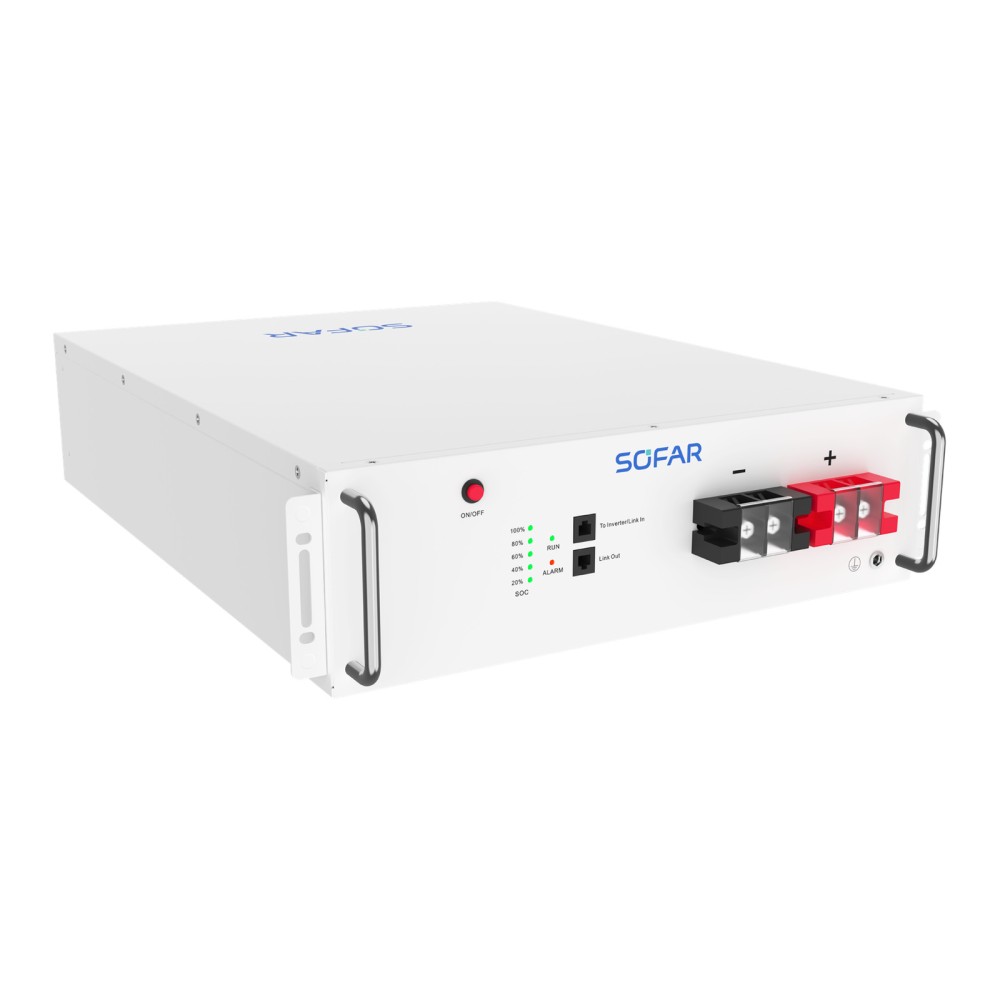

The SF-5KWH-L1 is a 51.2 V, 5.12 kWh LiFePO4 battery in 19-inch format with integrated BMS. The rated charge and discharge current is 50 A (2560 W), the depth of discharge is 90 % and the service life is at least 6000 cycles. The dimensions are 442 x 132 x 590 mm and the weight is 45 kg.
SF-5KWH-L1 is a low-voltage battery with LiFePO4 cells, 51.2 V and 5120 Wh, in the standard 19-inch format, which communicates with the inverter via CAN or RS485.
The battery has an integrated BMS that protects it from cell level up to module level, and the units network with each other automatically. It is mounted on the wall or on the floor, stacked, and can be expanded by parallel connection up to 16 units.
The protection rating is IP20, so the battery must be installed indoors only. Charging takes place between 0 and 55 °C and discharging between -20 and 60 °C, at a humidity of 5-95 % and an altitude of up to 4000 m. Communication with the inverter is via CAN or RS485.
| Cell type | LiFePO4 (lithium iron phosphate) |
|---|---|
| Total energy | 5.12 kWh |
| Nominal voltage | 51.2 V |
| Working voltage range | 44.8-57.6 V |
| Rated charge/discharge power | 2560 W / 2560 W |
| Rated charge/discharge current | 50 A / 50 A |
| Maximum charge/discharge current | 50 A / 100 A |
| Depth of discharge | 90 % |
| Maximum number of units in parallel | 16 |
| Communication | CAN / RS485 |
| Dimensions (W x H x D) | 442 x 132 x 590 mm |
| Weight | 45 kg |
| Protection rating | IP20 |
| Cooling | Natural |
| Operating temperature | Charging: 0 ... 55 °C; discharging: -20 ... 60 °C |
| Relative humidity | 5-95 % |
| Mounting | On wall or on floor |
| Maximum operating altitude | 4000 m |
| Number of cycles (0.2 C, 25 °C, depth of discharge 90 %) | At least 6000 |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
