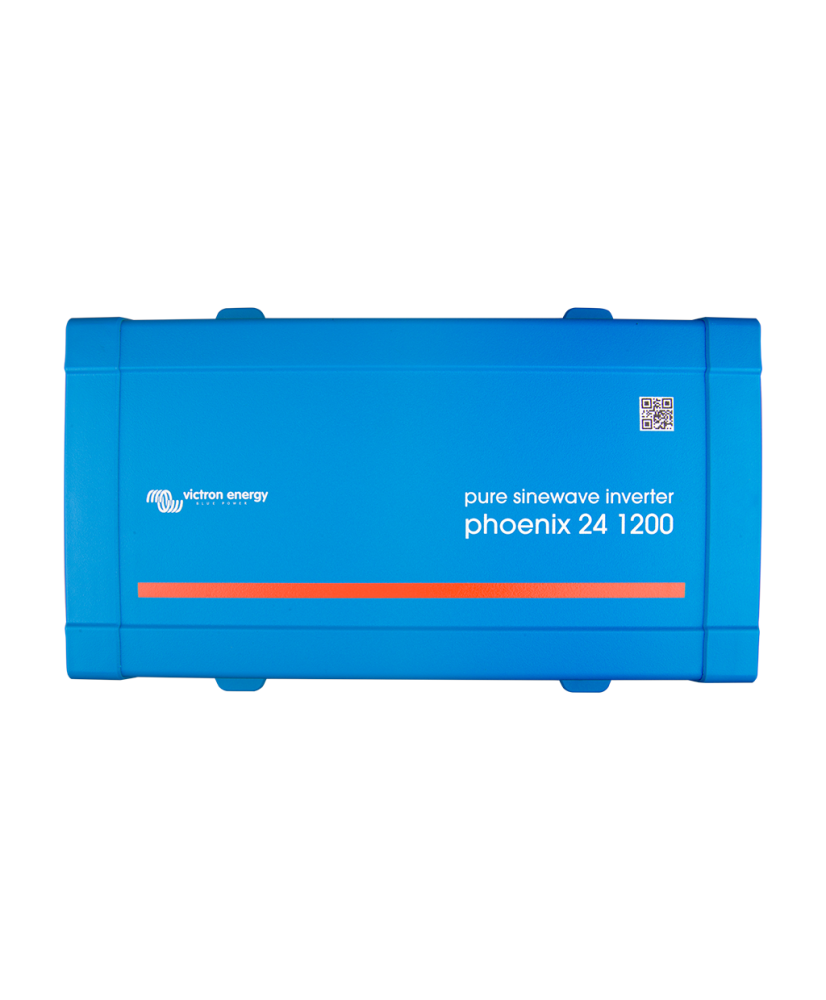

Invertor Phoenix 24/1200 VE.Direct Schuko Victron Energy

€348 Save €53
€295 Tax included

€246 Tax excluded

The Victron Phoenix 1200VA inverter is designed for professional use where reliability, efficiency, and consistent performance are required. It uses SinusMAX technology, which allows it to start heavy loads such as power tools or devices with high inrush currents.

Reference PIN242121200

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Victron Phoenix Inverter 1200VA with SinusMAX Technology - 24V

The Victron Phoenix 1200VA inverter is designed for professional use where reliability, efficiency, and consistent performance are required. It uses SinusMAX technology, which allows it to start heavy loads such as power tools or devices with high inrush currents.

Main Features:

  • Rated Power: 1200VA (1000W at 25°C / 850W at 40°C)
  • Peak Power: 2200W
  • Input Voltage: 24V DC (operating range: 18.4 - 34V)
  • Output Voltage: 110V or 230V AC ±3% / 50Hz or 60Hz ±0.1%
  • Max Efficiency: 91%
  • No-load Power Consumption: only 8W
  • Dimensions: 117 x 232 x 327 mm
  • Weight: 7.4 kg

SinusMAX Technology:

Provides reliable startup even for difficult loads. Unlike standard high-frequency inverters, the Phoenix model can easily power devices such as computers, tools, or other sensitive electronics.

Useful Functions:

  • Status LED for quick diagnostics
  • Remote on/off switch input - available on all models
  • Compatible with Filax automatic transfer switch: Less than 20 ms switch time - ideal for sensitive electronics

Build and Protection:

  • Protection rating: IP20
  • Active cooling: fan-cooled
  • Operating temperature range: -40°C to +65°C
  • Max humidity: 95% (non-condensing)

Certifications:

EN-IEC 60335-1, EN-IEC 62109-1, UL 458, EN 55014-1/2, IEC 61000-6-1/2/3

The Phoenix 1200VA inverter is a solid choice for solar systems that need dependable performance in a wide range of conditions.

Data sheet

Reference
PIN242121200
Product type
Inverter
Inverter type
Inverter (no charger)
Phases
Single-phase
Power class
1-2 kW
Continuous output power (VA, 25 °C)
1200 VA
Continuous output power (W, 25 °C)
1000 W
Peak power
2200 W
Maximum efficiency
91 %
Zero-load power
11 W
Output waveform
Pure sine wave
Battery voltage
24 V
DC input voltage range
18.4-34 V
AC output voltage
230 V
Output frequency
50 Hz
Communication interfaces
VE.Direct
Protections
Output short-circuit, overload, overtemperature, high battery voltage, low battery voltage, excessive DC ripple
Dimensions (H x W x D)
117 x 232 x 327 mm
Weight
7.4 kg
Ingress protection (IP)
IP21
Operating temperature
-40 ... 65 °C
Max. relative humidity
95 %
Colour
Blue
Material
Steel and plastic
Standards and compliance
EN-IEC 60335-1, ECE R10-4, EN 55014-1, EN 55014-2

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the manufacturer’s datasheet.
