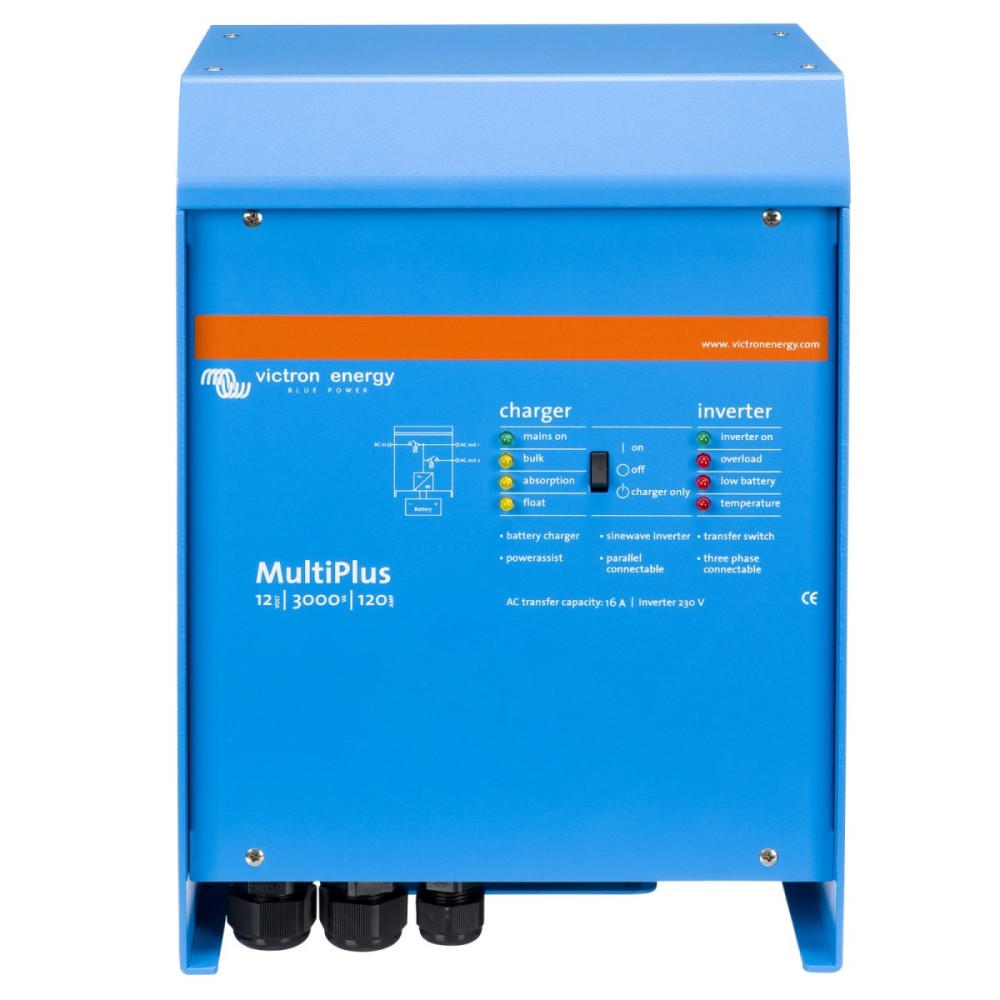

MultiPlus 12/3000/120-16 230V VE.Bus Victron Energy
  • MultiPlus 12/3000/120-16 230V VE.Bus Victron Energy
  • MultiPlus 12/3000/120-16 230V VE.Bus Victron Energy
  • MultiPlus 12/3000/120-16 230V VE.Bus Victron Energy
  • MultiPlus 12/3000/120-16 230V VE.Bus Victron Energy

Inverter/charger Victron Energy MultiPlus 12/3000/120-16 230V VE.Bus, 12 V, 3000 VA

€1,443 Save €217
€1,226 Tax included

€1,022 Tax excluded

MultiPlus 12/3000/120-16 230V VE.Bus is an inverter/charger that combines a pure sine-wave inverter and an adaptive charger for 12 V batteries in a single housing. It delivers 2400 W of continuous power and charges batteries at up to 120 A; PowerAssist technology supplements the power of the grid or generator, and units can operate in parallel or in three-phase.

Reference PMP122300001

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

MultiPlus 12/3000/120-16 230V VE.Bus - 12 V inverter/charger with PowerAssist

MultiPlus 12/3000/120-16 230V VE.Bus is an inverter/charger that combines a pure sine-wave inverter and an adaptive charger for 12 V batteries in a single housing. It delivers 2400 W of continuous power and charges batteries at up to 120 A; PowerAssist technology supplements the power of the grid or generator, and units can operate in parallel or in three-phase.

Key features:

  • Battery voltage: 12 V (9.5-17 V)
  • Continuous power: 2400 W / 3000 VA at 25 °C, peak 6000 W
  • Charging current: 120 A, adaptive 4-stage algorithm
  • Transfer relay: 16 A
  • Maximum efficiency: 93%
  • Seamless switchover: takes over the loads within 20 ms if the grid fails

As its name suggests, the Multiplus is a combination of an inverter and a charger in an elegant package. Its many features include a pure sine-wave inverter, adjustable charging, PowerAssist hybrid technology, and features for integration with multi-unit systems.

Technical specifications

Nominal battery voltage12 V
PowerControlYes
PowerAssistYes
Parallel operationYes
Three-phase operationYes
Number of AC inputs1
AC input voltage range (2)187 … 250 VAC
Frequency selection50 Hz or 60 Hz
Transfer switch rated current16 A
DC input voltage range9.5 … 17 VDC
DC input current250 V
AC output voltage230 VAC
AC output frequency50 Hz
Continuous output power at 25 °C (VA)3000 VA
Continuous output power at 25 °C (W)2400 W
Continuous output power at 40 °C2200 W
Continuous output power at 65 °C1700 W
Peak power6000 W
Maximum AC output current11 A
Maximum AC output current in case of fault32 A
Maximum efficiency93 %
No-load consumption20 W
No-load consumption in AES mode15 W
No-load consumption in search mode8 W
AC input voltage range187 … 265 VAC
AC input frequency range45 … 65 Hz
Power factor1
Charge voltage in absorption14.4 VDC
Float charge voltage13.8 VDC
Storage mode charge voltage13.2 VDC
Charging algorithmAdaptive, 4-stage
Maximum battery charge current120 A
Starter battery charging outputYes
Starter battery charging current4 A
Temperature sensorIncluded
Number of AC outputs2
Auxiliary outputYes
Programmable relayAC ratings: 230 V / 4 A, DC ratings: 4 A up to 35 VDC and 1 A up to 60 VDC
ProtectionsOutput short circuit, Overload, High battery voltage, Low battery voltage, Over-temperature, AC voltage at inverter output, Excessive DC ripple
Communication portVE.Bus
General-purpose communication portYes
Remote control terminalOn / Off / Charger only
Programmable via DIP switchesYes
Programmable by computerYes
Operating temperature range-40 … 65 °C
Fan-assisted coolingYes
Maximum humidity95 %
Maximum altitude2000 m
AC connection terminalsScrew terminals 13 mm² (6 AWG)
Battery connection terminalsM8 screws (two for the positive connection and two for the negative)
Remote terminal typeTwo-pole screw terminal
Relay terminalThree-pole screw terminal
VE.Bus terminal typeTwo RJ45 terminals
MaterialAluminium
ColourBlue (RAL 5012)
Ingress protectionIP20
Pollution degree2
OVC III / rated short-time withstand current (Icw)6kA 30mS
Weight18 kg
Height362 mm
Width258 mm
Depth218 mm
SafetyEN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission and immunityEN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive directiveECE R10-4
Anti-islanding standardPlease refer to our website

Data sheet

Reference
PMP122300001
EAN13
8719076045151
Brand
Victron Energy
Product type
Inverter/charger
Inverter type
Inverter/charger
Phases
Single-phase
Power class
2-3.5 kW
Continuous output power (VA, 25 °C)
3000 VA
Continuous output power (W, 25 °C)
2400 W
Peak power
6000 W
Maximum efficiency
93 %
Zero-load power
20 W
Output waveform
Pure sine wave
Battery voltage
12 V
DC input voltage range
9.5-17 V
Max. charge current
120 A
AC output voltage
230 V
Output frequency
50 Hz
AC input voltage range
187-265 V
Max. AC input current
16 A
Parallel operation
Yes
Communication interfaces
VE.Bus
Programmable relay
Yes
Protections
Output short-circuit, overload, overtemperature, high battery voltage, low battery voltage, excessive DC ripple, AC voltage on output
Dimensions (H x W x D)
364 x 295 x 221 mm
Weight
18 kg
Ingress protection (IP)
IP20
Operating temperature
-40 ... 65 °C
Max. relative humidity
95 %
Colour
Blue
Material
Aluminium
Standards and compliance
EN-IEC 60335-1, ECE R10-4, EN 55014-1, EN 55014-2

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
