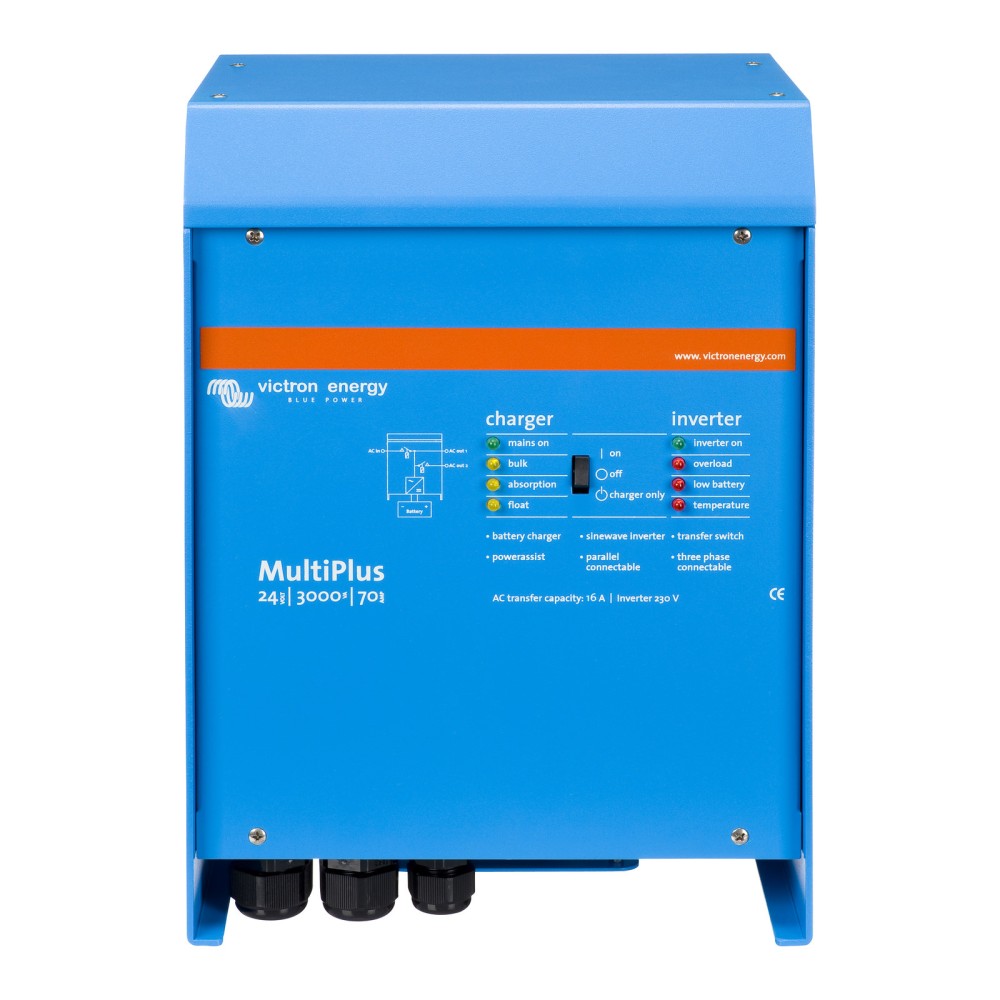

Victron Energy MultiPlus 24/3000/70-16 230V VE.Bus
  • Victron Energy MultiPlus 24/3000/70-16 230V VE.Bus
  • Victron Energy MultiPlus 24/3000/70-16 230V VE.Bus

Victron Energy MultiPlus 24/3000/70-16 230V VE.Bus

€1,440 Save €216
€1,224 Tax included

€1,020 Tax excluded

The MultiPlus 24/3000/70-16 230V VE.Bus is an inverter/charger for 24 V batteries, with 3000 VA (2400 W) continuous power, 6000 W peak power, a maximum charge current of 70 A and a maximum efficiency of 94 %. The transfer switch is rated at 16 A, parallel operation is possible, and communication is via VE.Bus.

Reference PMP242300001

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

MultiPlus 24/3000/70-16 230V VE.Bus - 24 V inverter/charger, 3000 VA

MultiPlus 24/3000/70-16 230V VE.Bus is a combined pure sine wave inverter/charger for 24 V batteries, with 3000 VA (2400 W) continuous power and a maximum charge current of 70 A. It offers adaptive charging, PowerAssist hybrid technology and a 16 A transfer switch in a single enclosure.

Key features:

  • Continuous power: 3000 VA (2400 W)
  • Peak power: 6000 W
  • Battery voltage: 24 V
  • Charge current: up to 70 A
  • Maximum efficiency: 94 %
  • Transfer switch: 16 A
  • Communication: VE.Bus

The PowerAssist function prevents overloading of a limited AC source, such as a generator or a shore connection. First, battery charging is automatically reduced when an overload would occur; the second level supplements the output of the generator or shore supply with energy taken from the battery.

The UPS function ensures uninterrupted power: if the grid fails, or when the shore supply or generator is disconnected, the inverter switches on automatically and takes over the connected loads in less than 20 milliseconds, so computers and other electronic equipment keep running. Up to 6 Multi units can operate in parallel for higher output, and three-phase or split-phase operation is possible, depending on the model.

Connected to a GX device, for example the Cerbo GX, the Multi can be monitored and controlled locally (LAN) or remotely over the internet, with the VRM app and the VRM portal, both free, from a phone, tablet, laptop or PC. Control includes adjusting the Multi and automatically starting a backup generator.

Technical specifications

Nominal battery voltage24 V
PowerControlYes
PowerAssistYes
Parallel operationYes
Three-phase operationYes
Number of AC inputs1
AC input voltage range (2)187 … 250 VAC
Frequency selection50Hz or 60Hz
Transfer switch rated current16 A
DC input voltage range19 … 33 VDC
DC input current125 V
AC output voltage230 VAC
AC output frequency50 Hz
Continuous output power at 25 °C (VA)3000 VA
Continuous output power at 25 °C (W)2400 W
Continuous output power at 40 °C2200 W
Continuous output power at 65 °C1700 W
Peak power6000 W
Maximum AC output current11 A
Maximum AC output current under fault32 A
Maximum efficiency94 %
No-load consumption20 W
No-load consumption in AES mode15 W
No-load consumption in search mode10 W
AC input voltage range187 … 265 VAC
AC input frequency range45 … 65 Hz
Power factor1
Charge voltage in absorption28.8 VDC
Float charge voltage27.6 VDC
Charge voltage in storage mode26.4 VDC
Charging algorithmAdaptive, 4-stage
Maximum battery charge current70 A
Starter battery charge outputYes
Starter battery charge current4 A
Temperature sensorIncluded
Number of AC outputs2
Auxiliary outputYes
Programmable relayAC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
ProtectionsOutput short circuit, Overload, High battery voltage, Low battery voltage, Over-temperature, AC voltage on the inverter output, Excessive DC ripple
Communication portVE.Bus
General-purpose communication portYes
Remote control terminalOn / Off / Charger only
Programmable via DIP switchesYes
Programmable via computerYes
Operating temperature range-40 … 65 °C
Fan-assisted coolingYes
Maximum humidity95 %
Maximum altitude2000 m
AC connection terminalsScrew terminals 13 mm² (6 AWG)
Battery connection terminalsM8 bolts (two for the positive connection and two for the negative)
Remote terminal typeTwo-pole screw terminal
Relay terminalThree-pole screw terminal
VE.Bus terminal typeTwo RJ45 terminals
MaterialAluminium
ColourBlue (RAL 5012)
Protection ratingIP20
Pollution degree2
OVC III / rated short-time withstand current (Icw)6kA 30mS
Weight18 kg
Height362 mm
Width258 mm
Depth218 mm
SafetyEN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission and immunityEN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive directiveECE R10-4
Anti-islanding standardSee our website

Data sheet

Reference
PMP242300001
Brand
Victron Energy
Product type
Inverter/charger
Inverter type
Inverter/charger
Phases
Single-phase
Power class
2-3.5 kW
Continuous output power (VA, 25 °C)
3000 VA
Continuous output power (W, 25 °C)
2400 W
Peak power
6000 W
Maximum efficiency
94 %
Zero-load power
20 W
Output waveform
Pure sine wave
Battery voltage
24 V
DC input voltage range
19-33 V
Max. charge current
70 A
AC output voltage
230 V
Output frequency
50 Hz
AC input voltage range
187-265 V
Max. AC input current
16 A
Parallel operation
Yes
Communication interfaces
VE.Bus
Programmable relay
Yes
Protections
Output short-circuit, overload, overtemperature, high battery voltage, low battery voltage, excessive DC ripple, AC voltage on output
Dimensions (H x W x D)
364 x 295 x 221 mm
Weight
18 kg
Ingress protection (IP)
IP20
Operating temperature
-40 ... 65 °C
Max. relative humidity
95 %
Colour
Blue
Material
Aluminium
Standards and compliance
EN-IEC 60335-1, ECE R10-4, EN 55014-1, EN 55014-2

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
