€163 Tax excluded

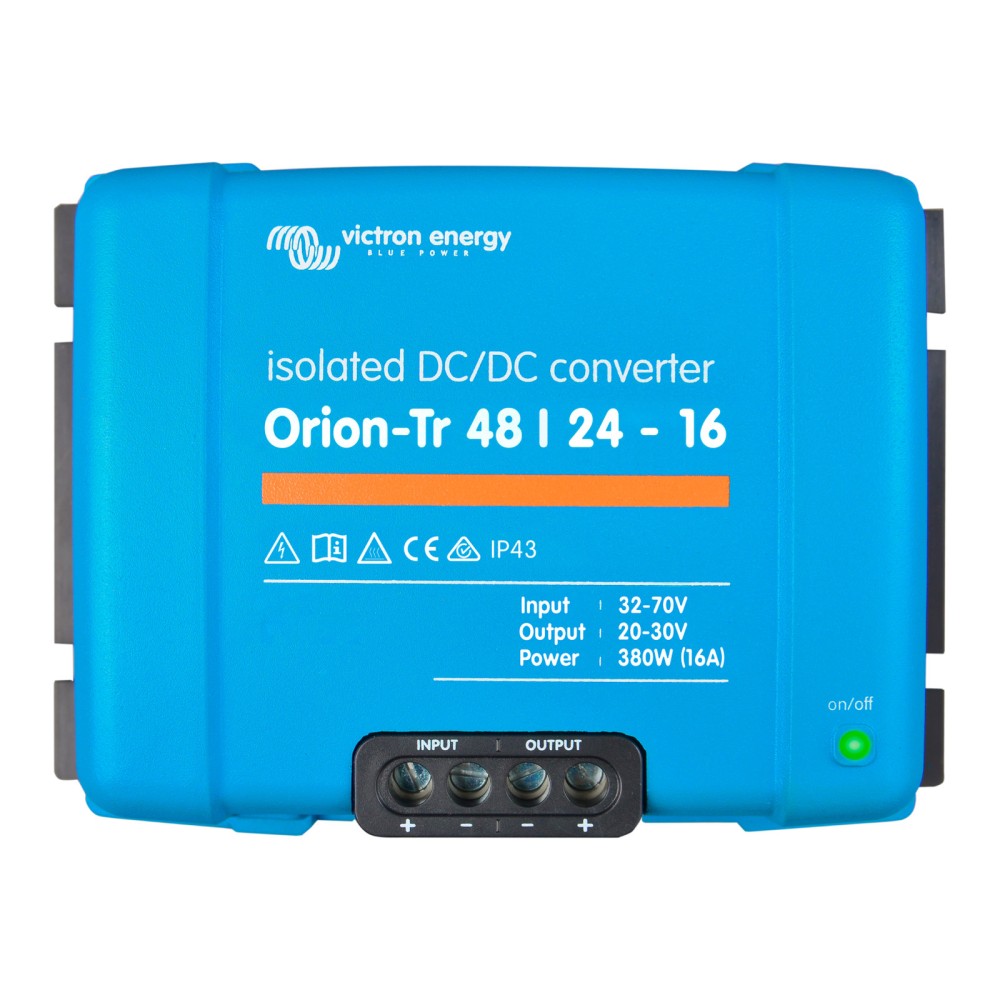

Victron Orion-Tr 48/24-16A (380W) is a galvanically isolated DC-DC converter with a 32-70 V input, a 24.2 V output (adjustable in the range 18-30 V), a continuous output current of 16 A at 40 °C and a maximum efficiency of 89 %. It features remote on/off control and IP43 protection.
Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions
Victron Orion-Tr 48/24-16A (380W) is a galvanically isolated DC-DC converter with an input voltage of 32-70 V and an adjustable output voltage in the range 18-30 V. It features remote on/off control and can be connected in parallel to increase the output current.
The remote on/off control removes the need for a high-voltage switch on the input cables and can be operated with a low-power switch or, for example, with the engine's on/off switch. All models are short-circuit protected and can be installed in parallel to increase the output current; the number of units connected in parallel is not limited.
The output current is reduced at high ambient temperatures. IP43 protection is achieved when the converter is installed with the screw terminals facing downwards. The screw terminals require no special tools for installation. The output voltage is adjustable, and the converter is not intended for battery charging.
| Input voltage range | 32 … 70 V |
|---|---|
| Undervoltage shutdown | 28 V |
| Restart after undervoltage | 30 V |
| Output voltage | 24.2 V |
| Output voltage range | 18 … 30 V |
| Output voltage tolerance | 200 mVrms |
| Output voltage ripple | 2 mVrms |
| Maximum output current | 25 A |
| Continuous output current at 40 °C | 16 A |
| Maximum short-circuit current | 40 A |
| Continuous output power at 25 °C | 430 W |
| Continuous output power at 40 °C | 380 W |
| No-load current consumption | 80 mA |
| Standby current consumption | 0.2 mA |
| Maximum efficiency | 89 % |
| Can be connected in parallel | Yes |
| Galvanic isolation | Yes |
| Remote on/off terminal | Yes |
| Protections | Over-temperature, Short-circuit protected |
| Insulation | 200 VDC |
| Operating temperature range | -20 … 55 °C |
| Maximum humidity | 95 % |
| DC connection terminals | Screw terminals 16 mm² (6 AWG) |
| Remote on/off terminal connection | Two-pole screw terminal |
| Colour | Blue (RAL 5012) |
| Ingress protection | IP43 |
| Weight | 1.6 kg |
| Height | 130 mm |
| Width | 186 mm |
| Depth | 70 mm |
| Safety | EN 60950 |
| Emission | EN 55014-1, EN-IEC 61000-6-3 |
| Immunity | EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
| Automotive directive | ECE R10-5 |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
