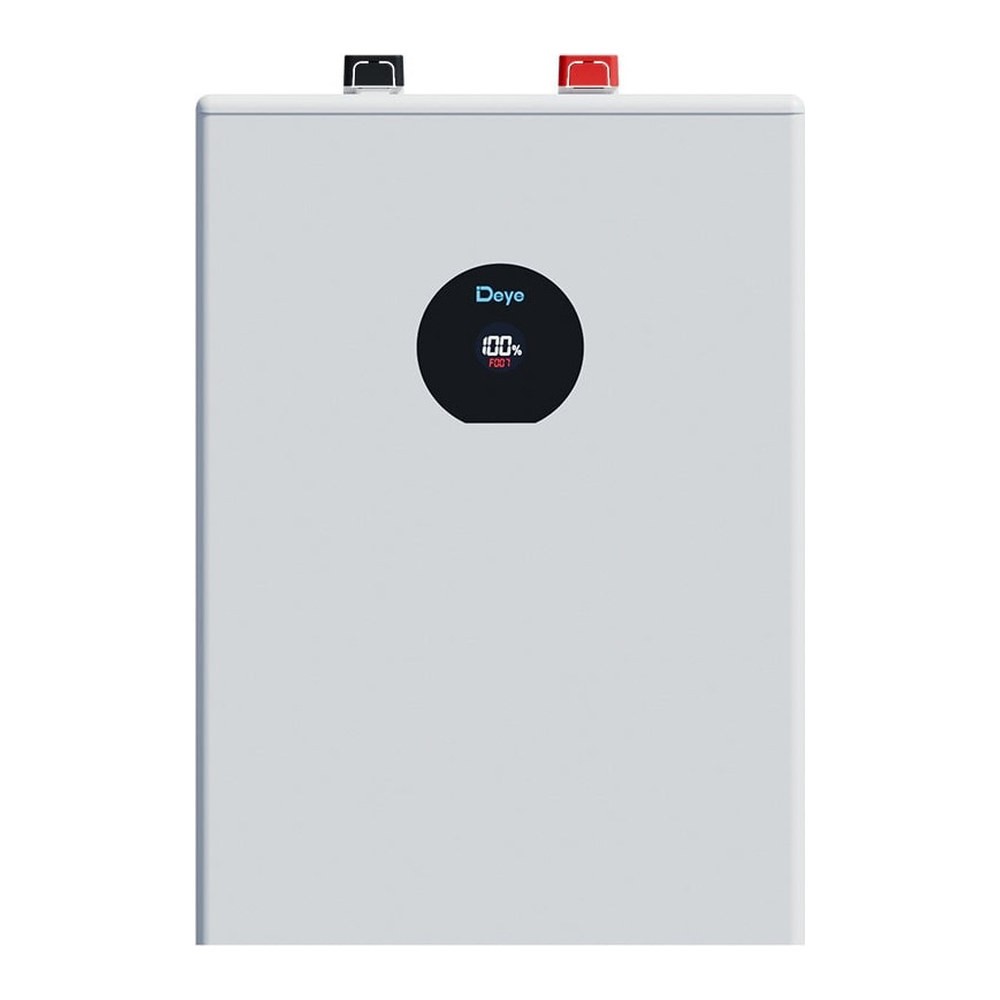

Deye battery, 12.03 kWh, 51.2 V LiFePO4, 235 Ah, IP21, SE-F12

Deye battery, 12.03 kWh, 51.2 V LiFePO4, 235 Ah, IP21, SE-F12

51.2 V
€2,049 Tax included

€1,708 Tax excluded

Deye SE-F12 is a 51.2 V, 235 Ah, 12.03 kWh LiFePO4 battery with a maximum continuous current of 230 A (peak 280 A, 10 s), a BMS with active fuse and IP21 ingress protection. It communicates over CAN2.0, RS485 and Bluetooth, connects in parallel up to 32 modules and can be wall-mounted, floor-mounted or stacked.

Reference SE-F12

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

Deye SE-F12 - 12.03 kWh LiFePO4 battery, 235 Ah

Deye SE-F12 is a 51.2 V, 235 Ah (12.03 kWh) LiFePO4 battery from the Deye SE-F series, with an advanced BMS with active fuse and IP21 ingress protection. It is wall-mounted, floor-mounted or stacked and communicates with the inverter over CAN2.0 or RS485; local monitoring is done through Bluetooth and an app.

Main features:

  • Nominal voltage: 51.2 V
  • Capacity: 235 Ah, 12.03 kWh
  • Max. continuous current: 230 A, peak 280 A (10 s)
  • Depth of discharge: 90 % recommended
  • Parallel connection: up to 32 modules (64 with CAN-Bridge)
  • Communication: CAN2.0, RS485, Bluetooth
  • Ingress protection: IP21

The battery uses lithium iron phosphate cells and an advanced BMS with active fuse; cooling is natural. The operating voltage range is 44.8-57.6 V, the recommended charge and discharge current is 115 A and the lifetime energy throughput is 37 MWh. The operating temperature is 0 ... 55 °C for charging and -20 ... 55 °C for discharging.

Modules connect in parallel, up to 32 (64 with CAN-Bridge), and can be wall-mounted, floor-mounted or stacked 6 layers high. Wheels are available as an option for moving the unit. The module network configures itself automatically.

Technical specifications

Product typeBattery
Battery chemistryLiFePO4 (lithium iron phosphate)
Battery voltage class48 V
Nominal voltage51.2 V
Operating voltage range44.8-57.6 V
Rated capacity235 Ah
Nominal energy12.03 kWh
Capacity class6-20 kWh
Recommended charge / discharge current115 A
Max. continuous charge current230 A
Max. continuous discharge current230 A
Peak current280 A (10 s)
Recommended depth of discharge90 %
Parallel connectionup to 32 modules (64 with CAN-Bridge)
Communication interfacesCAN2.0, RS485, Bluetooth + app
Display / indicatorLED indicator (SOC, working, protecting) and buzzer
Ingress protection (IP)IP21
Operating temperaturecharge 0 ... 55 °C, discharge -20 ... 55 °C
Storage temperature0 ... 35 °C
Max. relative humidity95 % (non-condensing)
Max. operating altitude3000 m
Installationwall, floor or stacked
Lifetime energy throughput37 MWh
Standards and complianceUN38.3, CE, CB
Dimensions (height x width x depth)559 x 400 x 233 mm (without hanging board)
Weight84 kg

Data sheet

Reference
SE-F12
MPN
SE-F12
Product type
Battery
Battery chemistry
LiFePO4 (lithium iron phosphate)
Battery voltage
48 V
Nominal voltage (exact)
51,2 V
Nominal capacity
235 Ah
Capacity class
6-20 kWh
Nominal energy
12,03 kWh
Max. continuous discharge current
230 A
Built-in BMS
Yes
Max. charge current
230 A
Communication interfaces
Bluetooth
CAN-bus
RS485
Dimensions (H x W x D)
559 x 400 x 233 mm
Weight
84 kg
Ingress protection (IP)
IP21
Operating temperature
0 ... 55 °C (charge), -20 ... 55 °C (discharge)
Max. relative humidity
95 %
Standards and compliance
UN38.3, CE, CB

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
