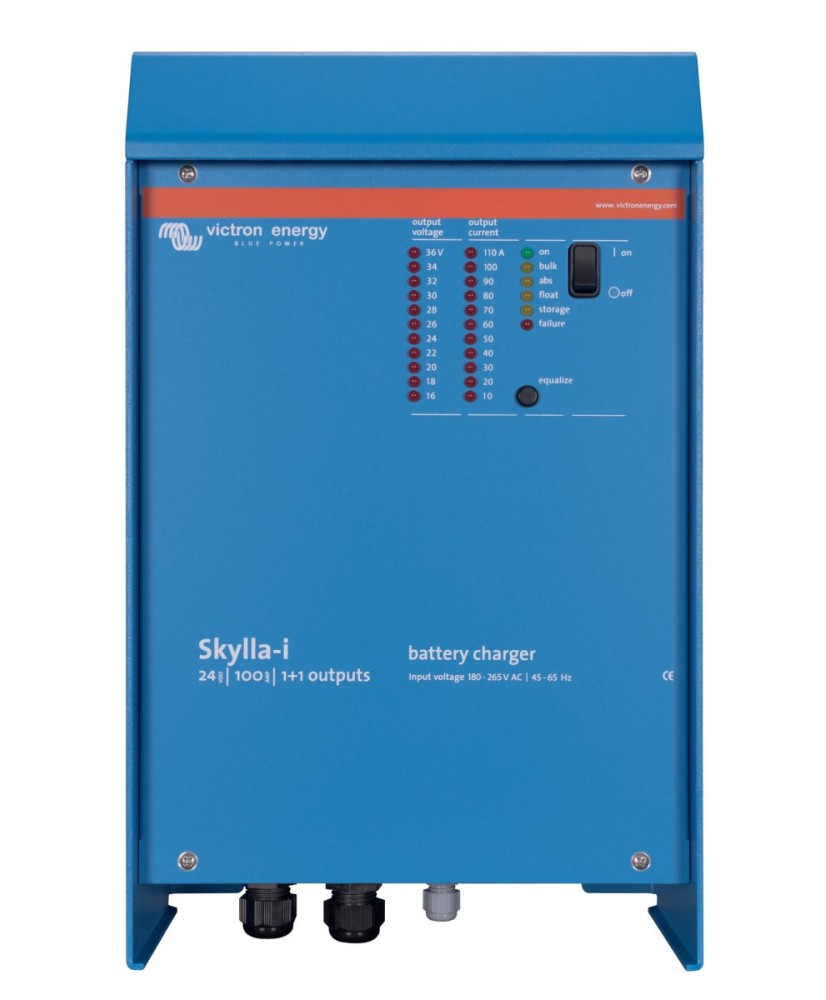

Skylla-i 24/100(1+1) 230V Victron Energy

Name: Skylla-i 24/100(1+1) 230V Victron Energy
Brand: VICTRON ENERGY
SKU: SKI024100000
Price: 1275 EUR
Availability: PreOrder

€1,275.00

Tax excluded

Skylla-i 24/100(1+1) 230V is a 24 V, 100 A battery charger with an adaptive 7-stage algorithm, BatterySafe mode against excessive gassing and Storage mode for periods of non-use. It has a main output and a 4 A starter battery output. It has a VE.Can (NMEA 2000) port, PowerControl to limit shore current, and is Li-ion (LiFePO4) ready.

Brand : VICTRON ENERGY

Skylla-i 24/100(1+1) 230V - Battery charger 24V 100A with VE.Can

Main features:

Battery voltage: 24 V
Charge current: 100 A
Charge outputs: 1 main + 1 × 4 A (starter)
Charge algorithm: adaptive, 7-stage, Li-ion via BMS on-off or CAN bus
Power supply: 185-265 V AC or 180-350 V DC
Communication: VE.Can (NMEA 2000), 2 x RJ45, synchronised parallel operation

A modern and powerful battery charger.

The right amount of charge for a lead-acid battery: variable absorption time
BatterySafe mode: preventing damage due to excessive gassing
Storage mode: less maintenance and aging when the battery is not in use
Smaller and lighter compared to similar models
NMEA 2000 Canbus connection
PowerControl: set a maximum shore power
Remote Control
Li-ion (LiFePo4) ready

Technical specifications

Nominal battery voltage	24 V
Nominal charge current	100 A
AC input voltage	230V
AC input voltage range	185 … 265 V
AC input voltage (class)	230 V
DC input voltage range	180 … 350 VDC
Maximum AC input current (2)	20 A
AC input frequency range	45 … 65 Hz
Number of charge outputs	2
Power factor	0.98
Absorption charge voltage	28.8 V
Float charge voltage	27.6 V
Storage charge voltage	26.4 V
Number of full-current outputs	1
Low current output	Yes
Starter battery charge current	4 A
Charge algorithm	Adaptive, 7-stage
Recommended battery capacity	500 … 1000 Ah
Charge algorithm (lithium)	Three stage, with on-off control or CAN-bus control
Temperature sensor	Included
Programmable	Yes
Can be used as power supply	Yes
CAN port	VE.Can, two RJ45 connectors, NMEA2000 protocol, not isolated
Parallel operation	Yes, with VE.Can
Programmable relay	DPST AC rating: 240VAC / 4A, DC rating: 4A up to 35VDC, 1A up to 60VDC
Forced cooling	Yes
Protections	Output short-circuit, Over temperature, Battery reverse polarity (fuse)
Operating temperature range	-20 … 60 °C
Maximum humidity	95 %
AC connection terminals	screw-clamp 10 mm² (AWG 7)
Battery connection terminals	M8 bolts
Material	Aluminium
Colour	Blue (RAL 5012)
Protection category	IP21
Weight	7 kg
Height	405 mm
Width	250 mm
Depth	150 mm
Safety	EN-IEC 60335-1, EN-IEC 60335-2-29
Emission	EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity	EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
