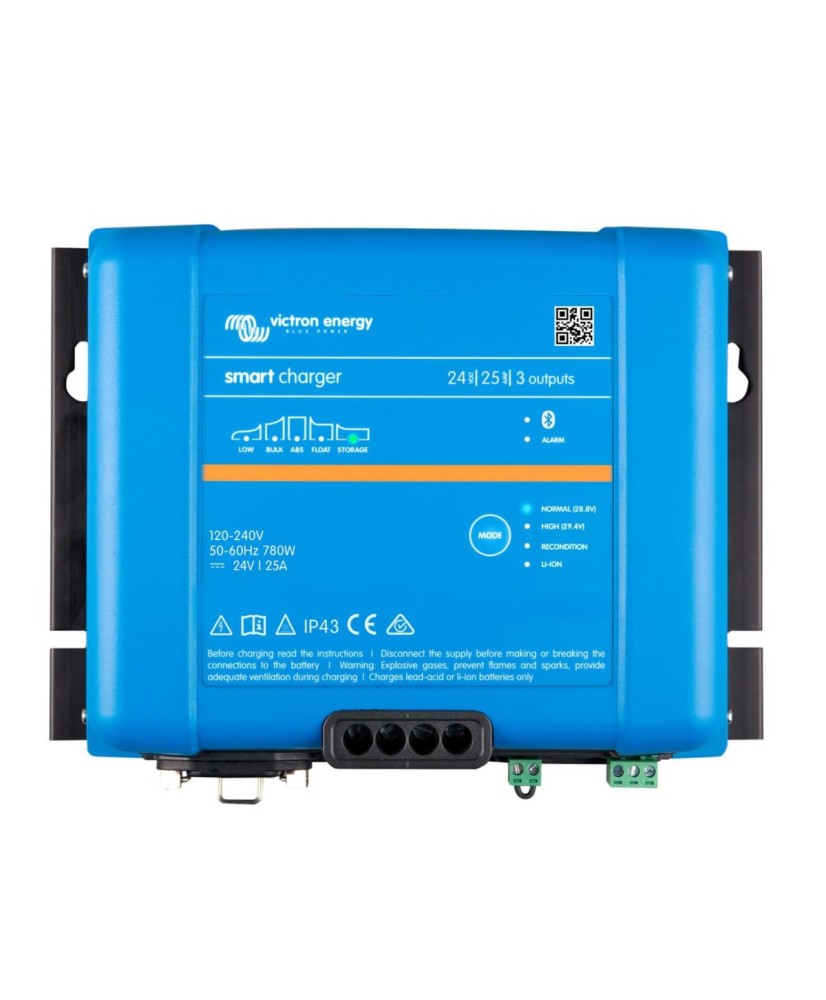

Smart IP43 24/25(3) 120-240V - Smart battery charger 24V
Smart IP43 24/25(3) 120-240V is a smart charger for 24V batteries with three full-current outputs and an adaptive 6-stage algorithm compatible with LiFePO4 batteries. It suits marine, eMobility, leisure, off-grid and industrial applications, is configured via Bluetooth in VictronConnect and integrates with GX devices and the VRM Portal through VE.Direct.
Main features:
- Battery voltage: 24 V
- Charge current: 25 A (12.5 A in low mode)
- Outputs: 3 full-current outputs
- Charge algorithm: adaptive 6-stage, LiFePO4 compatible
- Power supply: 85-250 V AC or 90-375 V DC
- Connectivity: Bluetooth, VE.Direct, VE.Smart Networking, programmable relay
The Smart IP43 Charger is an adaptive, intelligent charger available across all four common battery voltages: 12V, 24V, 36V and 48V, making it suitable for a wide range of applications including marine, eMobility, leisure and off-grid, and industrial.
With built-in Bluetooth, monitor, configure and set alarms directly from your phone using the VictronConnect app, or connect via VE.Direct to a GX device for full system integration and remote monitoring via the VRM Portal.
The adaptive 6-stage charging algorithm, VE.Smart Networking, LiFePO₄ compatibility, and fully programmable charge algorithm make the Smart IP43 a versatile and future-proof choice for any system from 12V to 48V.
Technical specifications
| Nominal battery voltage | 24 V |
|---|
| AC input voltage range | 85 … 250 VAC |
|---|
| AC input voltage (class) | 120 V - 240 V |
|---|
| DC input voltage range | 90 … 375 VDC |
|---|
| AC input frequency range | 45 … 65 Hz |
|---|
| Number of charge outputs | 3 |
|---|
| Power factor | 1 |
|---|
| Back current drain | 1 mA |
|---|
| No-load power consumption | 1 W |
|---|
| Efficiency | 96 % |
|---|
| Absorption charge voltage | Normal: 28.8V High: 29.4V Lithium: 28.4V |
|---|
| Float charge voltage | Normal: 27.6V High: 27.6V Li-ion: 27.0V |
|---|
| Storage charge voltage | Normal: 26.4V High: 26.4V Li-ion: 27.0V |
|---|
| Charge algorithm | Adaptive, 6-stage |
|---|
| Lithium compatible | Yes |
|---|
| Nominal charge current | 25 A |
|---|
| Charge current (low mode) | 12.5 A |
|---|
| Number of full-current outputs | 3 |
|---|
| Temperature compensation | -32 mV/°C |
|---|
| Temperature sensor | Optional (Smart Battery Sense) |
|---|
| Power supply mode | Yes |
|---|
| Fully programmable | Yes |
|---|
| Bluetooth | Yes, -4dBm, 2402 - 2480 MHz |
|---|
| Data communication | VE.Direct, Bluetooth |
|---|
| Remote on/off terminal | Yes |
|---|
| Programmable relay | SPDT - 5 A up to 250 VAC / 5 A up to 28 VDC |
|---|
| Protections | Battery reverse polarity (fuse not user accessible), Output short-circuit, Over temperature |
|---|
| Operating temperature range | -20 … 60 °C |
|---|
| Full rated output up to | 40 °C |
|---|
| Linear output derating | 20 % |
|---|
| Maximum humidity | 95 % |
|---|
| AC connection terminals | Inlet IEC 320 C14 with retainer clip (AC cord ordered separately) |
|---|
| Battery connection terminals | Screw terminals 16 mm² (6 AWG) |
|---|
| Remote on/off terminal connection | Screw terminal two pole |
|---|
| Relay terminal connection | Screw terminal 3-pole |
|---|
| Material | Aluminium |
|---|
| Colour | Blue (RAL 5012) |
|---|
| Protection category | IP43 (electronic components) |
|---|
| Weight | 2.7 kg |
|---|
| Height | 180 mm |
|---|
| Width | 249 mm |
|---|
| Depth | 116 mm |
|---|
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29 |
|---|
| Emission | EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3 |
|---|
| Immunity | EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
|---|
| Vibration | IEC68-2-6:10-150Hz/1.0G |
|---|
