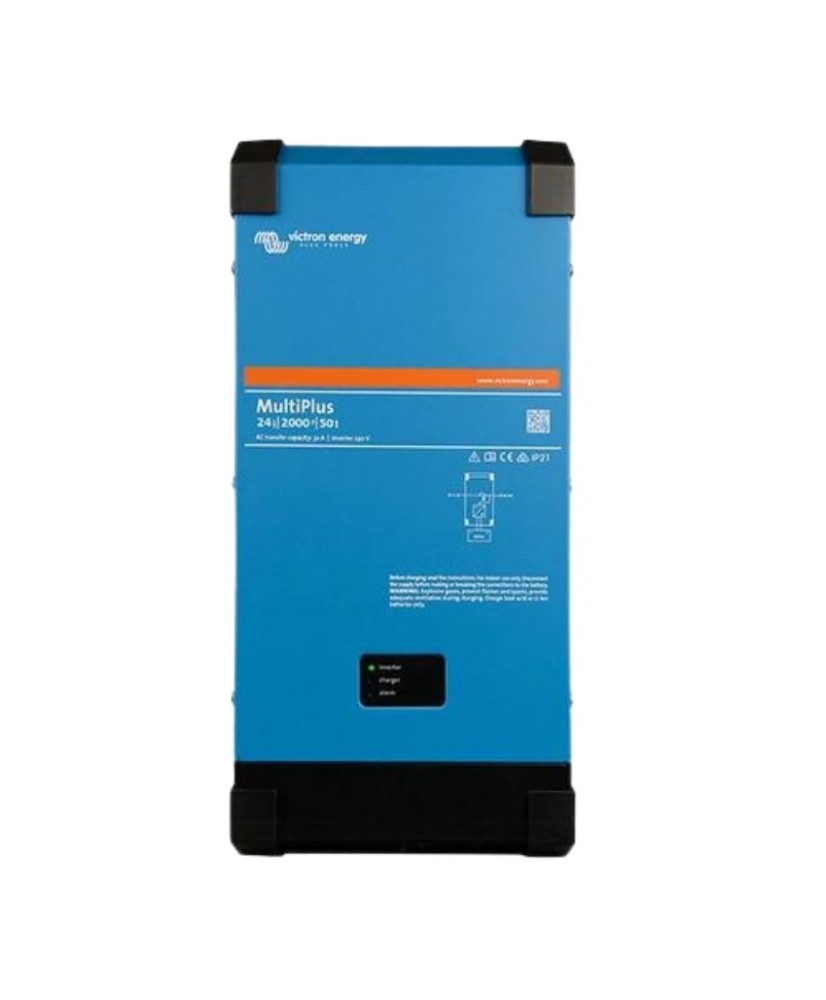

MultiPlus 24/2000/50-32 230V VE.Bus - 24V inverter/charger PowerAssist
MultiPlus 24/2000/50-32 230V VE.Bus is an inverter/charger that combines a true sine wave inverter and an adaptive charger for 24V batteries in one enclosure. It delivers 1600 W continuous power, charges batteries at up to 50 A, and its PowerAssist technology supplements grid or generator power; units can operate in parallel or three-phase.
Main features:
- Battery voltage: 24 V (19-33 V)
- Continuous power: 1600 W / 2000 VA at 25 °C, 3500 W peak
- Charge current: 50 A, adaptive 4-stage algorithm
- Transfer switch: 32 A
- Maximum efficiency: 94%
- Zero-load power: 9 W, only 3 W in Search mode
The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.
Technical specifications
| Nominal battery voltage | 24 V |
|---|
| PowerControl | Yes |
|---|
| PowerAssist | Yes |
|---|
| Parallel operation | Yes |
|---|
| Three-phase operation | Yes |
|---|
| Number of AC inputs | 1 |
|---|
| Transfer switch current rating | 32 A |
|---|
| DC input voltage range | 19 … 33 VDC |
|---|
| AC output voltage | 230 VAC |
|---|
| AC output frequency | 50 Hz |
|---|
| Continuous output power at 25 °C (VA) | 2000 VA |
|---|
| Continuous output power at 25 °C (W) | 1600 W |
|---|
| Continuous output power at 40 °C | 1400 W |
|---|
| Continuous output power at 65 °C | 1000 W |
|---|
| Peak power | 3500 W |
|---|
| Maximum efficiency | 94 % |
|---|
| Zero load power | 9 W |
|---|
| Zero load power in search mode | 3 W |
|---|
| AC input voltage range | 187 … 265 VAC |
|---|
| AC input frequency range | 45 … 65 Hz |
|---|
| Absorption charge voltage | 28.8 VDC |
|---|
| Float charge voltage | 27.6 VDC |
|---|
| Storage charge voltage | 26.4 VDC |
|---|
| Charge algorithm | Adaptive, 4-stage |
|---|
| Maximum battery charge current | 50 A |
|---|
| Temperature sensor | Included |
|---|
| Number of AC outputs | 1 |
|---|
| Programmable relay | AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC |
|---|
| Protections | Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple |
|---|
| Communication port | VE.Bus |
|---|
| General-purpose communication port | No |
|---|
| Remote control terminal | On / Off |
|---|
| Programmable via DIP switches | Yes |
|---|
| Programmable via computer | Yes |
|---|
| Operating temperature range | -40 … 65 °C |
|---|
| Fan-assisted cooling | Yes |
|---|
| Maximum humidity | 95 % |
|---|
| Maximum altitude | 2000 m |
|---|
| AC connection terminals | Screw terminals |
|---|
| Battery connection terminals | M8 bolts |
|---|
| Remote terminal type | Screw terminal two pole |
|---|
| Relay terminal | Screw terminal 3-pole |
|---|
| VE.Bus terminal type | Two RJ45 terminals |
|---|
| Material | Steel |
|---|
| Colour | Blue (RAL 5012) |
|---|
| Protection category | IP21 |
|---|
| Weight | 15.5 kg |
|---|
| Height | 506 mm |
|---|
| Width | 236 mm |
|---|
| Depth | 147 mm |
|---|
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1 |
|---|
| Emission and immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3 |
|---|
| Automotive directive | ECE R10-4 |
|---|
