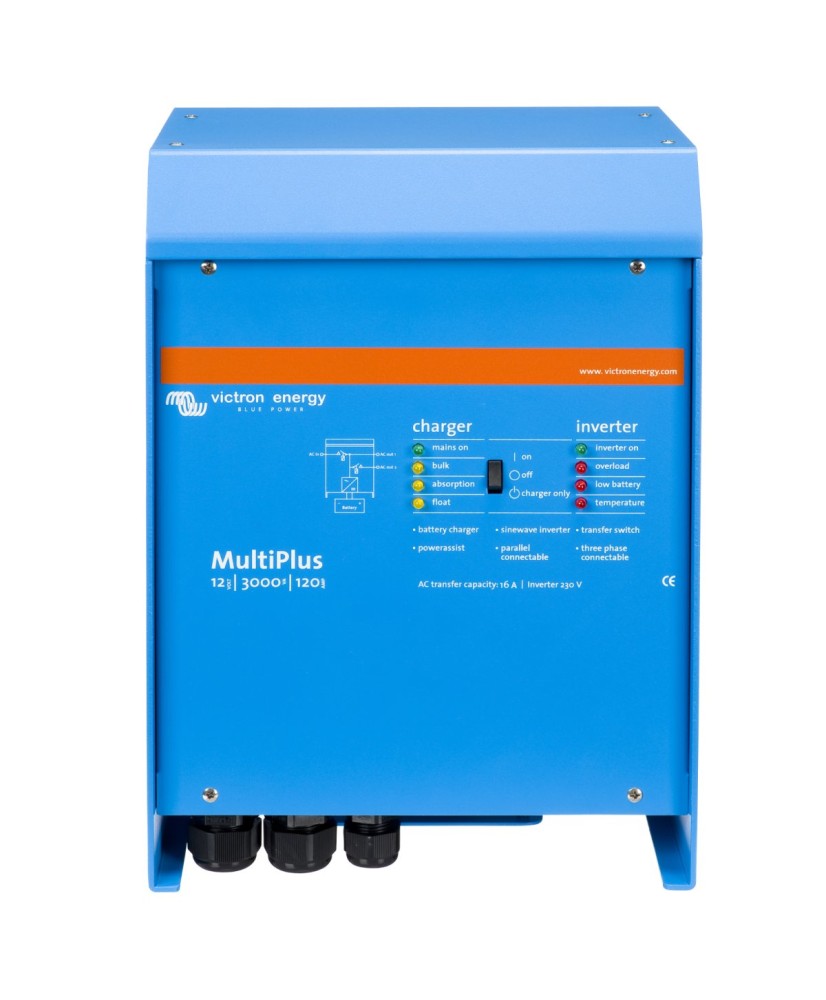

MultiPlus 12/3000/120-16 230V VE.Bus Victron Energy
  • New


MultiPlus 12/3000/120-16 230V VE.Bus Victron Energy

€1,267.00
Tax excluded

MultiPlus 12/3000/120-16 230V VE.Bus is an inverter/charger that combines a true sine wave inverter and an adaptive charger for 12V batteries in one enclosure. It delivers 2400 W continuous power, charges batteries at up to 120 A, and its PowerAssist technology supplements grid or generator power; units can operate in parallel or three-phase.

: VICTRON ENERGY
Quantity

MultiPlus 12/3000/120-16 230V VE.Bus - 12V inverter/charger PowerAssist

MultiPlus 12/3000/120-16 230V VE.Bus is an inverter/charger that combines a true sine wave inverter and an adaptive charger for 12V batteries in one enclosure. It delivers 2400 W continuous power, charges batteries at up to 120 A, and its PowerAssist technology supplements grid or generator power; units can operate in parallel or three-phase.

Main features:

  • Battery voltage: 12 V (9.5-17 V)
  • Continuous power: 2400 W / 3000 VA at 25 °C, 6000 W peak
  • Charge current: 120 A, adaptive 4-stage algorithm
  • Transfer switch: 16 A
  • Maximum efficiency: 93%
  • No-break transfer: takes over the loads within 20 ms on grid failure

The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.

New model: MultiPlus 20k

Technical specifications

Nominal battery voltage12 V
PowerControlYes
PowerAssistYes
Parallel operationYes
Three-phase operationYes
Number of AC inputs1
AC input voltage range (2)187 … 250 VAC
Frequency selection50Hz or 60Hz
Transfer switch current rating16 A
DC input voltage range9.5 … 17 VDC
DC input current250 V
AC output voltage230 VAC
AC output frequency50 Hz
Continuous output power at 25 °C (VA)3000 VA
Continuous output power at 25 °C (W)2400 W
Continuous output power at 40 °C2200 W
Continuous output power at 65 °C1700 W
Peak power6000 W
Maximum AC output current11 A
Maximum AC output fault current32 A
Maximum efficiency93 %
Zero load power20 W
Zero load power in AES mode15 W
Zero load power in search mode8 W
AC input voltage range187 … 265 VAC
AC input frequency range45 … 65 Hz
Power factor1
Absorption charge voltage14.4 VDC
Float charge voltage13.8 VDC
Storage charge voltage13.2 VDC
Charge algorithmAdaptive, 4-stage
Maximum battery charge current120 A
Starter battery charge outputYes
Starter battery charge current4 A
Temperature sensorIncluded
Number of AC outputs2
Auxiliary outputYes
Programmable relayAC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
ProtectionsOutput short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication portVE.Bus
General-purpose communication portYes
Remote control terminalOn / Off / Charger only
Programmable via DIP switchesYes
Programmable via computerYes
Operating temperature range-40 … 65 °C
Fan-assisted coolingYes
Maximum humidity95 %
Maximum altitude2000 m
AC connection terminalsScrew terminals 13 mm² (6 AWG)
Battery connection terminalsM8 bolts (two for positive and two for negative connection)
Remote terminal typeScrew terminal two pole
Relay terminalScrew terminal 3-pole
VE.Bus terminal typeTwo RJ45 terminals
MaterialAluminium
ColourBlue (RAL 5012)
Protection categoryIP20
Pollution degree2
OVC III / short-time withstand current (Icw)6kA 30mS
Weight18 kg
Height362 mm
Width258 mm
Depth218 mm
SafetyEN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission and immunityEN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive directiveECE R10-4
Anti-islanding standardSee our website
: PMP122300001
Out of Stock

Data sheet

Brand
Victron Energy
