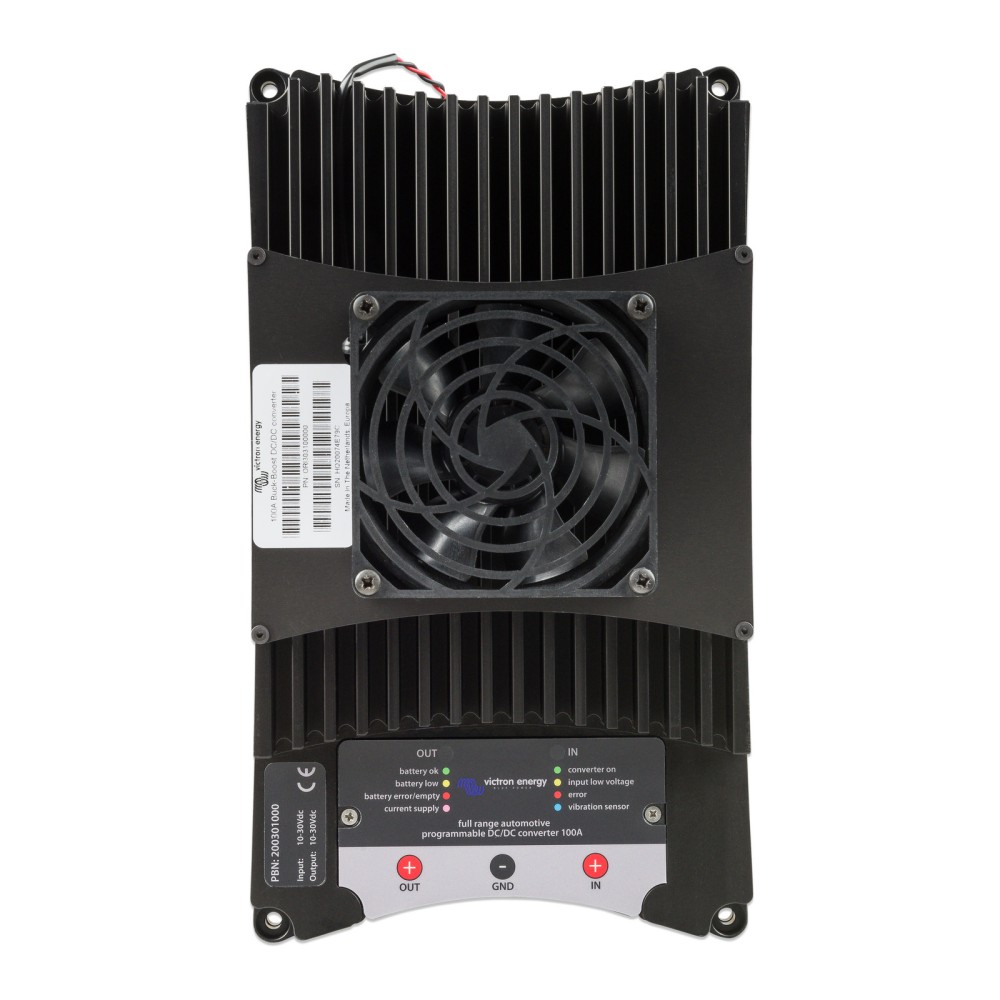

DC-DC converter Victron Energy Buck-Boost, 100 A, 10-30 V

Name: DC-DC converter Victron Energy Buck-Boost, 100 A, 10-30 V
Brand: Victron Energy
SKU: ORI303100000
Price: 1280.00 EUR
Availability: OutOfStock

€1,507 Save €227

€1,280 Tax included

€1,067 Tax excluded

The Buck-Boost DC-DC converter 100 A is used to charge a 12/24 V service battery in vehicles with a smart alternator. The input and output voltage range is 10-30 V, the maximum output current is 100 A at 12 V and 50 A at 24 V, and the aluminium enclosure measures 288 x 162 x 95 mm.

Reference ORI303100000

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Buck-Boost DC-DC converter 100 A - Battery charger for vehicles with a smart alternator

Buck-Boost DC-DC converter 100 A is a DC-DC converter for charging a 12/24 V service battery in vehicles with a smart alternator. The maximum output current is 100 A at 12 V and 50 A at 24 V.

Key features:

Input voltage: 10-30 V
Output voltage: 10-30 V
Maximum output current: 100 A (12 V), 50 A (24 V)
Standby current consumption: 7 mA
DC connection: M8 screws
Dimensions: 288 x 162 x 95 mm
Weight: 4.1 kg

The Buck-Boost DC-DC converter is intended for charging a 12/24 V service battery in vehicles with a smart alternator. Because these alternators, controlled by the engine electronics of engines complying with Euro 5 and 6 emission standards, do not always supply the correct charging current while the engine is running, a DC-DC converter is essential for charging the service battery correctly.

The converter is programmable and has a remote on/off terminal. The operating temperature range is -25 to 60 °C, and at 60 °C it can deliver its full rated power. The enclosure is made of aluminium. The temperature sensor is optional (ASS000200100, CAN-bus temperature sensor).

Technical specifications

Input voltage range	10 … 30 V
Undervoltage shutdown	10 V
Output voltage range	10 … 30 V
Maximum output current (12 V)	100 A
Maximum output current (24 V)	50 A
Standby current consumption	7 mA
Programmable	Yes
Remote on/off terminal	Yes
Temperature sensor	Optional (ASS000200100 - CAN-bus temperature sensor)
Operating temperature range	-25 … 60 °C
Temperature at full rated power	60 °C
DC connection terminals	M8 screws
Relay terminal connection	Two-pole screw terminal
Material	Aluminium
Weight	4.1 kg
Height	288 mm
Width	162 mm
Depth	95 mm

Data sheet

Reference: ORI303100000
Brand: Victron Energy
Product type: DC-DC charger (alternator)
DC input voltage range: 10-30 V
Input voltage: 12 V
24 V
Output voltage: 12 V
24 V
DC output voltage range: 10-30 V
Rated output current: 100 A
Charge current class: 71+ A
Galvanic isolation: No (non-isolated)
Bluetooth (app): No
Communication interfaces: USB
Dimensions (H x W x D): 288 x 162 x 95 mm
Weight: 4.1 kg
Operating temperature: -25 ... 60 °C
Material: Aluminium

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
