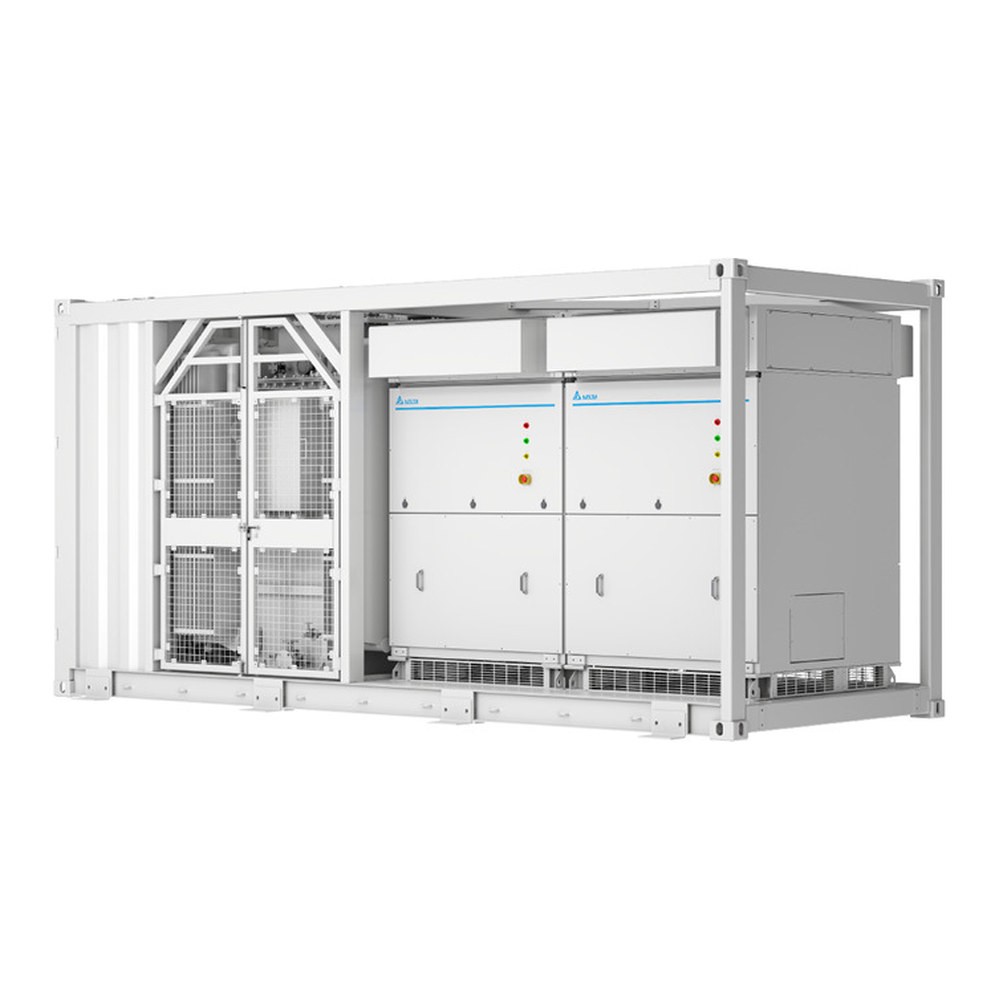

PCST5500 MV is a 5.5 MW Delta power station for utility-scale energy storage, with two 2.782 MW PCS converters, an integrated medium voltage transformer and switchgear, in 22 kV and 33 kV versions. It allows independent management of two of the four battery systems and works with mainstream battery technologies.
PCST5500 MV is a 5.5 MW Delta turnkey power station with integrated PCS converters and a medium voltage transformer, for utility-scale energy storage applications. It combines the advantages of central inverter and string architectures and comes as a skid for outdoor installation.
The station is pre-equipped with a medium voltage transformer and switchgear, 22 kV or 33 kV depending on the version. The modular string architecture allows independent management of two of the four battery systems, for optimized storage capacity.
The skid-based design makes transport and commissioning easier, is built for outdoor installation without the need for housing and simplifies maintenance and troubleshooting. The listed applications are the utility grid, solar-plus-storage and factories.
| Nominal power | up to 5.5 MW |
|---|---|
| PCS number | 2 x 2.782 MW |
| MV transformer | 22 kV or 33 kV (depending on version), with switchgear |
| Architecture | Central inverter and string; independent management of 2 of 4 battery systems |
| Battery compatibility | Mainstream battery technologies |
| Applications | Utility grid, solar-plus-storage, factory |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the manufacturer’s datasheet.
