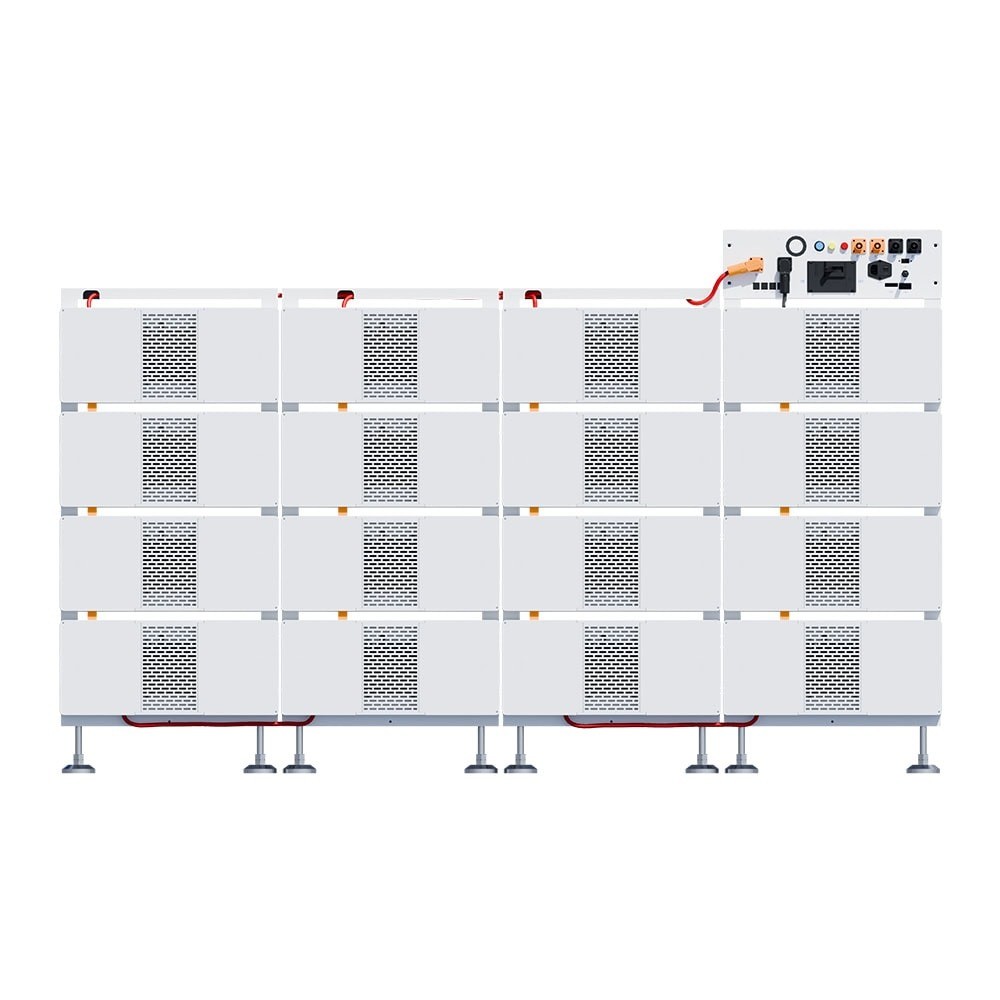

Energy storage system Deye 192.9 kWh, HV, BOS-B192 Pro-A3

Name: Energy storage system Deye 192.9 kWh, HV, BOS-B192 Pro-A3
Brand: Deye
SKU: BOS-B192-Pro-A3
Price: 39535.00 EUR
Availability: InStock

614.4 V

€39,535 Tax included

€32,946 Tax excluded

BOS-B192 Pro-A3 is a high-voltage LiFePO4 storage system with 12 BOS-B-Pack16-A3 modules and the BOS-B-PDU-2-A control unit, rack mounted. Energy 192.9 kWh (173.61 kWh usable), nominal voltage 614.4 V, maximum charge and discharge current 180 A. For commercial and industrial applications.

Reference BOS-B192-Pro-A3

Your legal guarantee rights

BOS-B192 Pro-A3 - LiFePO4 storage system 192.9 kWh, high voltage

BOS-B192 Pro-A3 is a LiFePO4 battery energy storage system for commercial and industrial applications, made up of 12 BOS-B-Pack16-A3 modules of 16.08 kWh each, rack mounted and managed by the BOS-B-PDU-2-A control unit. It provides 192.9 kWh (173.61 kWh usable at the recommended depth of discharge of 90 %) at a nominal voltage of 614.4 V.

Main features:

System energy: 192.9 kWh
Usable energy: 173.61 kWh (90 % depth)
Nominal voltage: 614.4 V
Maximum current: 180 A charge/discharge
Chemistry: LiFePO4
Cycle life: over 6000 cycles
Communication: TCP, RS485, CAN

Each BOS-B-Pack16-A3 module has a capacity of 314 Ah, a nominal voltage of 51.2 V and an energy of 16.08 kWh. The modules are connected in series; the system supports an operating voltage range of 499.2-700.8 V and a maximum DC power of 110.592 kW.

Cycle life exceeds 6000 cycles (at 25±2 °C, 0.5C/0.5C, down to 70 % of capacity), at a recommended depth of discharge of 90 %. Charging is possible from 0 to 55 °C and discharging from -20 to 55 °C. The system communicates over TCP, RS485 and CAN, has an SOC / fault code display and smart fan cooling. The 12-module system suits hybrid inverters (5-16 modules); a PCS requires 14-16 modules for grid-connected applications and 15-16 for off-grid.

The system has an IP20 protection rating, is installed in a rack and operates up to an altitude of 3000 m. Certifications: CE, IEC 62619, IEC 62040, UN38.3.

Technical specifications

Product type	Battery
Battery chemistry	LiFePO4 (lithium iron phosphate)
Battery voltage	HV (high voltage)
Capacity class	20+ kWh
Nominal energy	192,9 kWh
Nominal voltage (exact)	614,4 V
Nominal capacity	314 Ah
Built-in BMS	Yes
Max. charge current	180 A
Max. continuous discharge current	180 A
Communication interfaces	RS485, CAN-bus
Ingress protection (IP)	IP20
Operating temperature	charge 0 ... 55 °C, discharge -20 ... 55 °C
Max. relative humidity	85 %
Standards and compliance	CE / IEC 62619 / IEC 62040 / UN38.3
Dimensions (H x W x D)	1305 x 1608 x 800 mm
Weight	1688 kg

Data sheet

Reference: BOS-B192-Pro-A3
MPN: BOS-B192-Pro-A3
Product type: Battery
Battery chemistry: LiFePO4 (lithium iron phosphate)
Battery voltage: HV (high voltage)
Nominal voltage (exact): 614,4 V
Nominal capacity: 314 Ah
Capacity class: 20+ kWh
Nominal energy: 192,9 kWh
Max. continuous discharge current: 180 A
Built-in BMS: Yes
Max. charge current: 180 A
Communication interfaces: CAN-bus
RS485
Dimensions (H x W x D): 1305 x 1608 x 800 mm
Weight: 1688 kg
Ingress protection (IP): IP20
Operating temperature: charge 0 ... 55 °C, discharge -20 ... 55 °C
Max. relative humidity: 85 %
Standards and compliance: CE / IEC 62619 / IEC 62040 / UN38.3

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
