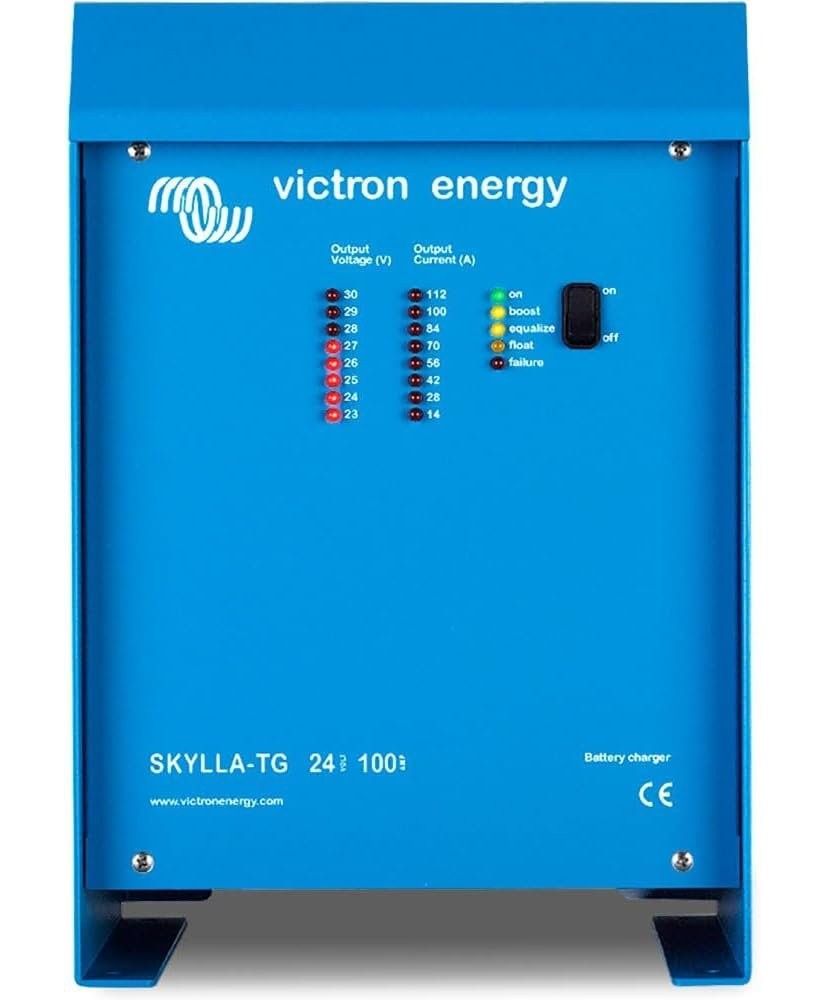

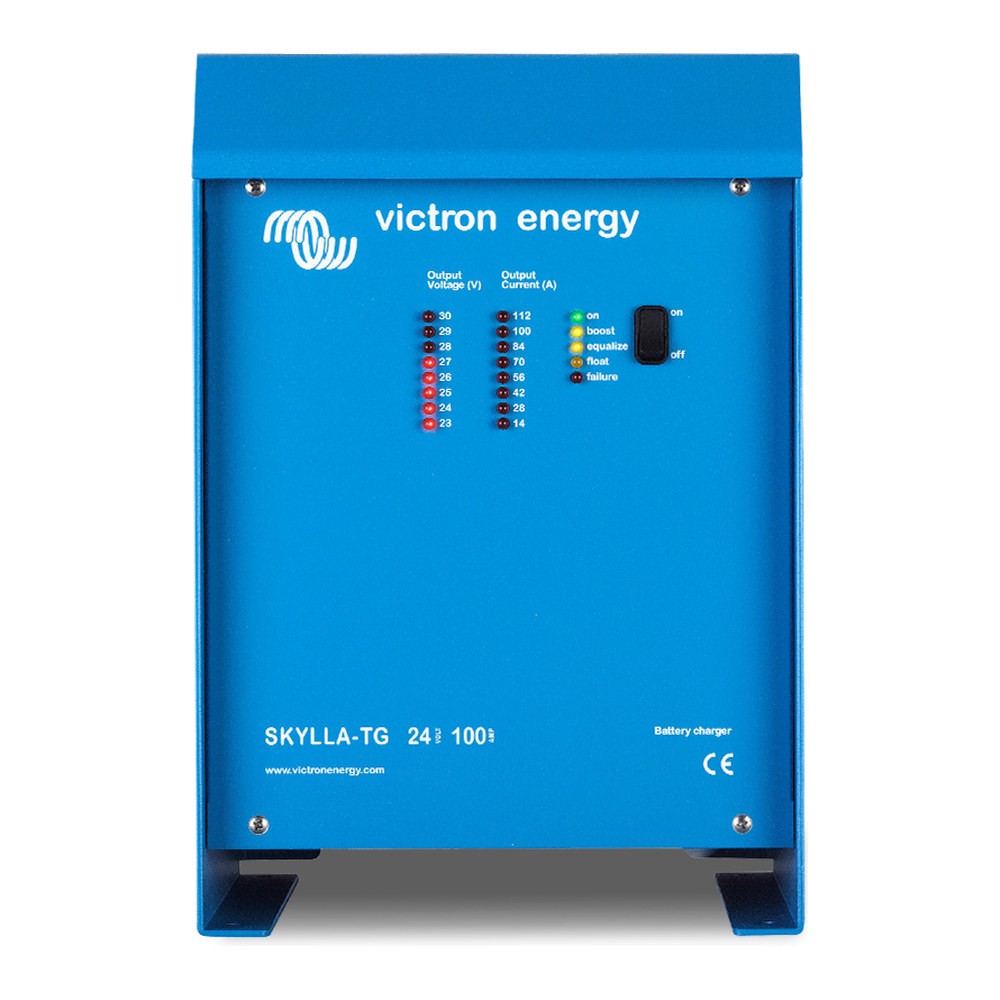

Skylla-TG 24/100(1+1) 3-Phase 400V - Battery charger 24V 100A
Skylla-TG 24/100(1+1) 3-Phase 400V is a 24 V battery charger with a nominal charge current of 100 A, supplied from a three-phase 3 x 400 V network. It has a main output and a 4 A output for a starter battery, a three-stage IUoU algorithm and an included temperature sensor. It is intended for three-phase installations and battery banks of 500-1000 Ah.
Main features:
- Battery voltage: 24 V
- Charge current: 100 A
- AC input: 3 x 400 V (320-450 V)
- Charge outputs: 1 main + 1 × 4 A (starter)
- Charge algorithm: IUoU, three-stage
- Recommended capacity: 500-1000 Ah
One full rated output and one 4 Amp output. Charge voltage can be precisely adjusted to suit any battery system. The input for the charger is 230V at 50/60HZ. Charge voltage can be measured directly on the battery terminals in order to compensate for voltage loss due to cable resistance. An external sensor allows measuring battery temperature and compensating charge voltage accordingly.
Technical specifications
| Nominal battery voltage | 24 V |
|---|
| Nominal charge current | 100 A |
|---|
| AC input voltage | 3 x 400V |
|---|
| AC input voltage range | 320 … 450 V |
|---|
| AC input voltage (class) | 3 x 400 V |
|---|
| AC input frequency range | 45 … 65 Hz |
|---|
| Number of charge outputs | 2 |
|---|
| Power factor | 1 |
|---|
| Absorption charge voltage | 28.5 V |
|---|
| Float charge voltage | 26.5 V |
|---|
| Starter battery charge current | 4 A |
|---|
| Charge algorithm | IUoU, three stage charging |
|---|
| Recommended battery capacity | 500 … 1000 Ah |
|---|
| Temperature sensor | Included |
|---|
| Programmable | Settings can be changed via DIP switches and potentiometers |
|---|
| Can be used as power supply | Yes |
|---|
| Remote alarm | Potential free contacts 60V / 1A (1x NO and 1x NC) |
|---|
| Forced cooling | Yes |
|---|
| Protections | Output short-circuit, High battery voltage, Over temperature, Battery reverse polarity |
|---|
| Operating temperature range | -40 … 50 °C |
|---|
| Maximum humidity | 95 % |
|---|
| Material | Aluminium |
|---|
| Colour | Blue (RAL 5012) |
|---|
| Protection category | IP21 |
|---|
| Weight | 23 kg |
|---|
| Height | 515 mm |
|---|
| Width | 260 mm |
|---|
| Depth | 265 mm |
|---|
| AC connection terminals | screw-clamp 2.5 mm² (AWG 6) |
|---|
| Battery connection terminals | M8 bolts |
|---|
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29 |
|---|
| Emission | EN 55014-1, EN-IEC 61000-3-2 |
|---|
| Immunity | EN 55014-2, EN-IEC 61000-3-3 |
|---|
