Battery charger Victron Energy Skylla-i, 24 V, 100 A, 230 V, 3 outputs
  • Battery charger Victron Energy Skylla-i, 24 V, 100 A, 230 V, 3 outputs
  • Battery charger Victron Energy Skylla-i, 24 V, 100 A, 230 V, 3 outputs

Battery charger Victron Energy Skylla-i, 24 V, 100 A, 230 V, 3 outputs

€1,792 Save €269
€1,523 Tax included

€1,269 Tax excluded

Skylla-i 24/100(3) 230V is a 24 V, 100 A battery charger with an adaptive 7-stage algorithm, BatterySafe mode against excessive gassing and Storage mode for periods of non-use. It has three full-rated outputs for up to three battery banks. It has a VE.Can (NMEA 2000) port, PowerControl to limit shore current, and is Li-ion (LiFePO4) ready.

Reference SKI024100002

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

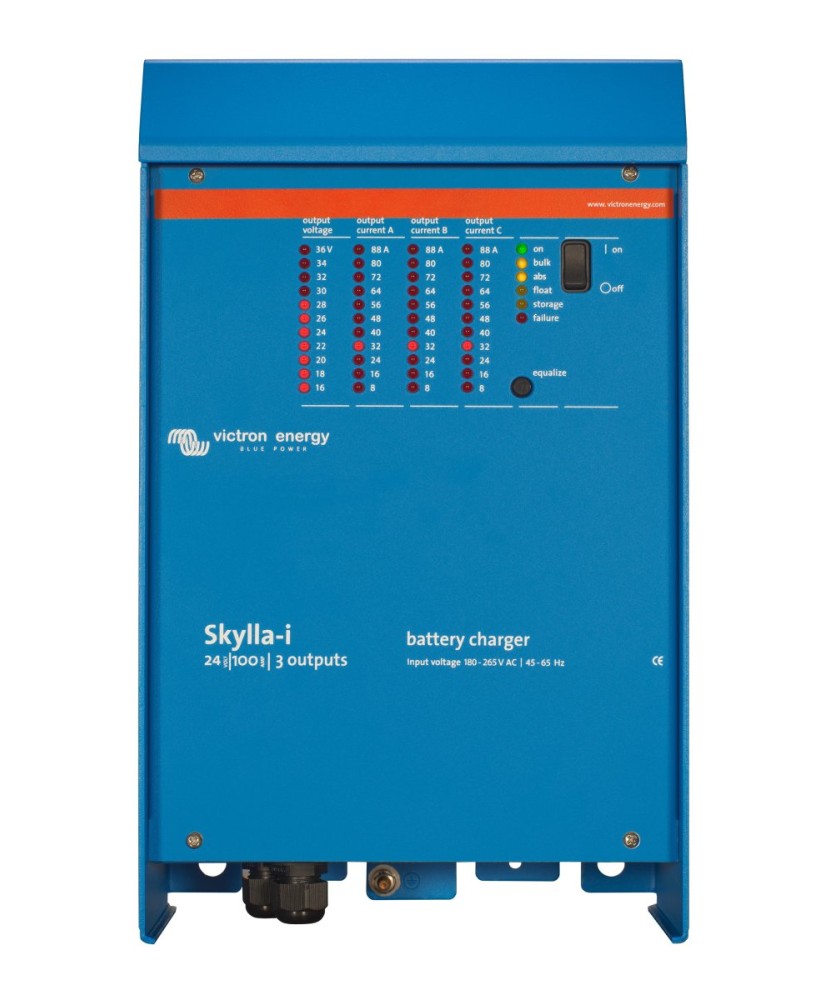

Skylla-i 24/100(3) 230V - Battery charger 24V 100A with VE.Can

Skylla-i 24/100(3) 230V is a 24 V, 100 A battery charger with an adaptive 7-stage algorithm, BatterySafe mode against excessive gassing and Storage mode for periods of non-use. It has three full-rated outputs for up to three battery banks. It has a VE.Can (NMEA 2000) port, PowerControl to limit shore current, and is Li-ion (LiFePO4) ready.

Main features:

  • Battery voltage: 24 V
  • Charge current: 100 A
  • Charge outputs: 3 full-rated
  • Charge algorithm: adaptive, 7-stage, Li-ion via BMS on-off or CAN bus
  • Power supply: 185-265 V AC or 180-350 V DC
  • Communication: VE.Can (NMEA 2000), 2 x RJ45, synchronised parallel operation

A modern and powerful battery charger.

  • The right amount of charge for a lead-acid battery: variable absorption time
  • BatterySafe mode: preventing damage due to excessive gassing
  • Storage mode: less maintenance and aging when the battery is not in use
  • Smaller and lighter compared to similar models
  • NMEA 2000 Canbus connection
  • PowerControl: set a maximum shore power
  • Remote Control
  • Li-ion (LiFePo4) ready

Technical specifications

Nominal battery voltage24 V
Nominal charge current100 A
AC input voltage230V
AC input voltage range185 … 265 V
AC input voltage (class)230 V
DC input voltage range180 … 350 VDC
Maximum AC input current (2)20 A
AC input frequency range45 … 65 Hz
Number of charge outputs3
Power factor0.98
Absorption charge voltage28.8 V
Float charge voltage27.6 V
Storage charge voltage26.4 V
Number of full-current outputs3
Low current outputNo
Charge algorithmAdaptive, 7-stage
Recommended battery capacity500 … 10000 Ah
Charge algorithm (lithium)Three stage, with on-off control or CAN-bus control
Temperature sensorIncluded
ProgrammableYes
Can be used as power supplyYes
CAN portVE.Can, two RJ45 connectors, NMEA2000 protocol, not isolated
Parallel operationYes, with VE.Can
Programmable relayDPST AC rating: 240VAC / 4A, DC rating: 4A up to 35VDC, 1A up to 60VDC
Forced coolingYes
ProtectionsOutput short-circuit, Over temperature, Battery reverse polarity (fuse)
Operating temperature range-20 … 60 °C
Maximum humidity95 %
AC connection terminalsscrew-clamp 10 mm² (AWG 7)
Battery connection terminalsM8 bolts
MaterialAluminium
ColourBlue (RAL 5012)
Protection categoryIP21
Weight7 kg
Height405 mm
Width250 mm
Depth150 mm
SafetyEN-IEC 60335-1, EN-IEC 60335-2-29
EmissionEN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
ImmunityEN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2

Data sheet

Reference
SKI024100002
EAN13
8719076026259
Brand
Victron Energy
Product type
Battery charger
Battery voltage
24 V
Battery outputs
3
Charge current class
71+ A
Max. charge current
100 A
Absorption charge voltage
28.8 V
Float charge voltage
27.6 V
Charge algorithm
Adaptive, 7-stage
AC input voltage range
185-265 V
Parallel operation
Yes
Bluetooth (app)
No
Communication interfaces
NMEA 2000
VE.Can
Programmable relay
Yes
Protections
Output short-circuit, overtemperature, battery reverse polarity
Dimensions (H x W x D)
405 x 250 x 150 mm
Weight
7 kg
IP rating class
IP20-IP22 (indoor)
Ingress protection (IP)
IP21
Operating temperature
-20 ... 60 °C
Max. relative humidity
95 %
Colour
Blue
Material
Aluminium
Standards and compliance
EN-IEC 60335-1, EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
