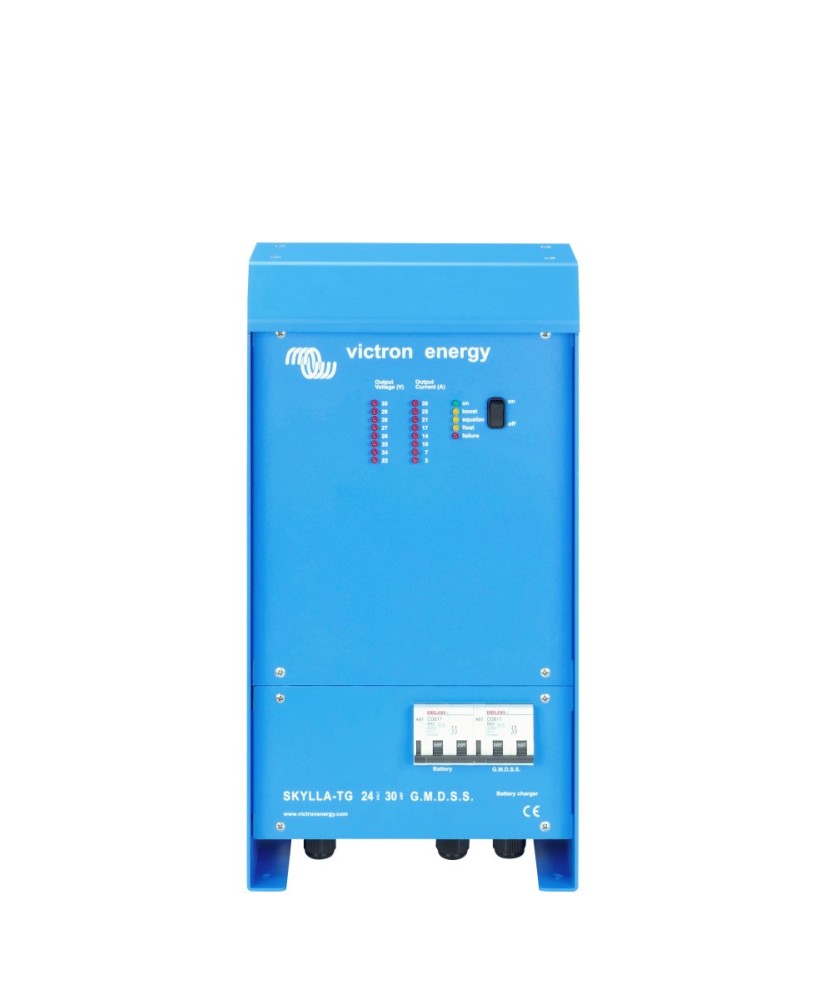

Skylla-TG 24/30 GMDSS 120-240V - Battery charger 24V 30A for GMDSS systems
Skylla-TG 24/30 GMDSS 120-240V is a 24 V battery charger with a nominal charge current of 30 A, designed for maritime GMDSS systems. Both the battery and the GMDSS system connect directly to the charger, while data and alarms are shown on the VE.Net GMDSS panel, ordered separately and linked by a standard eight-wire UTP cable.
Main features:
- Battery voltage: 24 V
- Charge current: 30 A (22 A at 110 V AC)
- AC input: 90-265 V, 45-65 Hz
- Battery controller: shows battery time to go during a blackout
- Maritime standard: IEC 60945
- Display: VE.Net GMDSS panel (separate)
The Victron Skylla-TG 24/30 and 24/50 GMDSS Chargers have been designed to provide all required monitoring and alarm data. Both the battery and the GMDSS system are connected directly to the charger. Data and alarms are displayed on a digital panel (VE.Net GMDSS panel, to be ordered separately). A standard eight wire UTP cable connects the charger to the panel.
Technical specifications
| Nominal battery voltage | 24 V |
|---|
| Nominal charge current | 30 A |
|---|
| AC input voltage | 120V or 230V |
|---|
| AC input voltage range | 90 … 265 V |
|---|
| AC input voltage (class) | 120 V - 240 V |
|---|
| AC input frequency range | 45 … 65 Hz |
|---|
| Number of charge outputs | 1 |
|---|
| Power factor | 1 |
|---|
| Absorption charge voltage | 38.5 V |
|---|
| Float charge voltage | 26.5 V |
|---|
| Charge current, main battery (110 VAC) | 22 A |
|---|
| Charge algorithm | IUoU, three stage charging |
|---|
| Temperature sensor | Included |
|---|
| Programmable | Settings can be changed via DIP switches and potentiometers |
|---|
| Can be used as power supply | Yes |
|---|
| Forced cooling | Yes |
|---|
| Protections | Output short-circuit, High battery voltage, Over temperature, Battery reverse polarity |
|---|
| Operating temperature range | -40 … 50 °C |
|---|
| Maximum humidity | 95 % |
|---|
| Material | Aluminium |
|---|
| Colour | Blue (RAL 5012) |
|---|
| Protection category | IP21 |
|---|
| Weight | 6 kg |
|---|
| Height | 485 mm |
|---|
| Width | 250 mm |
|---|
| Depth | 147 mm |
|---|
| Battery connection | Red and black 1.5 meter cable |
|---|
| AC connection | Three wire 2,5 mm² (AWG 6) cable Length: 2 m |
|---|
| GMDSS connection | One 1,5 m cable (+ to be taken directly from the battery) |
|---|
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29 |
|---|
| Emission | EN 55014-1, EN-IEC 61000-3-2 |
|---|
| Immunity | EN 55014-2, EN-IEC 61000-3-3 |
|---|
| Maritime standard | IEC 60945 |
|---|
