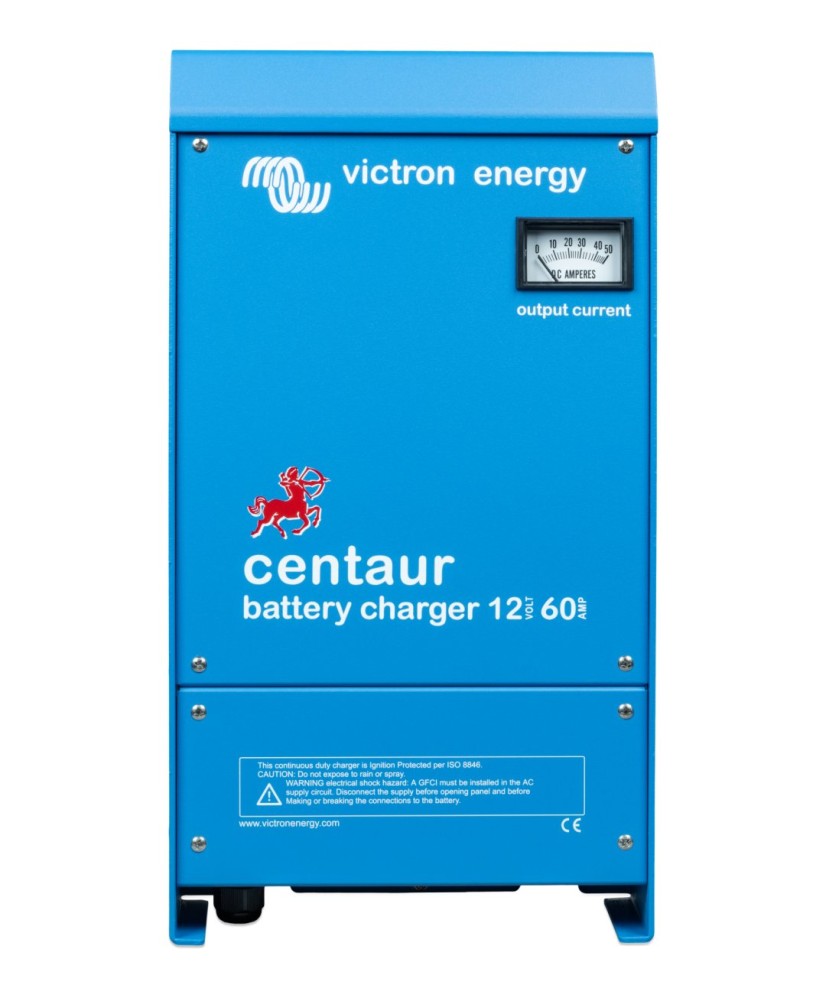

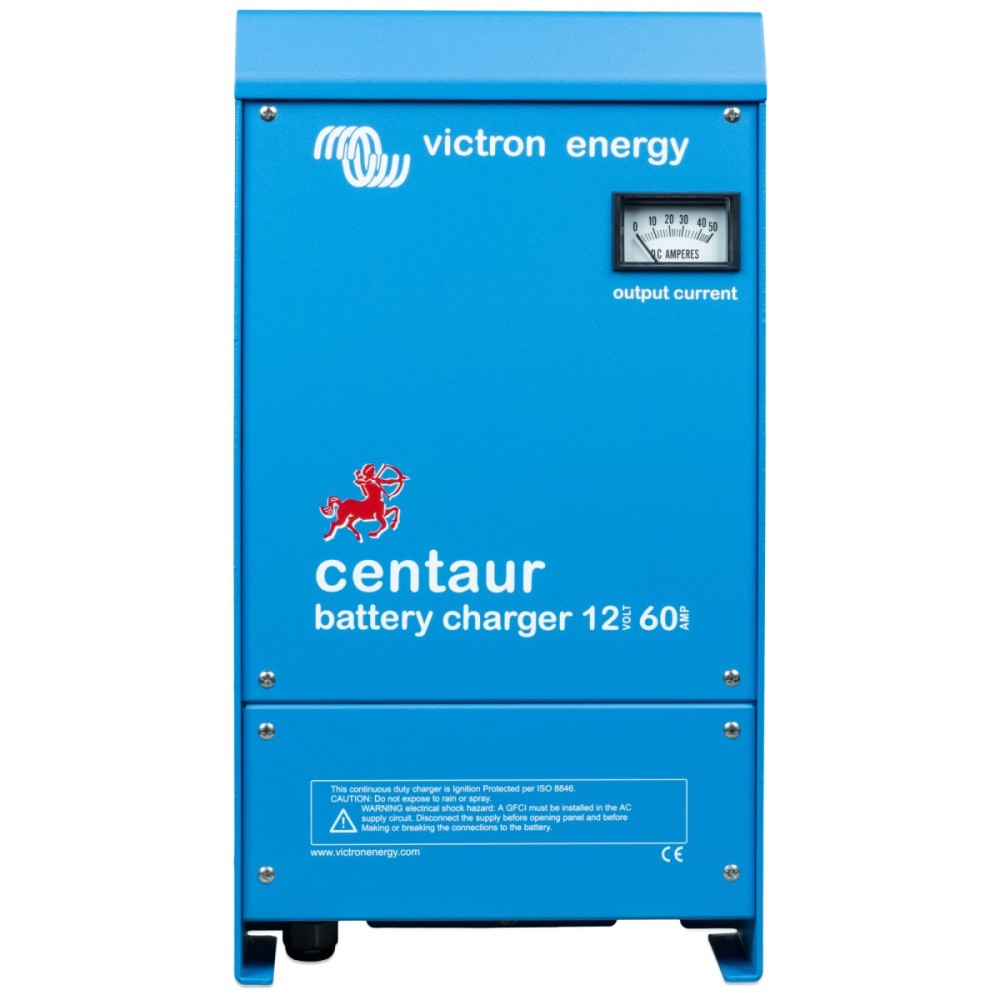

Centaur Charger 12/60(3) 120-240V Victron Energy
  • Centaur Charger 12/60(3) 120-240V Victron Energy
  • Centaur Charger 12/60(3) 120-240V Victron Energy
  • Centaur Charger 12/60(3) 120-240V Victron Energy
  • Centaur Charger 12/60(3) 120-240V Victron Energy

Centaur Charger 12/60(3) 120-240V Victron Energy

€652 Save €98
€554 Tax included

€462 Tax excluded

Centaur 12/60(3) 120-240V is a 12 V, 60 A battery charger with an auto-ranging 90-265 V AC, 50/60 Hz input that maintains full output across the whole range, so it can be used anywhere in the world. Automatic three-stage (IUoU) charging and three isolated outputs suit multi-battery installations, including large banks of 240-600 Ah.

Reference CCH012060000

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

Centaur 12/60(3) 120-240V - Battery charger 12V 60A

Centaur 12/60(3) 120-240V is a 12 V, 60 A battery charger with an auto-ranging 90-265 V AC, 50/60 Hz input that maintains full output across the whole range, so it can be used anywhere in the world. Automatic three-stage (IUoU) charging and three isolated outputs suit multi-battery installations, including large banks of 240-600 Ah.

Main features:

  • Charge output: 12 V, 60 A
  • Isolated outputs: 3, each capable of full rated current
  • Power supply: 90-265 V AC, 45-65 Hz, or 90-400 V DC
  • Charge algorithm: IUoU three-stage, temperature compensated
  • Absorption / float: 14.3 V / 13.5 V, DIP switch for flooded, Gel or AGM
  • Recommended capacity: 240-600 Ah

The Centaur range of battery chargers features auto-ranging input covering 90-265VAC 50/60Hz input meaning they can be used anywhere in the world.

Crucially, and unlike many other products that state universal input, the Centaur range will maintain full output power within the entire specified range. Other features include fully automatic three stage charge characteristic that ensures batteries are fully charged every time and three isolated charge outputs for multi battery configurations to suit the majority of typical installations.

The range spans 12V and 24V models from 16A through to 100A.

Technical specifications

Nominal battery voltage12 V
AC input voltage range90 … 265 V
AC input voltage (class)120 V - 240 V
DC input voltage range90 … 400 V
AC input frequency range45 … 65 Hz
Power factor1
Absorption charge voltage14.3 V
Float charge voltage13.5 V
Number of charge outputs3
Nominal charge current60 A
Output ammeterYes
Charge algorithmIUoU, three stage charging
Recommended battery capacity240 … 600 Ah
Temperature sensorInternal
Temperature compensation-12 mV/°C
ProgrammableCharge voltages selectable via DIP switches
Forced coolingYes
ProtectionsOutput short-circuit, Over temperature
Operating temperature range-20 … 60 °C
Output temperature deratingUp to 40°C (100°F) ambient. Output will reduce to approximately 80% of nominal at 50°C (120°F) and 60% of nominal at 60°C (140°F).
Ignition protectedYes
Maximum humidity95 %
AC connection terminalsscrew-clamp 4 mm² (AWG 6)
Battery connection terminalsM8 bolts
MaterialAluminium
ColourBlue (RAL 5012)
Protection categoryIP20
Weight5 kg
Height437 mm
Width239 mm
Depth110 mm
SafetyEN-IEC 60335-1, EN-IEC 60335-2-29, UL 1236
Emission and immunityEN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3

Data sheet

Reference
CCH012060000
EAN13
8719076021513
Brand
Victron Energy
Product type
Battery charger
Battery voltage
12 V
Battery outputs
3
Charge current class
41-70 A
Max. charge current
60 A
Absorption charge voltage
14.3 V
Float charge voltage
13.5 V
Charge algorithm
Adaptive, 3-stage (IUoU)
AC input voltage range
90-265 V
Bluetooth (app)
No
Protections
Output short-circuit, overtemperature
Dimensions (H x W x D)
437 x 239 x 110 mm
Weight
5 kg
IP rating class
IP20-IP22 (indoor)
Ingress protection (IP)
IP20
Operating temperature
-20 ... 60 °C
Max. relative humidity
95 %
Colour
Blue
Material
Aluminium
Standards and compliance
EN-IEC 60335-1, EN 55014-1, EN 55014-2, EN-IEC 61000-3-2

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
