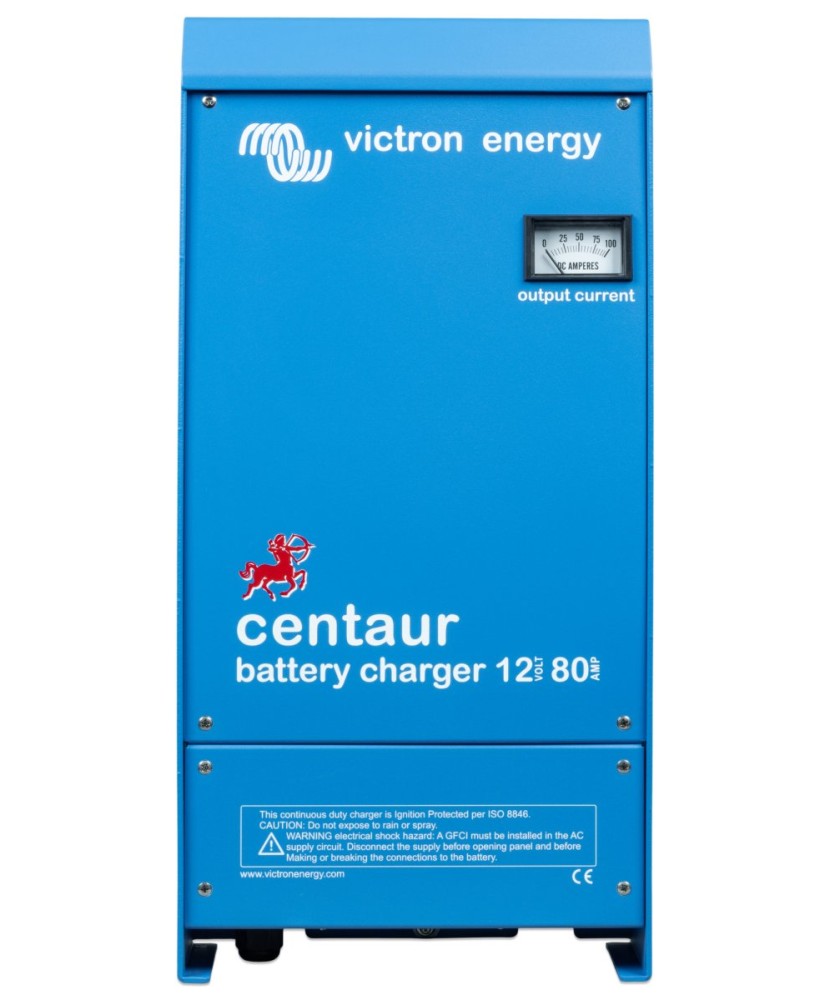

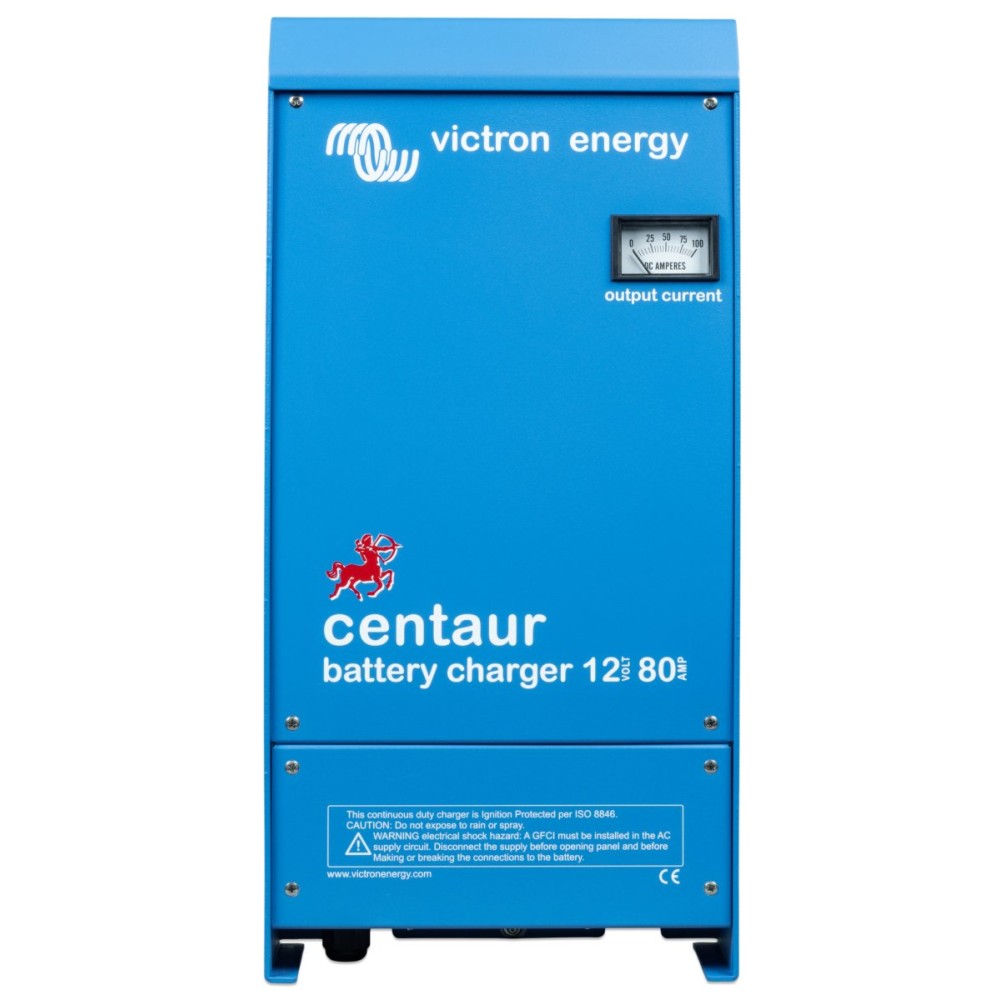

Centaur 12/80(3) 120-240V - Battery charger 12V 80A
Centaur 12/80(3) 120-240V is a 12 V, 80 A battery charger with an auto-ranging 90-265 V AC, 50/60 Hz input that maintains full output across the whole range, so it can be used anywhere in the world. Automatic three-stage (IUoU) charging and three isolated outputs suit multi-battery installations, including large banks of 320-800 Ah.
Main features:
- Charge output: 12 V, 80 A
- Isolated outputs: 3, each capable of full rated current
- Power supply: 90-265 V AC, 45-65 Hz, or 90-400 V DC
- Charge algorithm: IUoU three-stage, temperature compensated
- Battery types: flooded, Gel or AGM, selectable via DIP switch
- Recommended capacity: 320-800 Ah
The Centaur range of battery chargers features auto-ranging input covering 90-265VAC 50/60Hz input meaning they can be used anywhere in the world.
Crucially, and unlike many other products that state universal input, the Centaur range will maintain full output power within the entire specified range. Other features include fully automatic three stage charge characteristic that ensures batteries are fully charged every time and three isolated charge outputs for multi battery configurations to suit the majority of typical installations.
The range spans 12V and 24V models from 16A through to 100A.
Technical specifications
| Nominal battery voltage | 12 V |
|---|
| AC input voltage range | 90 … 265 V |
|---|
| AC input voltage (class) | 120 V - 240 V |
|---|
| DC input voltage range | 90 … 400 V |
|---|
| AC input frequency range | 45 … 65 Hz |
|---|
| Power factor | 1 |
|---|
| Absorption charge voltage | 13.4 V |
|---|
| Float charge voltage | 13.5 V |
|---|
| Number of charge outputs | 3 |
|---|
| Nominal charge current | 80 A |
|---|
| Output ammeter | Yes |
|---|
| Charge algorithm | IUoU, three stage charging |
|---|
| Recommended battery capacity | 320 … 800 Ah |
|---|
| Temperature sensor | Internal |
|---|
| Temperature compensation | -12 mV/°C |
|---|
| Programmable | Charge voltages selectable via DIP switches |
|---|
| Forced cooling | Yes |
|---|
| Protections | Output short-circuit, Over temperature |
|---|
| Operating temperature range | -20 … 60 °C |
|---|
| Output temperature derating | Up to 40°C (100°F) ambient. Output will reduce to approximately 80% of nominal at 50°C (120°F) and 60% of nominal at 60°C (140°F). |
|---|
| Ignition protected | Yes |
|---|
| Maximum humidity | 95 % |
|---|
| AC connection terminals | screw-clamp 4 mm² (AWG 6) |
|---|
| Battery connection terminals | M8 bolts |
|---|
| Material | Aluminium |
|---|
| Colour | Blue (RAL 5012) |
|---|
| Protection category | IP20 |
|---|
| Weight | 12 kg |
|---|
| Height | 514 mm |
|---|
| Width | 252 mm |
|---|
| Depth | 123 mm |
|---|
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, UL 1236 |
|---|
| Emission and immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3 |
|---|
