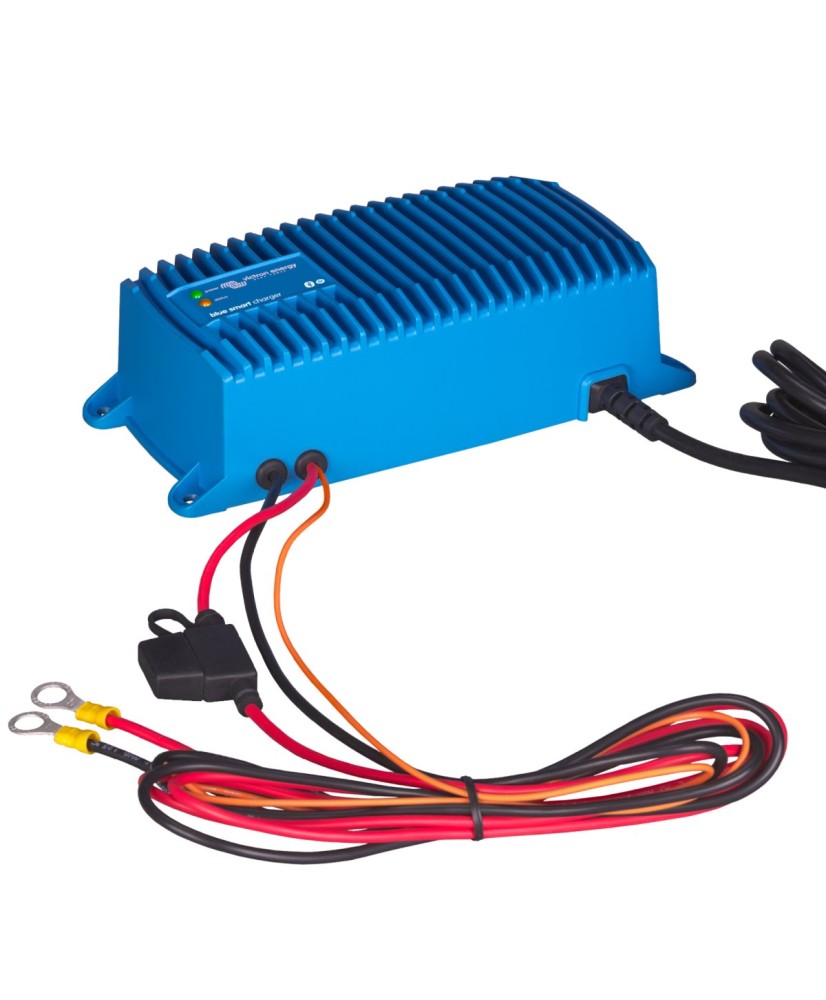

Blue Smart IP67 24/12(1+si) 230V CEE 7/7 - Waterproof battery charger 24V
Blue Smart IP67 24/12(1+si) 230V CEE 7/7 is a 24 V battery charger with built-in Bluetooth, housed in a sealed aluminium enclosure rated IP67. It supplies 12 A (4 A in low mode) with an adaptive 5-stage algorithm compatible with lithium batteries, and suits workshops, cars, motorbikes, boats and camper vans. Its start interrupt output prevents the engine from being started while the charger is connected.
Main features:
- Charge output: 24 V, 12 A, low mode 4 A
- Start interrupt output: prevents engine start while plugged in, 0.5 A limit
- Charge algorithm: adaptive 5-stage, lithium compatible, recovers batteries from 0 V
- Efficiency: 96 %
- Connectivity: built-in Bluetooth for monitoring, settings and updates
- Protection rating: IP67, fully encapsulated, shockproof and ignition protected
The Blue Smart IP67 Waterproof Charger is a professional battery charger with built-in Bluetooth. The Blue Smart IP67 Waterproof Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
Technical specifications
| Nominal battery voltage | 24 V |
|---|
| Nominal charge current | 12 A |
|---|
| Charge current (low mode) | 4 A |
|---|
| AC input voltage range | 180 … 265 VAC |
|---|
| AC input voltage (class) | 230 V |
|---|
| AC input frequency range | 45 … 65 Hz |
|---|
| Number of charge outputs | 1 |
|---|
| Efficiency | 96 % |
|---|
| No-load power consumption | 0.5 W |
|---|
| Absorption charge voltage | Normal: 28.8V High: 29.4V Lithium: 28.4V |
|---|
| Float charge voltage | Normal: 27.6V High: 27.6V Li-ion: 27.0V |
|---|
| Storage charge voltage | Normal: 26.4V High: 26.4V Li-ion: 27.0V |
|---|
| Charge algorithm | Adaptive, 5-stage |
|---|
| Lithium compatible | Yes |
|---|
| Bluetooth | Yes |
|---|
| Communication ports | Bluetooth |
|---|
| Can be used as power supply | Yes |
|---|
| Protections | Battery reverse polarity (fuse), Output short-circuit, Over temperature |
|---|
| Programmable | Yes |
|---|
| Operating temperature range | -30 … 60 °C |
|---|
| Full rated output up to | 40 °C |
|---|
| Derating above 40 °C | 3 % |
|---|
| Maximum humidity | 100 % |
|---|
| Starter battery output | Short circuit proof, 1V below main output, 0.5A current limit |
|---|
| AC connection terminals | Cable of 1.5 meter with BS 1363 plug (UK) |
|---|
| Battery connection terminals | Red and black 1.5 meter cable with M8 eyelets |
|---|
| Material | Aluminium |
|---|
| Colour | Blue (RAL 5012) |
|---|
| Protection category | IP67 |
|---|
| Weight | 2.4 kg |
|---|
| Height | 99 mm |
|---|
| Width | 219 mm |
|---|
| Depth | 65 mm |
|---|
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29 |
|---|
| Emission | EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3 |
|---|
| Immunity | EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
|---|
