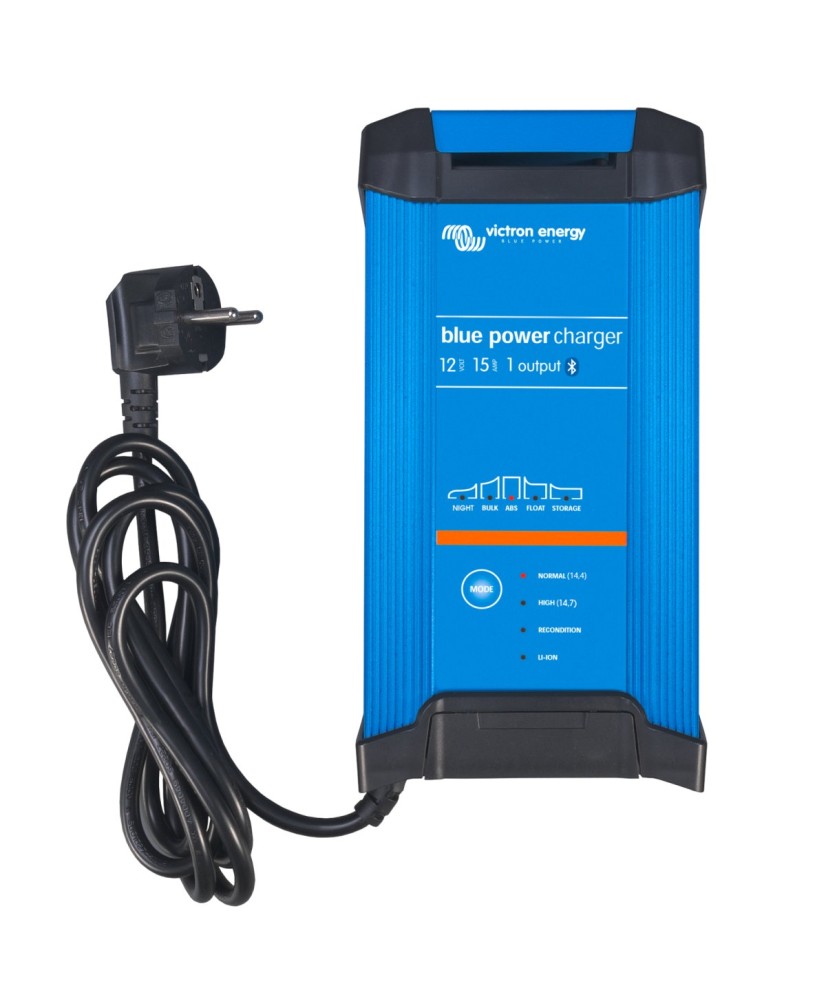

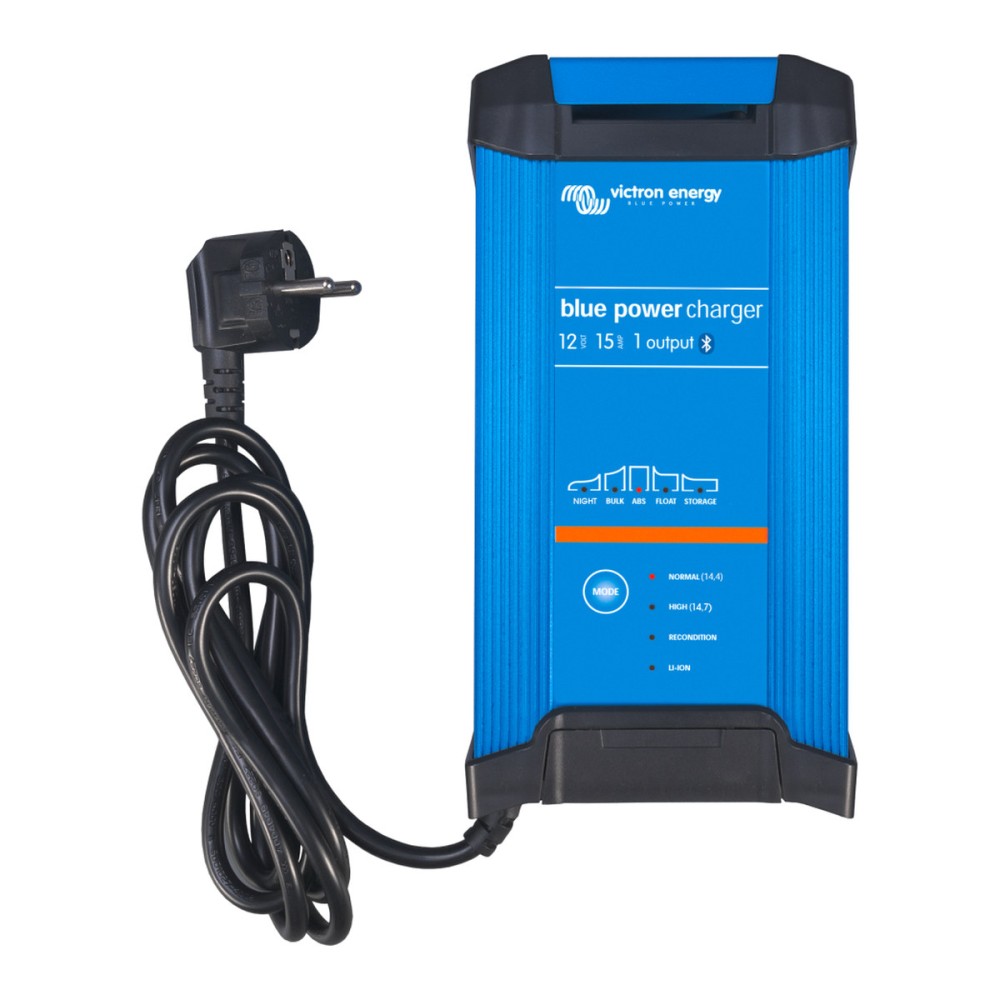

Blue Smart IP22 Charger 12/15(1) 230V CEE 7/7 Victron Energy
  • Blue Smart IP22 Charger 12/15(1) 230V CEE 7/7 Victron Energy
  • Blue Smart IP22 Charger 12/15(1) 230V CEE 7/7 Victron Energy
  • Blue Smart IP22 Charger 12/15(1) 230V CEE 7/7 Victron Energy

Charger Victron Energy Blue Smart IP22 12/15 (1) 230 V CEE 7/7

€162 Save €25
€137 Tax included

€114 Tax excluded

Blue Smart IP22 12/15(1) 230V CEE 7/7 is a 12 V smart battery charger with built-in Bluetooth, with one output and up to 15 A charge current, using an adaptive 6-stage algorithm. It is intended for indoor installation in the workshop, camper vans or boats, and accepts the optional Smart Battery Sense for temperature compensation.

Reference BPC121542002

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

Blue Smart IP22 12/15(1) 230V CEE 7/7 - Smart battery charger 12V

Blue Smart IP22 12/15(1) 230V CEE 7/7 is a 12 V smart battery charger with built-in Bluetooth, with one output and up to 15 A charge current, using an adaptive 6-stage algorithm. It is intended for indoor installation in the workshop, camper vans or boats, and accepts the optional Smart Battery Sense for temperature compensation.

Main features:

  • Battery voltage: 12 V
  • Charge current: 15 A, silent NIGHT/LOW mode 7.5 A
  • Charge algorithm: adaptive 6-stage, lithium compatible, recovers batteries from 0 V
  • AC input: 230 V AC, CEE 7/7 plug
  • Connectivity: Bluetooth, VE.Smart Networking, up to 10 chargers in parallel
  • Temperature sensor: optional, Smart Battery Sense

The Blue Smart IP22 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.

Technical specifications

Nominal battery voltage12 V
Nominal charge current15 A
Charge current (low mode)7.5 A
AC input voltage (class)230 V
AC input frequency range45 … 65 Hz
Efficiency93 %
No-load power consumption0.5 W
Number of charge outputs1
Absorption charge voltageNormal: 14.4V High: 14.7V Lithium: 14.2V
Float charge voltageNormal: 13.8V High: 13.8V Li-ion: 13.5V
Storage charge voltageNormal: 13.2V High: 13.2V Li-ion: 13.5V
Charge algorithmAdaptive, 6-stage
Lithium compatibleYes
BluetoothYes
Temperature compensation-16 mV/°C
Temperature sensorOptional (Smart Battery Sense)
Forced coolingYes
Communication portsBluetooth
Can be used as power supplyYes
ProtectionsBattery reverse polarity (fuse), Output short-circuit, Over temperature
ProgrammableYes
Operating temperature range-20 … 50 °C
Maximum humidity98 %
AC connection terminalsCable of 1.5 meter with CEE 7/7 plug
Battery connection terminalsScrew terminals 16 mm² (6 AWG)
MaterialAluminium
ColourBlue (RAL 5012)
Protection categoryIP22
Weight1.3 kg
Height235 mm
Width108 mm
Depth65 mm
SafetyEN-IEC 60335-1, EN-IEC 60335-2-29
EmissionEN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
ImmunityEN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Automotive directiveECE R10-5

Data sheet

Reference
BPC121542002
EAN13
8719076037415
Brand
Victron Energy
Product type
Battery charger
Maximum efficiency
93 %
Zero-load power
0.5 W
Battery voltage
12 V
Battery outputs
1
Charge current class
11-20 A
Max. charge current
15 A
Absorption charge voltage
14.4 V
Float charge voltage
13.8 V
Charge algorithm
Adaptive, 6-stage
AC input voltage range
180-265 V
Parallel operation
Yes
Bluetooth (app)
Yes
Communication interfaces
Bluetooth
Protections
Output short-circuit, overtemperature, battery reverse polarity
Dimensions (H x W x D)
235 x 108 x 65 mm
Weight
1.3 kg
IP rating class
IP20-IP22 (indoor)
Ingress protection (IP)
IP22
Operating temperature
-40 ... 60 °C
Max. relative humidity
98 %
Colour
Blue
Material
Aluminium
Standards and compliance
EN-IEC 60335-1, ECE R10-5, EN 55014-1, EN-IEC 61000-3-2

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
