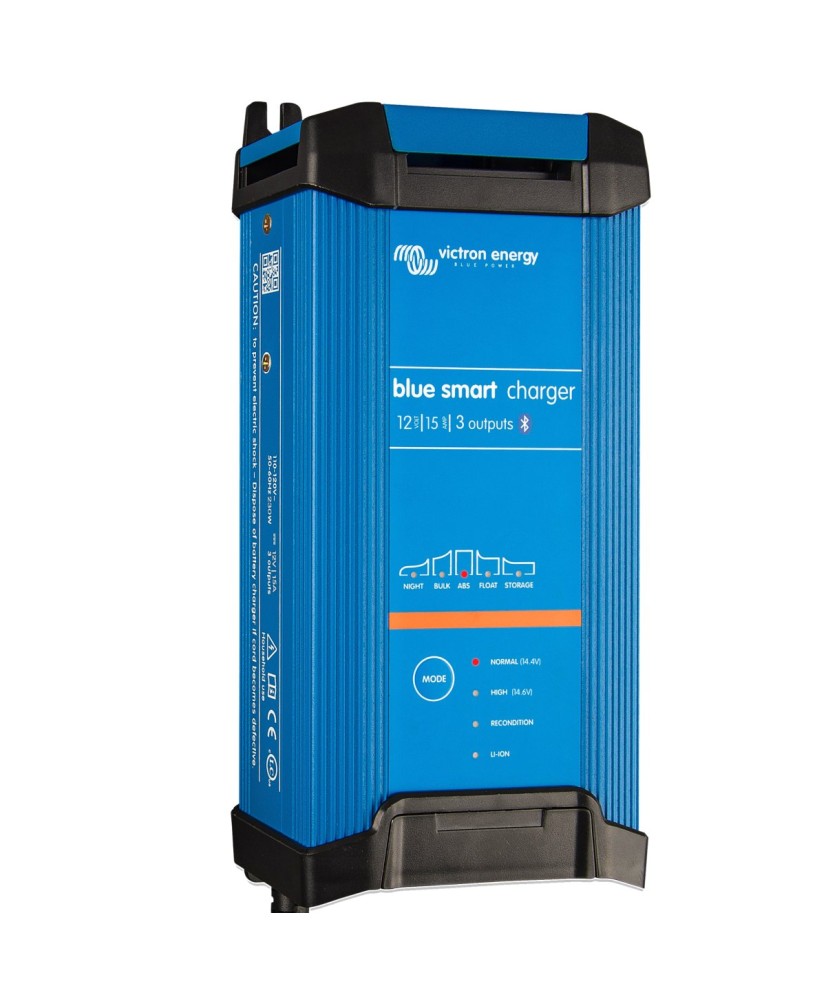

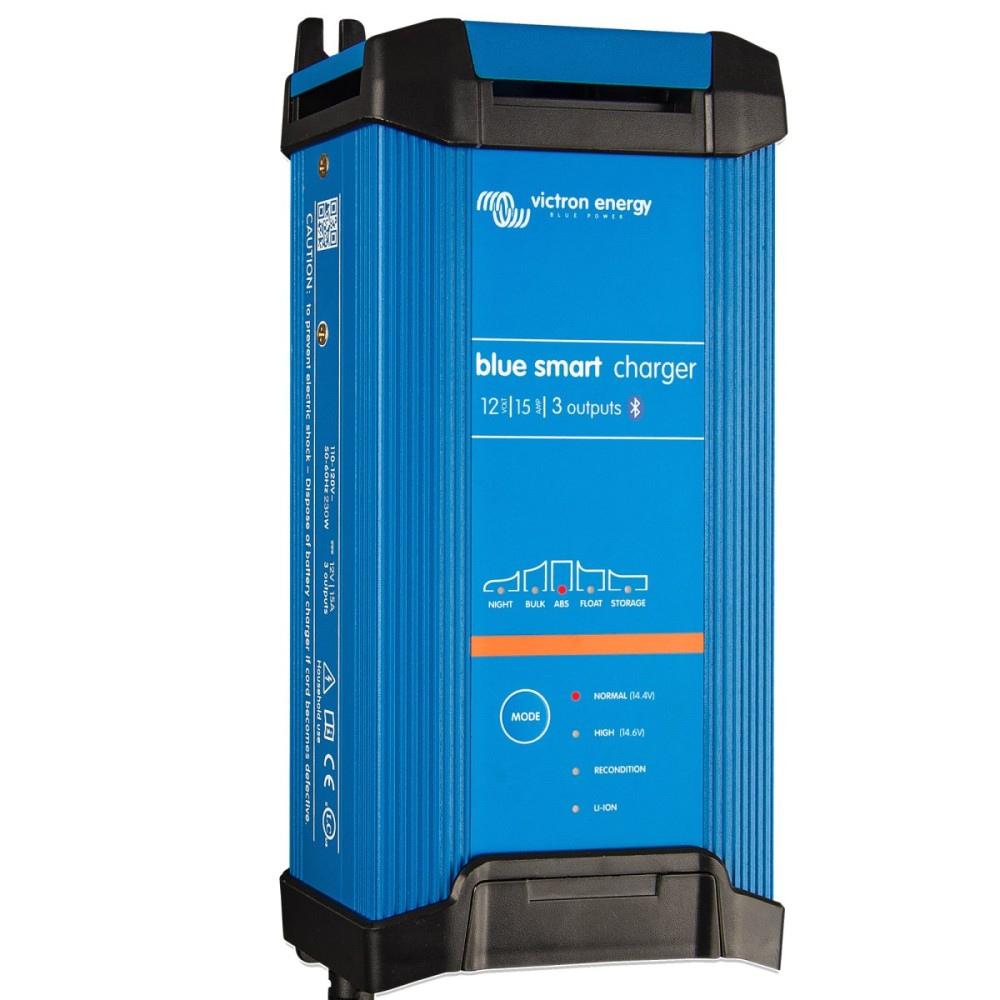

Blue Smart IP22 12/15(3) 230V CEE 7/7 - Smart battery charger 12V
Blue Smart IP22 12/15(3) 230V CEE 7/7 is a 12 V smart battery charger with built-in Bluetooth, with three outputs for up to three batteries and up to 15 A charge current, using an adaptive 6-stage algorithm. It is intended for indoor installation in the workshop, camper vans or boats, and accepts the optional Smart Battery Sense for temperature compensation.
Main features:
- Battery voltage: 12 V
- Charge current: 15 A, silent NIGHT/LOW mode 7.5 A
- Charge outputs: 3
- Charge algorithm: adaptive 6-stage, lithium compatible, recovers batteries from 0 V
- AC input: 230 V AC, CEE 7/7 plug
- Connectivity: Bluetooth, VE.Smart Networking, up to 10 chargers in parallel
The Blue Smart IP22 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
Technical specifications
| Nominal battery voltage | 12 V |
|---|
| Nominal charge current | 15 A |
|---|
| Charge current (low mode) | 7.5 A |
|---|
| AC input voltage (class) | 230 V |
|---|
| AC input frequency range | 45 … 65 Hz |
|---|
| Efficiency | 93 % |
|---|
| No-load power consumption | 0.5 W |
|---|
| Number of charge outputs | 3 |
|---|
| Absorption charge voltage | Normal: 14.4V High: 14.7V Lithium: 14.2V |
|---|
| Float charge voltage | Normal: 13.8V High: 13.8V Li-ion: 13.5V |
|---|
| Storage charge voltage | Normal: 13.2V High: 13.2V Li-ion: 13.5V |
|---|
| Charge algorithm | Adaptive, 6-stage |
|---|
| Lithium compatible | Yes |
|---|
| Bluetooth | Yes |
|---|
| Temperature compensation | -16 mV/°C |
|---|
| Temperature sensor | Optional (Smart Battery Sense) |
|---|
| Forced cooling | Yes |
|---|
| Communication ports | Bluetooth |
|---|
| Can be used as power supply | Yes |
|---|
| Protections | Battery reverse polarity (fuse), Output short-circuit, Over temperature |
|---|
| Programmable | Yes |
|---|
| Operating temperature range | -20 … 50 °C |
|---|
| Maximum humidity | 98 % |
|---|
| AC connection terminals | Cable of 1.5 meter with CEE 7/7 plug |
|---|
| Battery connection terminals | Screw terminals 16 mm² (6 AWG) |
|---|
| Material | Aluminium |
|---|
| Colour | Blue (RAL 5012) |
|---|
| Protection category | IP22 |
|---|
| Weight | 1.3 kg |
|---|
| Height | 235 mm |
|---|
| Width | 108 mm |
|---|
| Depth | 65 mm |
|---|
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29 |
|---|
| Emission | EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3 |
|---|
| Immunity | EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
|---|
| Automotive directive | ECE R10-5 |
|---|
