€411 Tax excluded

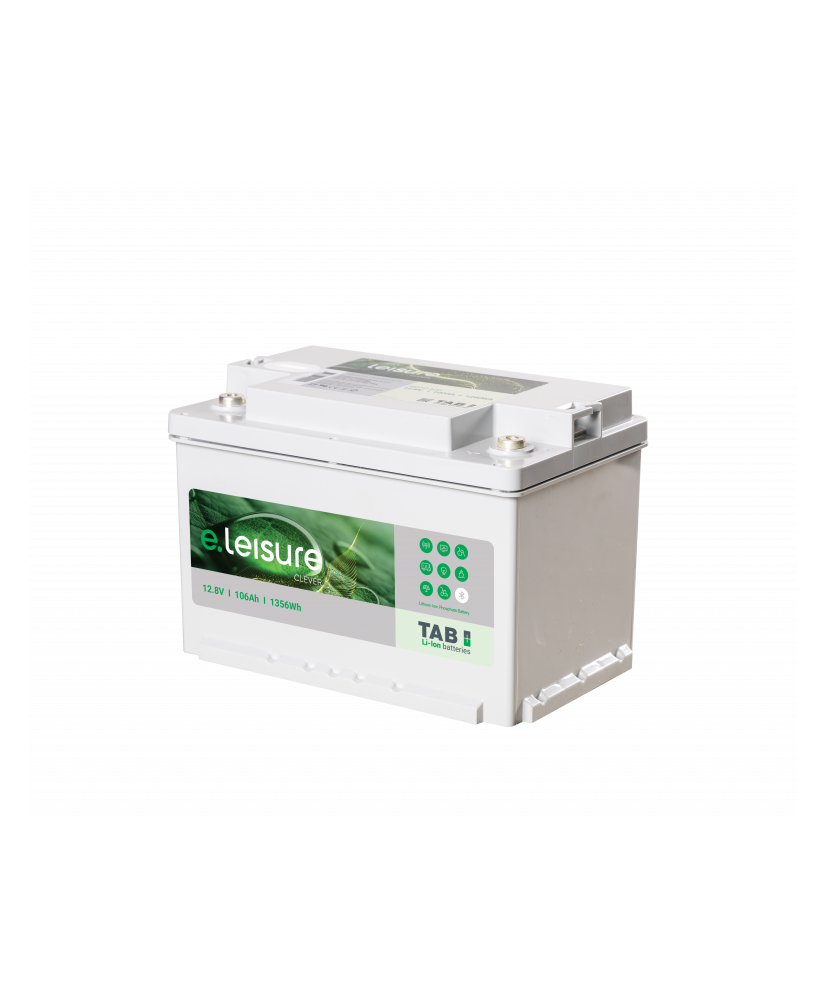

This battery is designed for budget-conscious users who want to monitor key data in real time via Bluetooth using the TAB Li-Ion Batteries app. Ideal for various applications, it ensures full efficiency and safety. With an extended lifespan, it offers a reliable and cost-effective energy solution.
| Rated voltage | 12 V |
| Capacity @ 0.5C 25°C | 106 Ah |
| Cells configuration | 4S1P |
| Nominal voltage | 12.8 V |
| Max voltage | 14.6 V |
| Min voltage | 11.2 V |
| Min voltage - cut off | 10 V |
| Charge voltage | 14.2V-14.6 V |
| Energy | 1356 Wh |
| Max continuous charging current | 100 A |
| Max continuous discharge current | 100 A |
| Peak current (10 seconds) - charge/discharge | 200 A |
| Operating temperature charge | -20°C ~ 55°C |
| Operating temperature discharge | -20°C ~ 55°C |
| Storage temperature (short term) | -20°C ~ 60°C |
| Storage temperature (long term) | 0°C ~ 35°C |
| SoC Display Solution | Mobile App |
| Communication | Bluetooth |
| Expected lifetime | 6000 cycles @25°C |
| Dimensions | 278 x 175 x 190 mm (DIN H6/LN3) |
| Weight | 11 kg |
| Case material | PC/ABS NH-1015 |
| IP protection | IP65 |
| Cell type | Prismatic |
| Cell Chemistry | LiFePO4 |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the manufacturer’s datasheet.
Compatibility is calculated automatically from the manufacturers’ technical data and is for information only. For complex systems, we recommend having the configuration checked by a consultant before ordering. Details in the Terms and conditions
